Part Number
9G3695
PLUG
Category: — | Fits: 3512, 330C, 325C, 3306, 3516, G3508, G3608, G3612, G3616, 320C
List Price
$0.26
Direct Replacement Parts (Compatible Models)
暂无配套厂替代件记录, Contact us
Stock Status Available (Contact for Inquiry)
Fits Equipment Models (12)

CAT 9G3695 PLUG fits Caterpillar 320C, 325C, 3306, 330C, 3512, 3516 and 6 more models. Available for order at WSTPARTS.

135-3086-8288
WeChat: 135-3002-9789 / 135-3086-8288
Business days 8:00–18:00
×

Share This Page

Scan the QR code to share this page

Or copy the link below:

CAT 9G3695 PLUG for 3512 Caterpillar Part - WSTPARTS

WSTPARTS supplies the 9G3695 PLUG, a CAT Electrical System replacement part designed for Caterpillar 3512, 330C and 325C applications. It is categorized under Electrical System. Every unit is fitment-verified before dispatch. Manual reference: 325C: ELECTRICAL AND STARTING SYSTEM, group 167-3457, page 296; 3306: ELECTRICAL AND STARTING SYSTEM, group 171-5349, page 1199.

9G3695 PLUG for Caterpillar 3512 — Genuine CAT & Replacement Part

WSTPARTS supplies genuine CAT and OEM-equivalent direct-replacement PLUG (Part # 9G3695). Designed for CAT 3512, 330C, 325C, 3306, 3516, G3508, G3608, G3612, G3616, 320C equipment.

Compatible Models

Key Features

  • ✔ 100% compatible with CAT 3512, 330C, 325C, 3306, 3516, G3508, G3608, G3612, G3616, 320C
  • ✔ Meets Caterpillar original quality and performance standards
  • ✔ Genuine CAT lines: New Genuine / Cat Reman / Cat Classic | OEM-equivalent direct replacements
  • ✔ Available for order, contact for lead time

Specifications

Part Number (MPN)9G3695
Product NamePLUG
BrandCAT
Applicable Models3512, 330C, 325C, 3306, 3516, G3508, G3608, G3612, G3616, 320C
Weight0.05 kg
ConditionNew (Genuine CAT / OEM-equivalent direct replacement)
Warranty12 Months

Where This Part Fits

Every row below is a real listing of 9G3695 in the Caterpillar parts manual: the machine it is published under, the system it belongs to, the group number and the manual page. Use it to confirm the part against your own parts book before ordering.

Machine System Group No. Manual Page
325C ELECTRICAL AND STARTING SYSTEM 167-3457 p.296
3306 ELECTRICAL AND STARTING SYSTEM 171-5349 p.1199
330C ELECTRICAL AND STARTING SYSTEM 167-3457 p.278
3512 FUEL SYSTEM 173-1800 p.734
3516 ELECTRICAL AND STARTING SYSTEM 454-7489 p.597
3516B ELECTRICAL AND STARTING SYSTEM 237-9017 p.651
C15 ELECTRICAL AND STARTING SYSTEM 379-0919 p.220
G3508 ELECTRICAL AND STARTING SYSTEM 108-6424 p.609

System Notes — ELECTRICAL AND STARTING SYSTEM

The electrical and starting system covers the battery, starter motor, alternator, wiring harness, relays, switches and the instrument panel. It carries current from the batteries to the starter to crank the engine, and from the alternator back to keep the batteries charged. Because these machines work in dust, vibration and wide temperature swings, connectors corrode, harness insulation chafes against the frame, and starter solenoids burn out from repeated short cranks. Parts in this group are usually replaced on a symptom basis — slow cranking, a dash warning, lights that dim under load, or a no-start condition traced to an open circuit.

System Notes — FUEL SYSTEM

The fuel system covers the injection pump, injectors, fuel transfer pump, filters and water separator, lines and the tank. It meters and atomises diesel at the precise moment and quantity the engine needs. Modern CAT engines run very tight injector tolerances, so the group is sensitive to water and dirt: a worn injector dribbles instead of atomising, causing rough idle, white smoke and diluted oil, while a clogged filter starves the pump under load. Parts here are replaced when the engine misfires, smokes, loses power under load, or when the water separator keeps tripping — always after the fuel quality itself has been ruled out.

FAQ

Is 9G3695 the right part for my machine?
Match the part number on your old part, or send us your equipment serial number — WSTPARTS verifies fitment free of charge for CAT 3512.

Genuine CAT vs direct replacement — what is the difference?
Genuine CAT covers three factory lines: New Genuine, Cat Reman (core exchange with core charge) and Cat Classic (brand-new economy line). OEM-equivalent direct replacements are non-CAT parts; grade and warranty are confirmed in the quotation.

Stock, shipping and warranty?
Lead time confirmed on request; we quote the fastest available option. Every order is covered by a warranty per quotation.

📞 Get a Quote: Contact the WSTPARTS parts team | Email: cat@wstparts.com

Frequently Asked Questions
What equipment does 9G3695 fit?
CAT 9G3695 PLUG fits 12 Caterpillar equipment models including 320C, 325C, 3306, 330C, 3512, verified against Caterpillar parts manuals and confirmed orders.
Where is 9G3695 listed in the Caterpillar parts manual?
9G3695 is listed in the Caterpillar parts manual under 325C, ELECTRICAL AND STARTING SYSTEM, group 167-3457, page 296.
How can I order 9G3695?
Add 9G3695 to the inquiry cart, or send us your machine model and serial number — we verify the part number before dispatch.

Parts Diagram325C

Select model:
100%

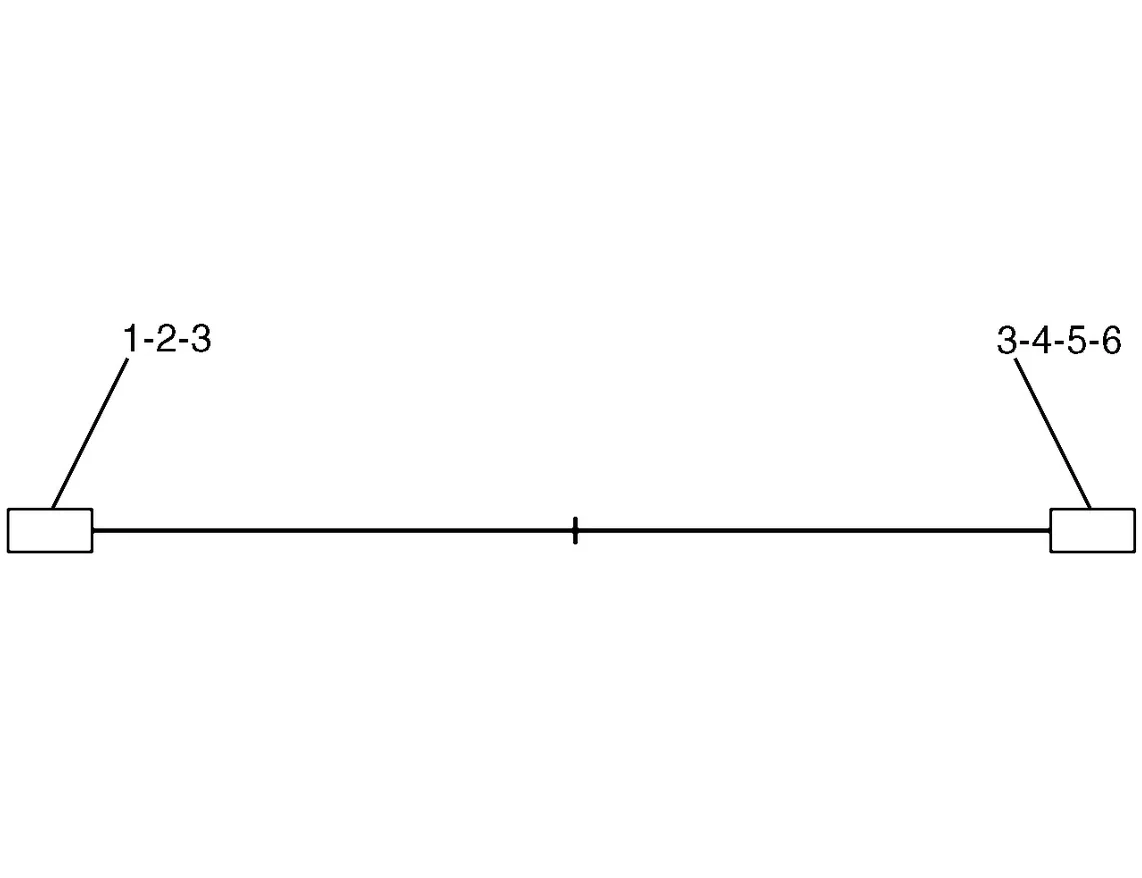

325C · ELECTRICAL AND STARTING SYSTEM · 167-3457 CAT parts diagram
Scroll to zoom · Drag to pan
Sel 0
29G-3695PLUG
39W-0844SOCKET
