Part Number
5P8500
KEY
Category: — | Fits: C18, 345B, C15, 3126B, 365B, C13, C27, C7, C9, 320C, 330C
List Price
$2.92
Direct Replacement Parts (Compatible Models)
暂无配套厂替代件记录, Contact us
Stock Status In Stock
Fits Equipment Models (12)· Washer

CAT 5P8500 KEY fits Caterpillar 3126B, 320C, 330C, 336D, 345B, 365B and 6 more models. Available for order at WSTPARTS.

135-3086-8288
WeChat: 135-3002-9789 / 135-3086-8288
Business days 8:00–18:00
×

Share This Page

Scan the QR code to share this page

Or copy the link below:

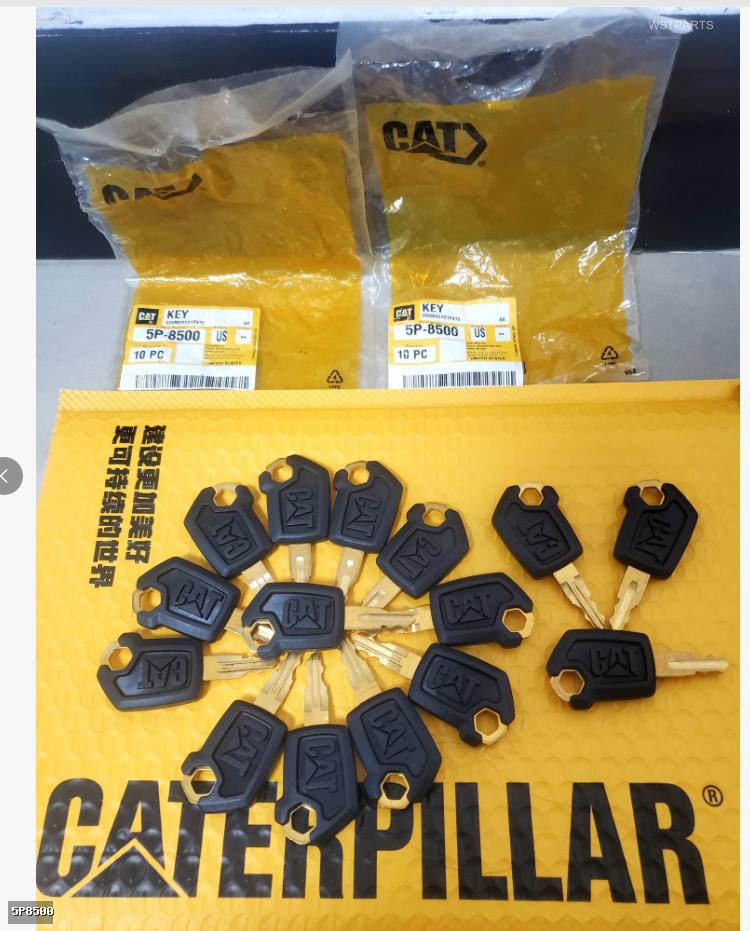

CAT 5P8500 KEY for C18 Caterpillar Part - WSTPARTS

Need a dependable replacement part for your Caterpillar C18, 345B and C15 machine? The 5P8500 KEY from WSTPARTS is manufactured to OEM-grade tolerances. Every unit is fitment-verified before dispatch, backed by factory-direct pricing and warranty coverage, and currently in stock for dispatch within 24 hours. Manual reference: 3126B: ELECTRICAL AND STARTING SYSTEM, group 133-3329, page 521; 330C: FUEL SYSTEM, group 184-9065, page 175.

5P8500 KEY for Caterpillar C18 — Genuine CAT & Replacement Part

WSTPARTS supplies genuine CAT and OEM-equivalent direct-replacement KEY (Part # 5P8500). Designed for CAT C18, 345B, C15, 3126B, 365B, C13, C27, C7, C9, 320C, 330C equipment.

Compatible Models

Key Features

  • ✔ 100% compatible with CAT C18, 345B, C15, 3126B, 365B, C13, C27, C7, C9, 320C, 330C
  • ✔ Meets Caterpillar original quality and performance standards
  • ✔ Genuine CAT lines: New Genuine / Cat Reman / Cat Classic | OEM-equivalent direct replacements
  • ✔ In stock, ready to ship

Specifications

Part Number (MPN)5P8500
Product NameKEY
Part TypeWasher
BrandCAT
Packing Specification8×3×0.1 in
Applicable ModelsC18, 345B, C15, 3126B, 365B, C13, C27, C7, C9, 320C, 330C
Weight0.05 kg
ConditionNew (Genuine CAT / OEM-equivalent direct replacement)
Warranty12 Months

Where This Part Fits

Every row below is a real listing of 5P8500 in the Caterpillar parts manual: the machine it is published under, the system it belongs to, the group number and the manual page. Use it to confirm the part against your own parts book before ordering.

Machine System Group No. Manual Page
3126B ELECTRICAL AND STARTING SYSTEM 133-3329 p.521
330C FUEL SYSTEM 184-9065 p.175
336D FUEL SYSTEM 314-3708 p.144
345B FUEL SYSTEM 112-0665 p.128
365B FUEL SYSTEM 138-5277 p.113
C13 OPERATOR STATION 266-2297 p.732
C15 ELECTRICAL AND STARTING SYSTEM 269-4756 p.875

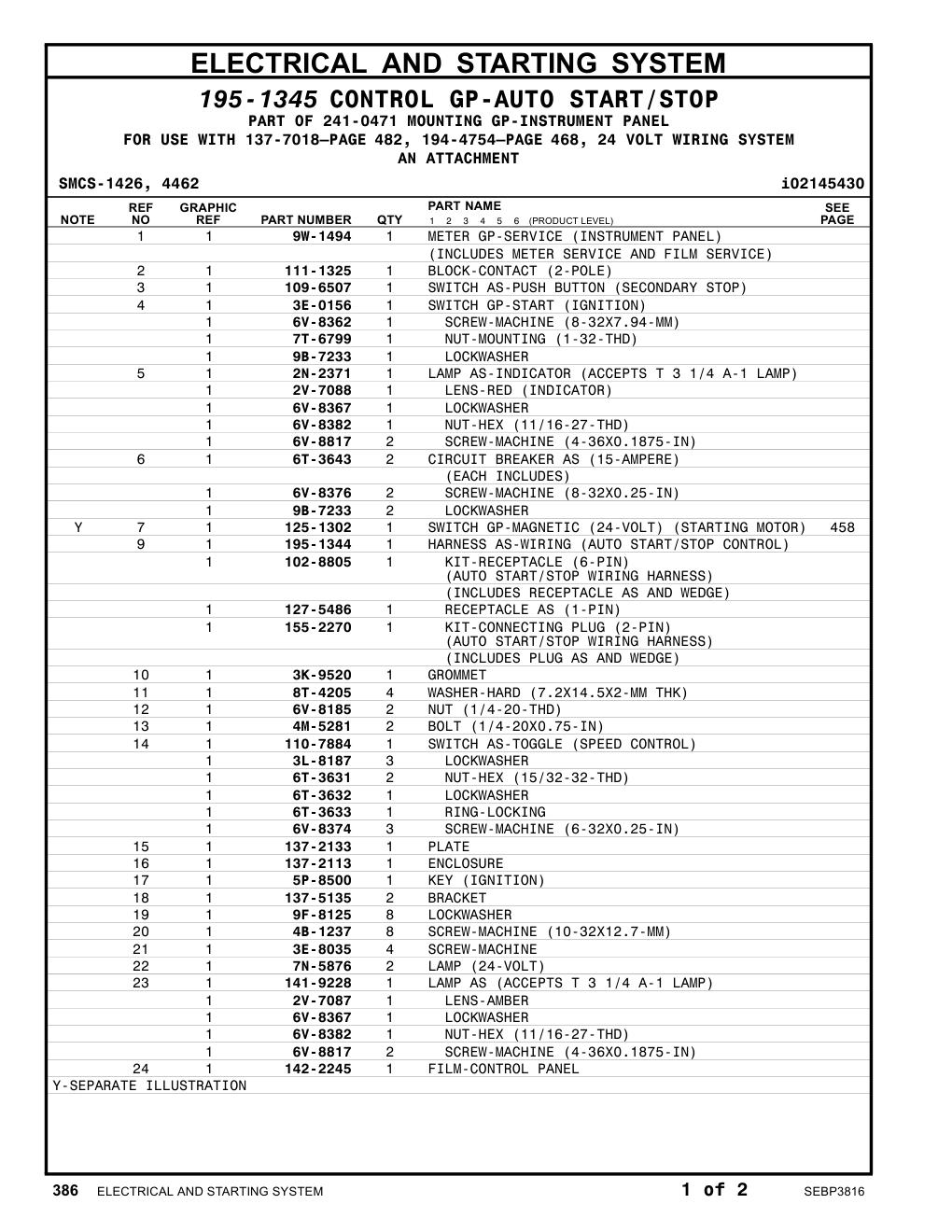

C18 ELECTRICAL AND STARTING SYSTEM 241-0471 p.487

System Notes — ELECTRICAL AND STARTING SYSTEM

The electrical and starting system covers the battery, starter motor, alternator, wiring harness, relays, switches and the instrument panel. It carries current from the batteries to the starter to crank the engine, and from the alternator back to keep the batteries charged. Because these machines work in dust, vibration and wide temperature swings, connectors corrode, harness insulation chafes against the frame, and starter solenoids burn out from repeated short cranks. Parts in this group are usually replaced on a symptom basis — slow cranking, a dash warning, lights that dim under load, or a no-start condition traced to an open circuit.

System Notes — FUEL SYSTEM

The fuel system covers the injection pump, injectors, fuel transfer pump, filters and water separator, lines and the tank. It meters and atomises diesel at the precise moment and quantity the engine needs. Modern CAT engines run very tight injector tolerances, so the group is sensitive to water and dirt: a worn injector dribbles instead of atomising, causing rough idle, white smoke and diluted oil, while a clogged filter starves the pump under load. Parts here are replaced when the engine misfires, smokes, loses power under load, or when the water separator keeps tripping — always after the fuel quality itself has been ruled out.

FAQ

Is 5P8500 the right part for my machine?
Match the part number on your old part, or send us your equipment serial number — WSTPARTS verifies fitment free of charge for CAT C18.

Genuine CAT vs direct replacement — what is the difference?
Genuine CAT covers three factory lines: New Genuine, Cat Reman (core exchange with core charge) and Cat Classic (brand-new economy line). OEM-equivalent direct replacements are non-CAT parts; grade and warranty are confirmed in the quotation.

Stock, shipping and warranty?
In stock — ships within 24 hours. Every order is covered by a warranty per quotation.

📞 Get a Quote: Contact the WSTPARTS parts team | Email: cat@wstparts.com

Frequently Asked Questions
What equipment does 5P8500 fit?
CAT 5P8500 KEY fits 12 Caterpillar equipment models including 3126B, 320C, 330C, 336D, 345B, verified against Caterpillar parts manuals and confirmed orders.
Where is 5P8500 listed in the Caterpillar parts manual?
5P8500 is listed in the Caterpillar parts manual under 3126B, ELECTRICAL AND STARTING SYSTEM, group 133-3329, page 521.
How can I order 5P8500?
Add 5P8500 to the inquiry cart, or send us your machine model and serial number — we verify the part number before dispatch.

Parts Diagram3126B

Select model:
100%
3126B · ELECTRICAL AND STARTING SYSTEM · 133-3329 CAT parts diagram
Scroll to zoom · Drag to pan
Sel 0
16T-7337METER-SERVICE
23E-0156SWITCH GP-START (IGNITION)
32N-2371LAMP AS-INDICATOR (ACCEPTS T 3 1/4 A-1 LAMP)
42V-7088LENS-RED
56V-8367LOCKWASHER
66V-8382NUT-HEX (11/16-27 THD)
76V-8817SCREW-MACHINE (4-36X0.1875 IN)
86T-3643CIRCUIT BREAKER AS (15 AMP)
97D-0894SCREW-HEAD
103K-9520GROMMET
118T-4205WASHER-HARD (7.2X14.5X2MM THK)
126V-8185NUT (1/4-20 THD)
134M-5281BOLT (1/4-20X0.750 IN)
145P-8500KEYIn stock
159F-8125LOCKWASHER
164B-1237SCREW-MACHINE
173E-8035SCREW-MACHINE
187N-5876LAMP (24 VOLT)
192V-7087LENS-AMBER
