CAT 320D 241-7331 Parts Manual Diagram - STICK AS

Home › Parts Manual › CAT 320D › 241-7331

Part No.

241-7331

Name (EN)

STICK AS

Name (CN)

Qty

1 per assembly

Group

241-7330

System

IMPLEMENTS

Source

CAT Official Parts Manual

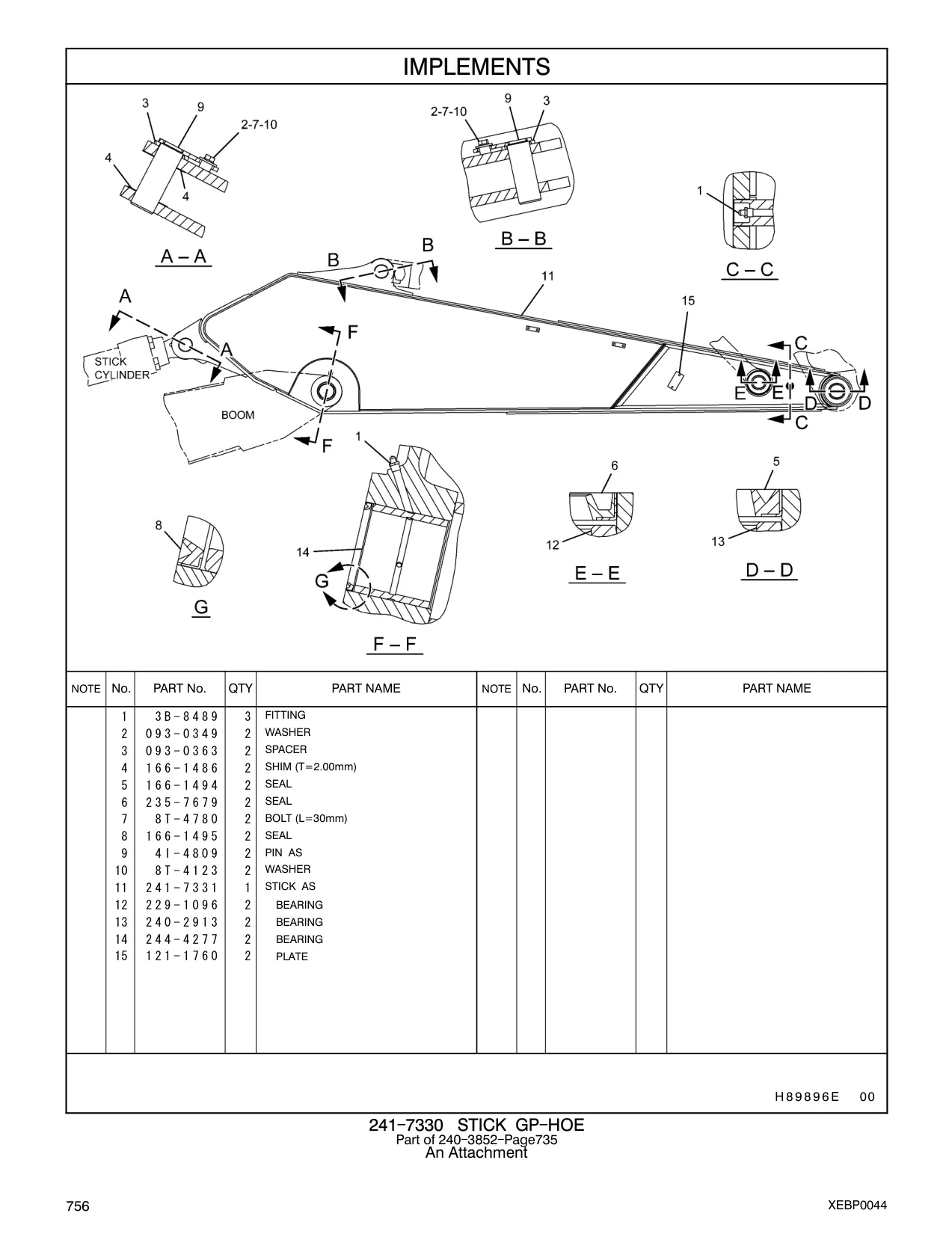

※ Click image to zoom · Page 840 of official CAT 320D parts manual

Part No.	Name	Qty	Page
3B-8489	FITTING	3	840
093-0349	WASHER	2	840
093-0363	SPACER	2	840
166-1486	SHIM (T=2.00mm)	2	840
166-1494	SEAL	2	840
235-7679	SEAL	2	840
8T-4780	BOLT (L=30mm)	2	840
166-1495	SEAL	2	840
4I-4809	PIN AS	2	840
8T-4123	WASHER	2	840
229-1096	BEARING	2	840
240-2913	BEARING	2	840
244-4277	BEARING	2	840
121-1760	PLATE	2	840
3B-8489	FITTING	3	855
093-0349	WASHER	2	855
093-0363	SPACER	2	855
166-1486	SHIM (T=2.00mm)	2	855
166-1494	SEAL	2	855
235-7679	SEAL	2	855
8T-4780	BOLT (L=30mm)	2	855
166-1495	SEAL	2	855
4I-4809	PIN AS	2	855
8T-4123	WASHER	2	855
229-1096	BEARING	2	855
240-2913	BEARING	2	855
244-4277	BEARING	2	855
121-1760	PLATE	2	855

Need price and stock for 241-7331? WSTPARTS supplies genuine CAT parts globally with fast delivery.
