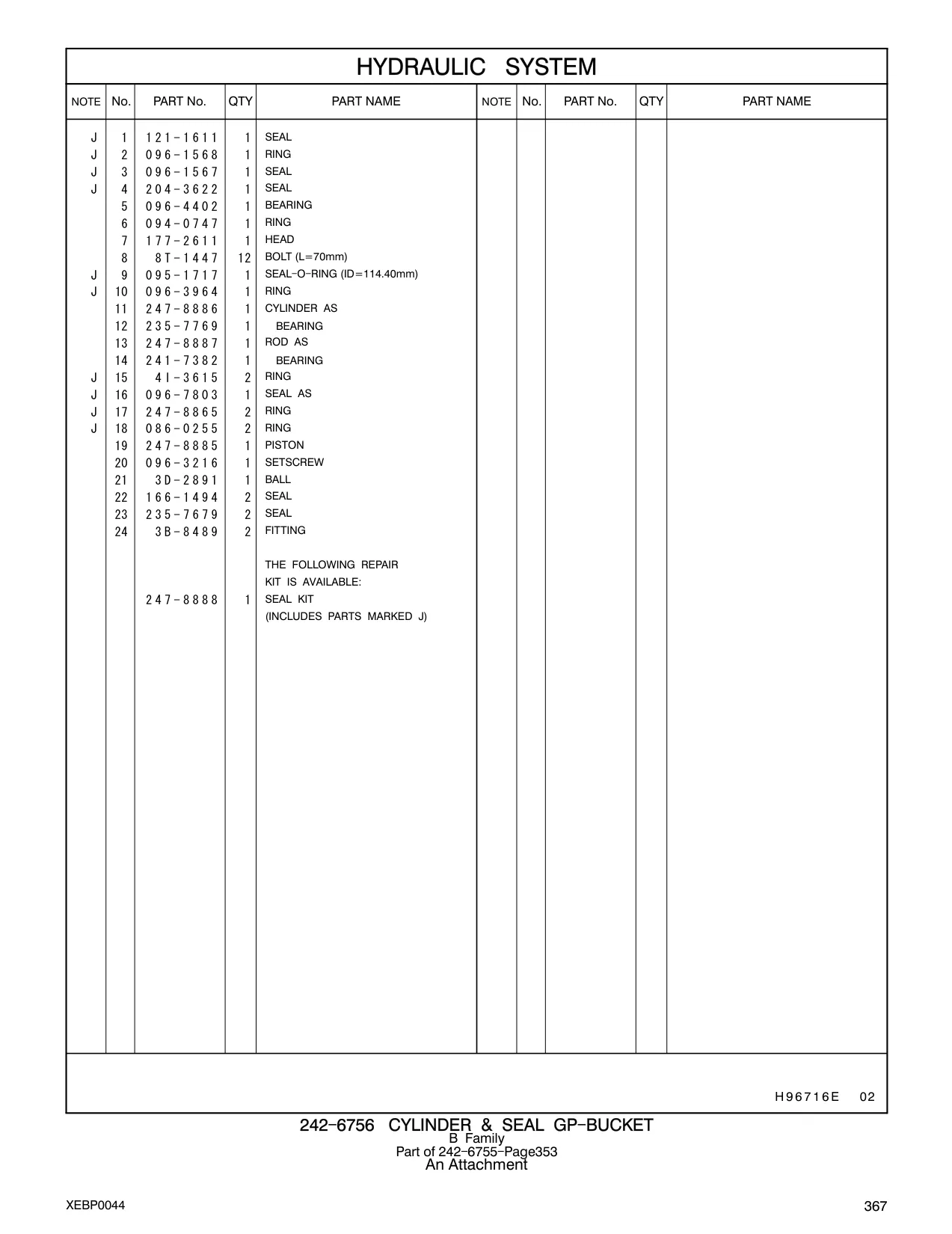

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 242-6755 |
242-6755
|
1 | 400 |
| 121-1611 |
SEAL
|
1 | 401 |
| 096-1568 |
RING
|
1 | 401 |
| 096-1567 |
SEAL
|
1 | 401 |
| 204-3622 |
SEAL
|
1 | 401 |
| 096-4402 |
BEARING
|
1 | 401 |
| 094-0747 |
RING
|
1 | 401 |
| 177-2611 |
HEAD
|
1 | 401 |
| 8T-1447 |
BOLT (L=70mm)
|
12 | 401 |
| 095-1717 |
SEAL - O - RING (ID=114.40mm)
|
1 | 401 |
| 096-3964 |
RING
|
1 | 401 |
| 247-8886 |
CYLINDER AS
|
1 | 401 |
| 235-7769 |
BEARING
|
1 | 401 |
| 247-8887 |
ROD AS
|
1 | 401 |
| 241-7382 |
BEARING
|
1 | 401 |
| 4I-3615 |
RING
|
2 | 401 |
| 096-7803 |
SEAL AS
|
1 | 401 |
| 247-8865 |
RING
|
2 | 401 |
| 086-0255 |
RING
|
2 | 401 |
| 247-8885 |
PISTON
|
1 | 401 |
| 096-3216 |
SETSCREW
|
1 | 401 |
| 3D-2891 |
BALL
|
1 | 401 |
| 166-1494 |
SEAL
|
2 | 401 |
| 3B-8489 |
FITTING THE FOLLOWING REPAIR KIT IS AVAILABLE:
|
2 | 401 |
| 247-8888 |
SEAL KIT (INCLUDES PARTS MARKED J)
|
1 | 401 |
| 242-6755 |
242-6755
|
1 | 450 |
| 121-1611 |
SEAL
|
1 | 451 |
| 096-1568 |
RING
|
1 | 451 |
| 096-1567 |
SEAL
|
1 | 451 |
| 204-3622 |
SEAL
|
1 | 451 |
| 096-4402 |
BEARING
|
1 | 451 |
| 094-0747 |
RING
|
1 | 451 |
| 177-2611 |
HEAD
|
1 | 451 |
| 8T-1447 |
BOLT (L=70mm)
|
12 | 451 |
| 095-1717 |
SEAL - O - RING (ID=114.40mm)
|
1 | 451 |
| 096-3964 |
RING
|
1 | 451 |
| 247-8886 |
CYLINDER AS
|
1 | 451 |
| 235-7769 |
BEARING
|
1 | 451 |
| 247-8887 |
ROD AS
|
1 | 451 |
| 241-7382 |
BEARING
|
1 | 451 |
| 4I-3615 |
RING
|
2 | 451 |
| 096-7803 |
SEAL AS
|
1 | 451 |
| 247-8865 |
RING
|
2 | 451 |
| 086-0255 |
RING
|
2 | 451 |
| 247-8885 |
PISTON
|
1 | 451 |
| 096-3216 |
SETSCREW
|
1 | 451 |
| 3D-2891 |
BALL
|
1 | 451 |
| 166-1494 |
SEAL
|
2 | 451 |
| 3B-8489 |
FITTING THE FOLLOWING REPAIR KIT IS AVAILABLE:
|
2 | 451 |
| 247-8888 |
SEAL KIT (INCLUDES PARTS MARKED J)
|
1 | 451 |
