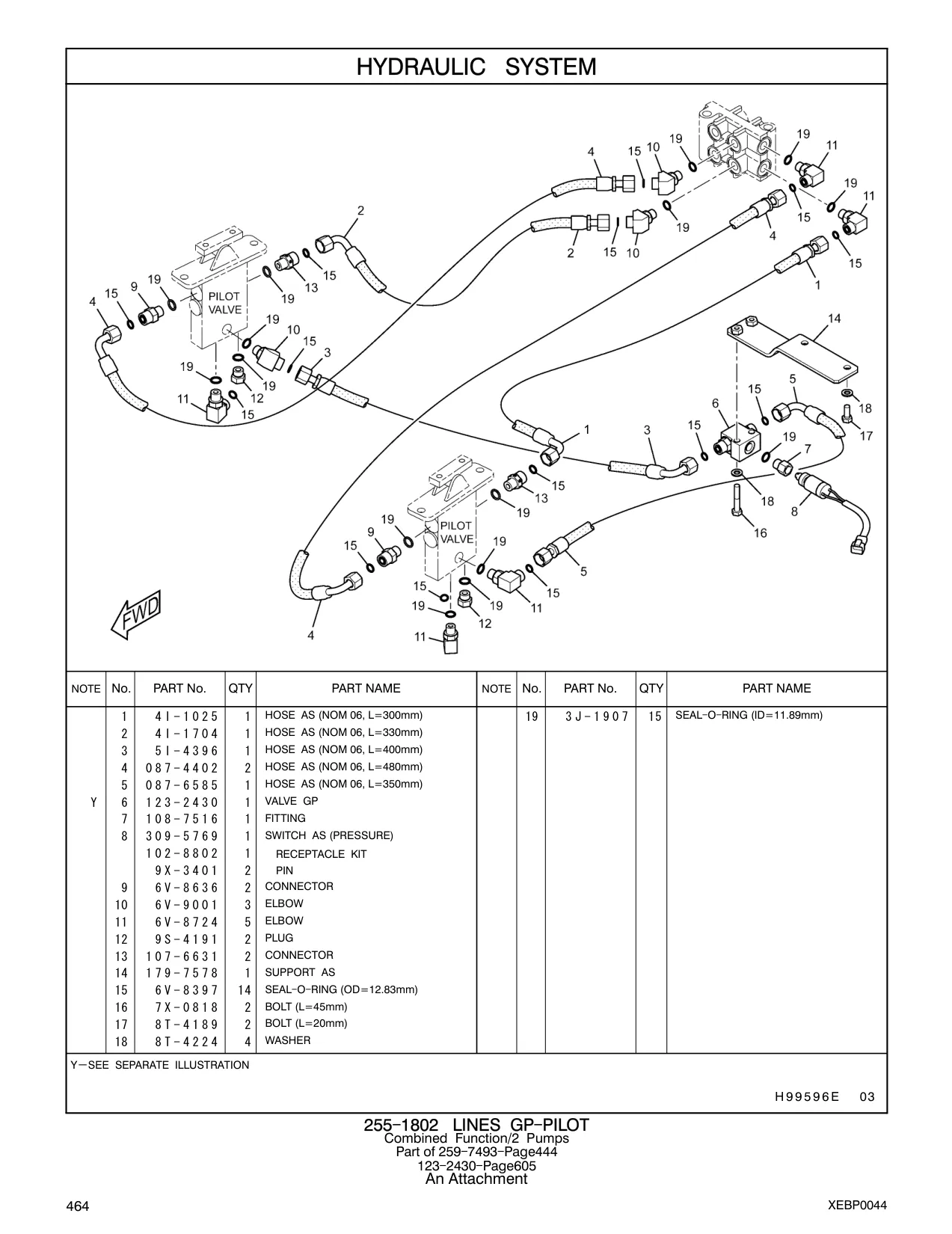

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 4I-1025 |
HOSE AS (NOM 06, L=300mm)
|
1 | 506 |
| 4I-1704 |
HOSE AS (NOM 06, L=330mm)
|
1 | 506 |
| 5I-4396 |
HOSE AS (NOM 06, L=400mm)
|
1 | 506 |
| 087-4402 |
HOSE AS (NOM 06, L=480mm)
|
2 | 506 |
| 087-6585 |
HOSE AS (NOM 06, L=350mm)
|
1 | 506 |
| 108-7516 |
FITTING
|
1 | 506 |
| 309-5769 |
SWITCH AS (PRESSURE)
|
1 | 506 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 506 |
| 9X-3401 |
PIN
|
2 | 506 |
| 6V-8636 |
CONNECTOR
|
2 | 506 |
| 6V-9001 |
ELBOW
|
3 | 506 |
| 6V-8724 |
ELBOW
|
5 | 506 |
| 9S-4191 |
PLUG
|
2 | 506 |
| 107-6631 |
CONNECTOR
|
2 | 506 |
| 179-7578 |
SUPPORT AS
|
1 | 506 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
14 | 506 |
| 7X-0818 |
BOLT (L=45mm)
|
2 | 506 |
| 8T-4189 |
BOLT (L=20mm)
|
2 | 506 |
| 8T-4224 |
WASHER
|
4 | 506 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm) H 9 9 5 9 6 E 03
|
15 | 506 |
| 4I-1025 |
HOSE AS (NOM 06, L=300mm)
|
1 | 548 |
| 4I-1704 |
HOSE AS (NOM 06, L=330mm)
|
1 | 548 |
| 5I-4396 |
HOSE AS (NOM 06, L=400mm)
|
1 | 548 |
| 087-4402 |
HOSE AS (NOM 06, L=480mm)
|
2 | 548 |
| 087-6585 |
HOSE AS (NOM 06, L=350mm)
|
1 | 548 |
| 108-7516 |
FITTING
|
1 | 548 |
| 167-3466 |
SWITCH AS (PRESSURE)
|
1 | 548 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 548 |
| 9X-3401 |
PIN
|
2 | 548 |
| 6V-8636 |
CONNECTOR
|
2 | 548 |
| 6V-9001 |
ELBOW
|
3 | 548 |
| 6V-8724 |
ELBOW
|
5 | 548 |
| 9S-4191 |
PLUG
|
2 | 548 |
| 107-6631 |
CONNECTOR
|
2 | 548 |
| 179-7578 |
SUPPORT AS
|
1 | 548 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
14 | 548 |
| 7X-0818 |
BOLT (L=45mm)
|
2 | 548 |
| 8T-4189 |
BOLT (L=20mm)
|
2 | 548 |
| 8T-4224 |
WASHER
|
4 | 548 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm) H 9 6 5 6 0 E 02
|
15 | 548 |
