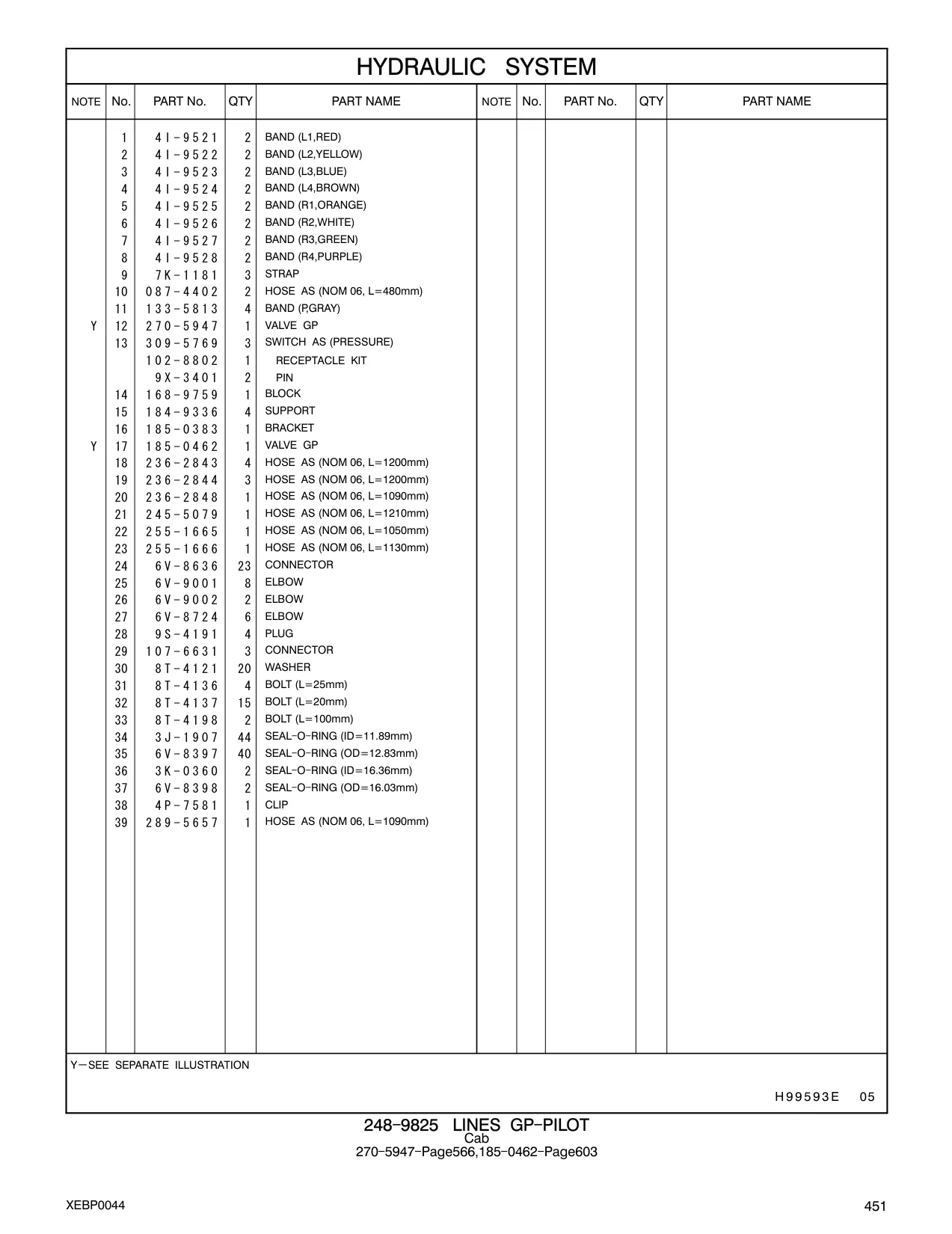

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 270-5947 |
270-5947
|
1 | 486 |
| 4I-9521 |
BAND (L1,RED)
|
2 | 487 |
| 4I-9522 |
BAND (L2,YELLOW)
|
2 | 487 |
| 4I-9523 |
BAND (L3,BLUE)
|
2 | 487 |
| 4I-9524 |
BAND (L4,BROWN)
|
2 | 487 |
| 4I-9525 |
BAND (R1,ORANGE)
|
2 | 487 |
| 4I-9526 |
BAND (R2,WHITE)
|
2 | 487 |
| 4I-9527 |
BAND (R3,GREEN)
|
2 | 487 |
| 4I-9528 |
BAND (R4,PURPLE)
|
2 | 487 |
| 7K-1181 |
STRAP
|
3 | 487 |
| 133-5813 |
BAND (P,GRAY)
|
4 | 487 |
| 270-5947 |
VALVE GP
|
1 | 487 |
| 309-5769 |
SWITCH AS (PRESSURE)
|
3 | 487 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 487 |
| 9X-3401 |
PIN
|
2 | 487 |
| 168-9759 |
BLOCK
|
1 | 487 |
| 184-9336 |
SUPPORT
|
4 | 487 |
| 185-0383 |
BRACKET
|
1 | 487 |
| 185-0462 |
VALVE GP
|
1 | 487 |
| 236-2843 |
HOSE AS (NOM 06, L=1200mm)
|
4 | 487 |
| 236-2844 |
HOSE AS (NOM 06, L=1200mm)
|
3 | 487 |
| 236-2848 |
HOSE AS (NOM 06, L=1090mm)
|
1 | 487 |
| 245-5079 |
HOSE AS (NOM 06, L=1210mm)
|
1 | 487 |
| 255-1665 |
HOSE AS (NOM 06, L=1050mm)
|
1 | 487 |
| 255-1666 |
HOSE AS (NOM 06, L=1130mm)
|
1 | 487 |
| 6V-8636 |
CONNECTOR
|
23 | 487 |
| 6V-9001 |
ELBOW
|
8 | 487 |
| 6V-9002 |
ELBOW
|
2 | 487 |
| 6V-8724 |
ELBOW
|
6 | 487 |
| 9S-4191 |
PLUG
|
4 | 487 |
| 107-6631 |
CONNECTOR
|
3 | 487 |
| 8T-4121 |
WASHER
|
20 | 487 |
| 8T-4136 |
BOLT (L=25mm)
|
4 | 487 |
| 8T-4137 |
BOLT (L=20mm)
|
15 | 487 |
| 8T-4198 |
BOLT (L=100mm)
|
2 | 487 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
44 | 487 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
40 | 487 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
2 | 487 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
2 | 487 |
| 4P-7581 |
CLIP
|
1 | 487 |
| 289-5657 |
HOSE AS (NOM 06, L=1090mm)
|
1 | 487 |
| 270-5947 |
270-5947
|
1 | 534 |
| 4I-9521 |
BAND (L1,RED)
|
2 | 535 |
| 4I-9522 |
BAND (L2,YELLOW)
|
2 | 535 |
| 4I-9523 |
BAND (L3,BLUE)
|
2 | 535 |
| 4I-9524 |
BAND (L4,BROWN)
|
2 | 535 |
| 4I-9525 |
BAND (R1,ORANGE)
|
2 | 535 |
| 4I-9526 |
BAND (R2,WHITE)
|
2 | 535 |
| 4I-9527 |
BAND (R3,GREEN)
|
2 | 535 |
| 4I-9528 |
BAND (R4,PURPLE)
|
2 | 535 |
