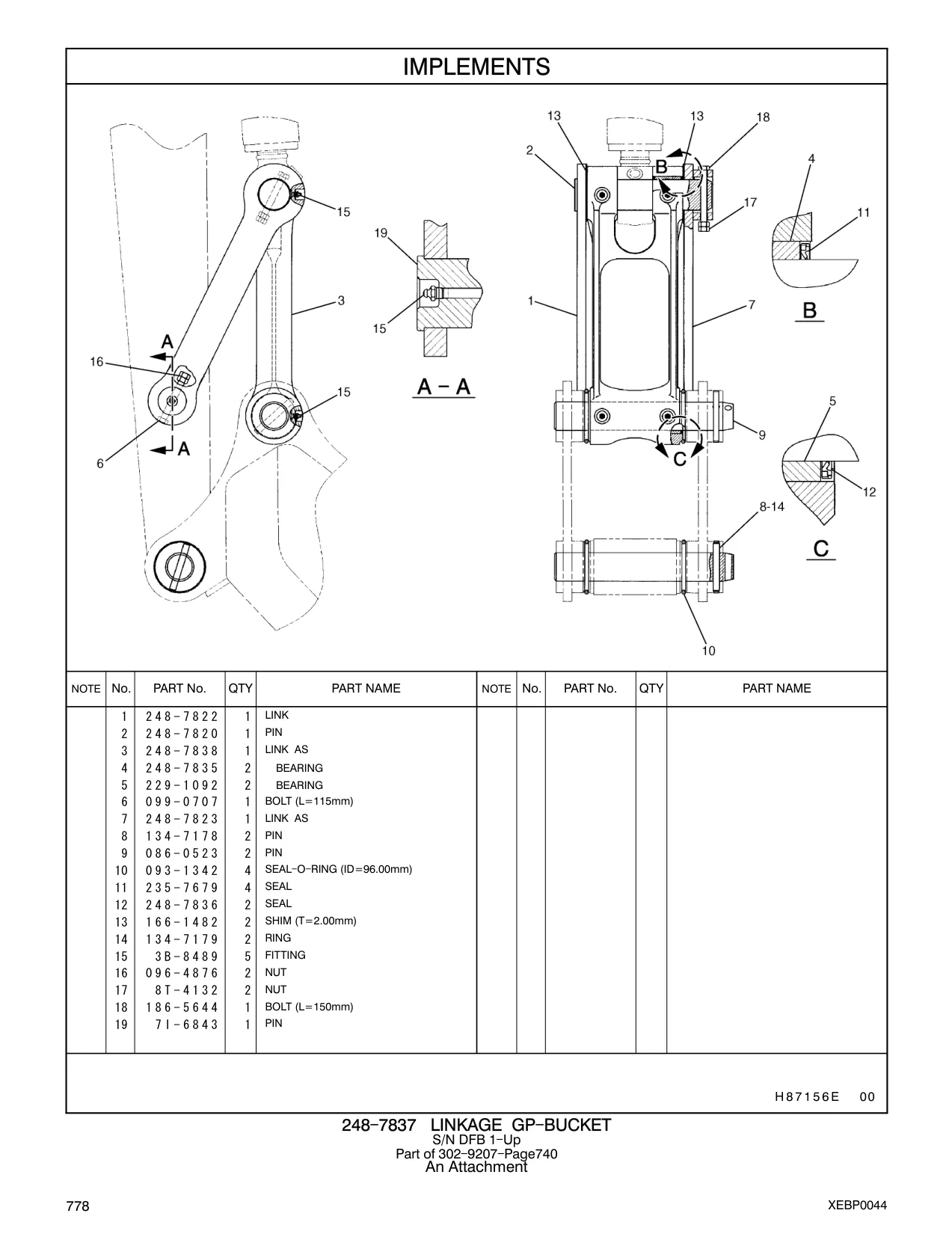

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 248-7822 |
LINK
|
1 | 862 |
| 248-7820 |
PIN
|
1 | 862 |
| 248-7838 |
LINK AS
|
1 | 862 |
| 248-7835 |
BEARING
|
2 | 862 |
| 229-1092 |
BEARING
|
2 | 862 |
| 248-7823 |
LINK AS
|
1 | 862 |
| 134-7178 |
PIN
|
2 | 862 |
| 086-0523 |
PIN
|
2 | 862 |
| 093-1342 |
SEAL - O - RING (ID=96.00mm)
|
4 | 862 |
| 235-7679 |
SEAL
|
4 | 862 |
| 248-7836 |
SEAL
|
2 | 862 |
| 166-1482 |
SHIM (T=2.00mm)
|
2 | 862 |
| 134-7179 |
RING
|
2 | 862 |
| 3B-8489 |
FITTING
|
5 | 862 |
| 096-4876 |
NUT
|
2 | 862 |
| 8T-4132 |
NUT
|
2 | 862 |
| 186-5644 |
BOLT (L=150mm)
|
1 | 862 |
| 7I-6843 |
PIN
|
1 | 862 |
| 248-7822 |
LINK
|
1 | 878 |
| 248-7820 |
PIN
|
1 | 878 |
| 248-7838 |
LINK AS
|
1 | 878 |
| 248-7835 |
BEARING
|
2 | 878 |
| 229-1092 |
BEARING
|
2 | 878 |
| 248-7823 |
LINK AS
|
1 | 878 |
| 134-7178 |
PIN
|
2 | 878 |
| 086-0523 |
PIN
|
2 | 878 |
| 093-1342 |
SEAL - O - RING (ID=96.00mm)
|
4 | 878 |
| 235-7679 |
SEAL
|
4 | 878 |
| 248-7836 |
SEAL
|
2 | 878 |
| 166-1482 |
SHIM (T=2.00mm)
|
2 | 878 |
| 134-7179 |
RING
|
2 | 878 |
| 3B-8489 |
FITTING
|
5 | 878 |
| 096-4876 |
NUT
|
2 | 878 |
| 8T-4132 |
NUT
|
2 | 878 |
| 186-5644 |
BOLT (L=150mm)
|
1 | 878 |
| 7I-6843 |
PIN
|
1 | 878 |
