| Part No. | Name | Qty | Page |
|---|---|---|---|
| 306-8453 |
306-8453
|
1 | 106 |
| 7K-1181 |
STRAP
|
2 | 107 |
| 7Y-5456 |
GROMMET
|
1 | 107 |
| 111-4838 |
CLIP
|
4 | 107 |
| 111-4839 |
STRAP
|
4 | 107 |
| 291-7593 |
BRACKET AS
|
1 | 107 |
| 132-1805 |
STRAP AS
|
1 | 107 |
| 306-8453 |
HARNESS AS
|
1 | 107 |
| 6K-8178 |
CLIP
|
3 | 107 |
| 8T-4121 |
WASHER
|
11 | 107 |
| 8T-4136 |
BOLT (L=25mm)
|
5 | 107 |
| 8T-4137 |
BOLT (L=20mm)
|
5 | 107 |
| 291-7591 |
291-7591
|
1 | 108 |
| 231-1827 |
231-1827
|
1 | 108 |

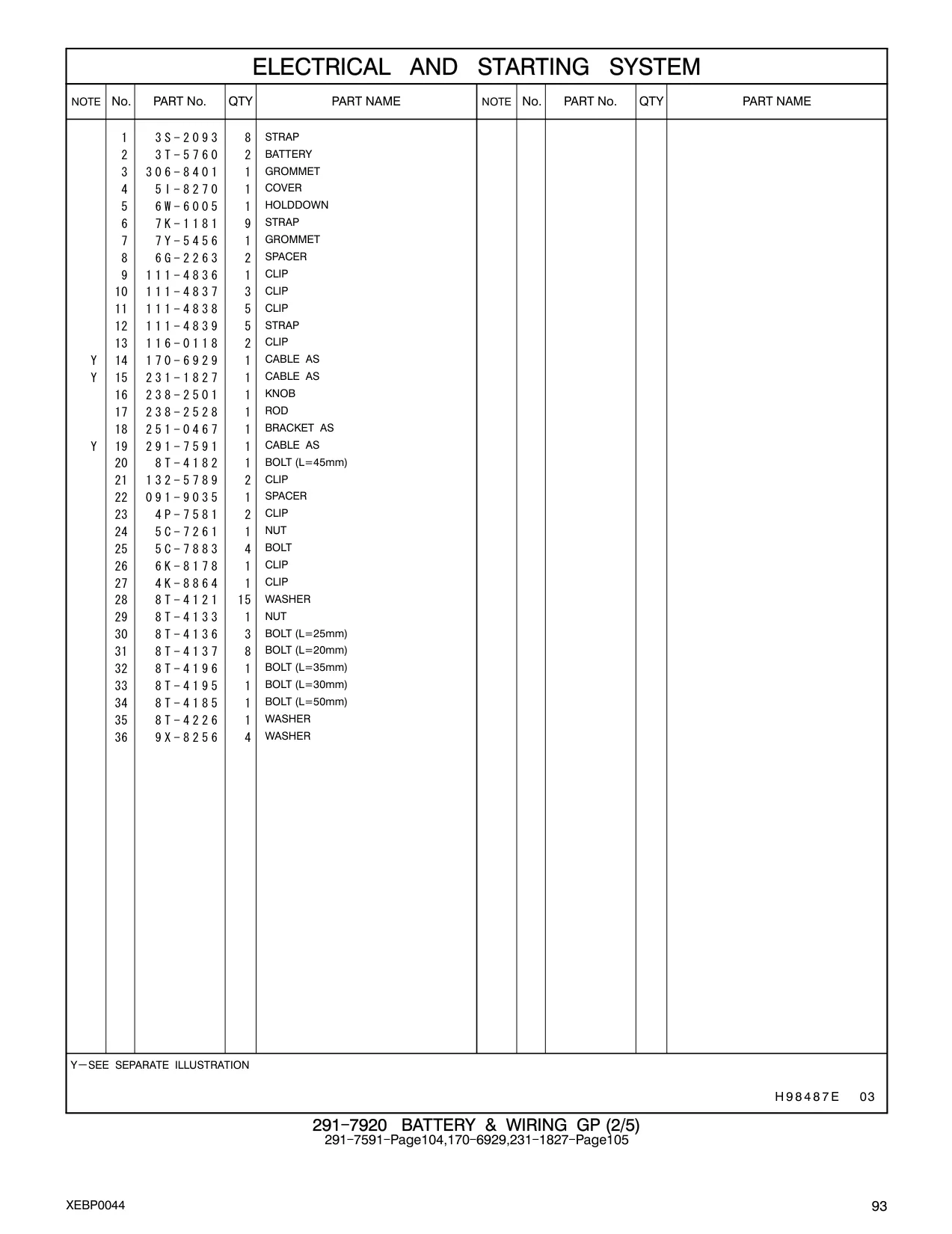

| 3S-2093 |
STRAP
|
8 | 109 |
| 3T-5760 |
BATTERY
|
2 | 109 |
| 306-8401 |
GROMMET
|
1 | 109 |
| 5I-8270 |
COVER
|
1 | 109 |
| 6W-6005 |
HOLDDOWN
|
1 | 109 |
| 7K-1181 |
STRAP
|
9 | 109 |
| 7Y-5456 |
GROMMET
|
1 | 109 |
| 6G-2263 |
SPACER
|
2 | 109 |
| 111-4836 |
CLIP
|
1 | 109 |
| 111-4837 |
CLIP
|
3 | 109 |
| 111-4838 |
CLIP
|
5 | 109 |
| 111-4839 |
STRAP
|
5 | 109 |
| 116-0118 |
CLIP
|
2 | 109 |
| 170-6929 |
CABLE AS
|
1 | 109 |
| 231-1827 |
CABLE AS
|
1 | 109 |
| 238-2501 |
KNOB
|
1 | 109 |
| 238-2528 |
ROD
|
1 | 109 |
| 251-0467 |
BRACKET AS
|
1 | 109 |
| 291-7591 |
CABLE AS
|
1 | 109 |
| 8T-4182 |
BOLT (L=45mm)
|
1 | 109 |
| 132-5789 |
CLIP
|
2 | 109 |
| 091-9035 |
SPACER
|
1 | 109 |
| 5C-7261 |
NUT
|
1 | 109 |
| 5C-7883 |
BOLT
|
4 | 109 |
| 6K-8178 |
CLIP
|
1 | 109 |
| 4K-8864 |
CLIP
|
1 | 109 |
| 8T-4121 |
WASHER
|
15 | 109 |
| 8T-4133 |
NUT
|
1 | 109 |
| 8T-4136 |
BOLT (L=25mm)
|
3 | 109 |
| 8T-4137 |
BOLT (L=20mm)
|
8 | 109 |
| 8T-4196 |
BOLT (L=35mm)
|
1 | 109 |
| 8T-4195 |
BOLT (L=30mm)
|
1 | 109 |
| 8T-4185 |
BOLT (L=50mm)
|
1 | 109 |
| 8T-4226 |
WASHER
|
1 | 109 |
| 9X-8256 |
WASHER
|
4 | 109 |
| 2G-8767 |
WASHER
|
1 | 111 |
