CAT 320D 085-7356 Parts Manual Diagram - FITTING

Home › Parts Manual › CAT 320D › 085-7356

Part No.

085-7356

Name (EN)

FITTING

Name (CN)

Qty

1 per assembly

Group

255-1663

System

HYDRAULIC SYSTEM

Source

CAT Official Parts Manual

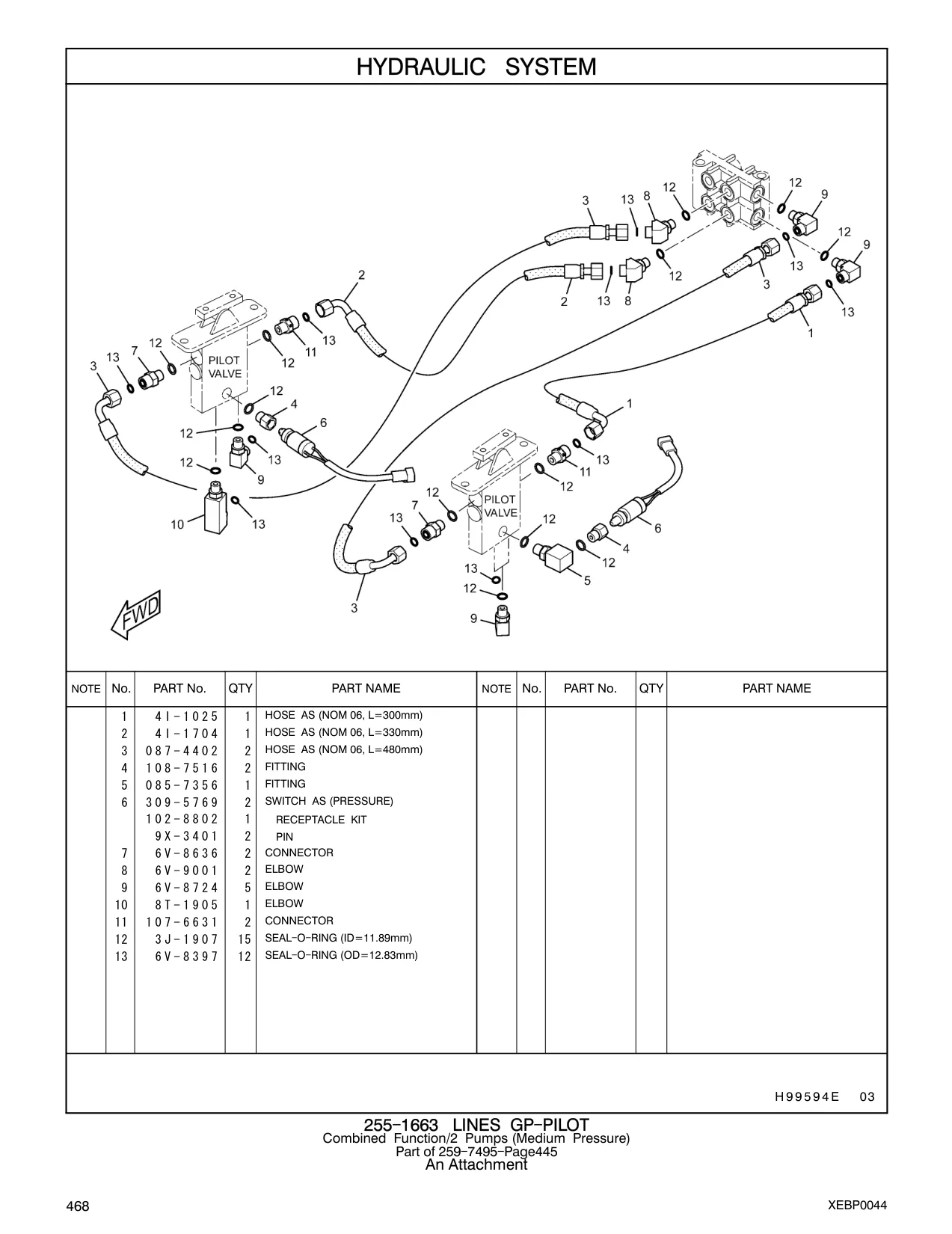

※ Click image to zoom · Page 510 of official CAT 320D parts manual

Part No.	Name	Qty	Page
4I-1025	HOSE AS (NOM 06, L=300mm)	1	510
4I-1704	HOSE AS (NOM 06, L=330mm)	1	510
087-4402	HOSE AS (NOM 06, L=480mm)	2	510
108-7516	FITTING	2	510
309-5769	SWITCH AS (PRESSURE)	2	510
102-8802	RECEPTACLE KIT	1	510
9X-3401	PIN	2	510
6V-8636	CONNECTOR	2	510
6V-9001	ELBOW	2	510
6V-8724	ELBOW	5	510
8T-1905	ELBOW	1	510
107-6631	CONNECTOR	2	510
3J-1907	SEAL - O - RING (ID=11.89mm)	15	510
6V-8397	SEAL - O - RING (OD=12.83mm)	12	510
4I-1025	HOSE AS (NOM 06, L=300mm)	1	549
4I-1671	HOSE AS (NOM 06, L=370mm)	1	549
087-4402	HOSE AS (NOM 06, L=480mm)	2	549
108-7516	FITTING	2	549
167-3466	SWITCH AS (PRESSURE)	2	549
102-8802	RECEPTACLE KIT	1	549
9X-3401	PIN	2	549
6V-8636	CONNECTOR	2	549
6V-9001	ELBOW	2	549
6V-8724	ELBOW	5	549
8T-1905	ELBOW	1	549
107-6631	CONNECTOR	2	549
3J-1907	SEAL - O - RING (ID=11.89mm)	15	549
6V-8397	SEAL - O - RING (OD=12.83mm)	12	549
