| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

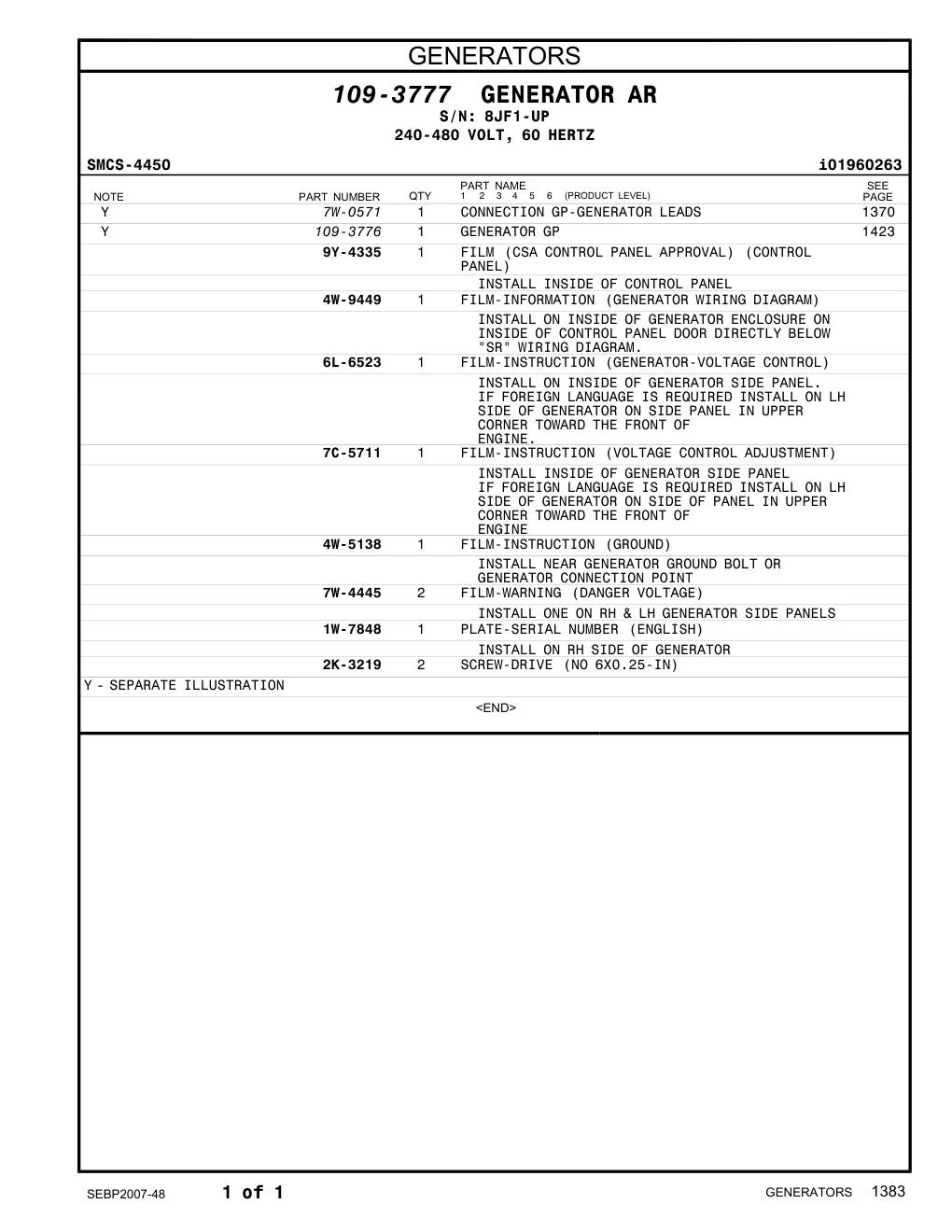

| 7W-0571 |
CONNECTION GP-GENERATOR LEADS
|
1 | 1429 |
| 109-3776 |
GENERATOR GP
|
1 | 1429 |
| 9Y-4335 |
FILM (CSA CONTROL PANEL APPROVAL) (CONTROL PANEL) INSTALL INSIDE OF CONTROL PANEL
|
1 | 1429 |
| 4W-9449 |
FILM-INFORMATION (GENERATOR WIRING DIAGRAM) INSTALL ON INSIDE OF GENERATOR ENCLOSURE ON INSIDE OF CONTROL PANEL DOOR DIRECTLY BELOW "SR" WIRING DIAGRAM.
|
1 | 1429 |
| 6L-6523 |
FILM-INSTRUCTION (GENERATOR-VOLTAGE CONTROL) INSTALL ON INSIDE OF GENERATOR SIDE PANEL. IF FOREIGN LANGUAGE IS REQUIRED INSTALL ON LH SIDE OF GENERATOR ON SIDE PANEL IN UPPER CORNER TOWARD THE FRONT OF ENGINE.
|
1 | 1429 |
| 4W-5138 |
FILM-INSTRUCTION (GROUND) INSTALL NEAR GENERATOR GROUND BOLT OR GENERATOR CONNECTION POINT
|
1 | 1429 |
| 7W-4445 |
FILM-WARNING (DANGER VOLTAGE) INSTALL ONE ON RH & LH GENERATOR SIDE PANELS
|
2 | 1429 |
| 1W-7848 |
PLATE-SERIAL NUMBER (ENGLISH) INSTALL ON RH SIDE OF GENERATOR
|
1 | 1429 |
| 2K-3219 |
SCREW-DRIVE (NO 6X0.25-IN)
|
2 | 1429 |
| 4P-3154 |
HEAT SINK
|
1 | 1469 |
| 110-6174 |
PANEL-REAR
|
1 | 1469 |
| 4P-3153 |
SPACER (20.6X77X27.8-MM THK)
|
1 | 1469 |
| 1A-9579 |
BOLT (5/16-18X1.5-IN)
|
4 | 1469 |
| 4P-3152 |
ROTOR-EXCITER
|
1 | 1469 |
| 9Y-0916 |
RECTIFIER AS
|
1 | 1469 |
| 9Y-5816 |
STATOR-EXCITER
|
1 | 1469 |
| 3H-5932 |
BOLT (5/16-18X4.5-IN)
|
4 | 1469 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
|
8 | 1469 |
| 6I-0088 |
COVER AS-EXCITER
|
1 | 1469 |
| 1B-2714 |
BOLT (1/4-20X2.5-IN)
|
4 | 1469 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
19 | 1469 |
| 111-2413 |
FAN-GENERATOR
|
1 | 1469 |
| 110-6175 |
COVER AS-AIR (INLET)
|
1 | 1469 |
| 110-4325 |
BRACKET-BEARING
|
1 | 1469 |
| 9S-8750 |
NUT-FULL (1/4-20-THD)
|
3 | 1469 |
| 0S-1615 |
BOLT (1/4-20X0.75-IN)
|
8 | 1469 |
| 8T-6764 |
PLUG-PIPE (1/8-27-THD)
|
2 | 1469 |
| 110-3410 |
ROTOR AS
|
1 | 1469 |
| 7E-6577 |
COVER-RECTIFIER
|
1 | 1469 |
| 7C-5709 |
SLEEVE
|
3 | 1469 |
| 7C-5708 |
GROMMET
|
3 | 1469 |
| 033-2075 |
WASHER (0.266X1.25X0.06-IN THK)
|
6 | 1469 |
| 1N-7219 |
CHANNEL-RUBBER
|
1 | 1469 |
| 7E-6578 |
PANEL
|
2 | 1469 |
| 4W-9449 |
FILM-INFORMATION (GENERATOR WIRING DIAGRAM)
|
1 | 1469 |
| 7E-6575 |
PANEL AS
|
1 | 1469 |
| 4F-8711 |
PLUG-BUTTON
|
2 | 1469 |
| 5N-3174 |
PLUG-BUTTON
|
8 | 1469 |
| 5N-3175 |
PLUG-BUTTON
|
1 | 1469 |
| 6K-9593 |
PLUG-BUTTON
|
1 | 1469 |
| 3V-5035 |
SPACER (0.302X0.54X1.03-IN THK)
|
1 | 1469 |
| 4P-3420 |
BRACKET (RH)
|
1 | 1469 |
| 7E-6568 |
FRAME AS (RH)
|
1 | 1469 |
| 4P-3419 |
BRACKET (LH)
|
1 | 1469 |
| 126-4421 |
SCREEN AS
|
2 | 1469 |
| 7E-6567 |
FRAME AS (LH)
|
1 | 1469 |
| 9F-7022 |
BOLT (1/4-20X1.5-IN)
|
1 | 1469 |
| 110-4875 |
STATOR AS (PERMANENT MAGNET)
|
1 | 1469 |
| 7E-8266 |
HOLDER AS-FUSE
|
2 | 1469 |
| 9Y-6027 |
FUSE-CERAMIC (10-AMPERE)
|
2 | 1469 |
