Part Number
0086325
ELBOW
Category: — | Fits: C15
List Price
¥1,621.47
Статус наличия Available (Contact for Inquiry)
Fits Equipment Models (1)
C15

CAT 0086325 ELBOW fits Caterpillar C15. Available for order at WSTPARTS.

Direct Replacement Parts (Compatible Models)
暂无配套厂替代件记录, Contact us
135-3086-8288
WeChat: 135-3002-9789 / 135-3086-8288
Business days 8:00–18:00
×

Share This Page

Scan the QR code to share this page

Or copy the link below:

CAT 0086325 ELBOW for C15 Caterpillar Part - WSTPARTS

Need a dependable Fitting part for your Caterpillar C15 machine? The 0086325 ELBOW from WSTPARTS is manufactured to OEM-grade tolerances. It is categorized under Fitting. Every unit is fitment-verified before dispatch. Manual reference: C15: LUBRICATION SYSTEM, group 304-3733, page 503.

0086325 ELBOW for Caterpillar C15 — Genuine CAT & Replacement Part

WSTPARTS supplies genuine CAT and OEM-equivalent direct-replacement ELBOW (Part # 0086325). Designed for CAT C15 equipment.

Compatible Models

Key Features

  • ✔ 100% compatible with CAT C15
  • ✔ Meets Caterpillar original quality and performance standards
  • ✔ Genuine CAT lines: New Genuine / Cat Reman / Cat Classic | OEM-equivalent direct replacements
  • ✔ Available for order, contact for lead time

Specifications

Part Number (MPN)0086325
Product NameELBOW
BrandCAT
Applicable ModelsC15
Weight0.77 kg
ConditionNew (Genuine CAT / OEM-equivalent direct replacement)
Warranty12 Months

Where This Part Fits

Every row below is a real listing of 0086325 in the Caterpillar parts manual: the machine it is published under, the system it belongs to, the group number and the manual page. Use it to confirm the part against your own parts book before ordering.

Machine System Group No. Manual Page
C15 LUBRICATION SYSTEM 304-3733 p.503
C15 LUBRICATION SYSTEM 304-3733 p.492

System Notes — LUBRICATION SYSTEM

The lubrication system covers the oil pump, oil cooler, oil filter base, relief valves, dipstick tube, pan and the galleries that distribute oil to every bearing in the engine. It is the system that keeps metal off metal. Failures tend to be either pressure loss — a worn pump, a stuck relief valve, a collapsed filter — or contamination, where sludge and debris circulate and score bearing surfaces. Oil pressure that reads low at idle, a filter that comes out heavy, or oil that turns dark far sooner than usual are the signals. Parts in this group are replaced on measured oil pressure and lab results rather than on interval alone.

FAQ

Is 0086325 the right part for my machine?
Match the part number on your old part, or send us your equipment serial number — WSTPARTS verifies fitment free of charge for CAT C15.

Genuine CAT vs direct replacement — what is the difference?
Genuine CAT covers three factory lines: New Genuine, Cat Reman (core exchange with core charge) and Cat Classic (brand-new economy line). OEM-equivalent direct replacements are non-CAT parts; grade and warranty are confirmed in the quotation.

Stock, shipping and warranty?
Lead time confirmed on request; we quote the fastest available option. Every order is covered by a warranty per quotation.

📞 Get a Quote: Contact the WSTPARTS parts team | Email: cat@wstparts.com

Frequently Asked Questions
What equipment does 0086325 fit?
CAT 0086325 ELBOW fits 1 Caterpillar equipment model including C15, verified against Caterpillar parts manuals and confirmed orders.
Where is 0086325 listed in the Caterpillar parts manual?
0086325 is listed in the Caterpillar parts manual under C15, LUBRICATION SYSTEM, group 304-3733, page 503.
How can I order 0086325?
Add 0086325 to the inquiry cart, or send us your machine model and serial number — we verify the part number before dispatch.

Parts Diagram

100%

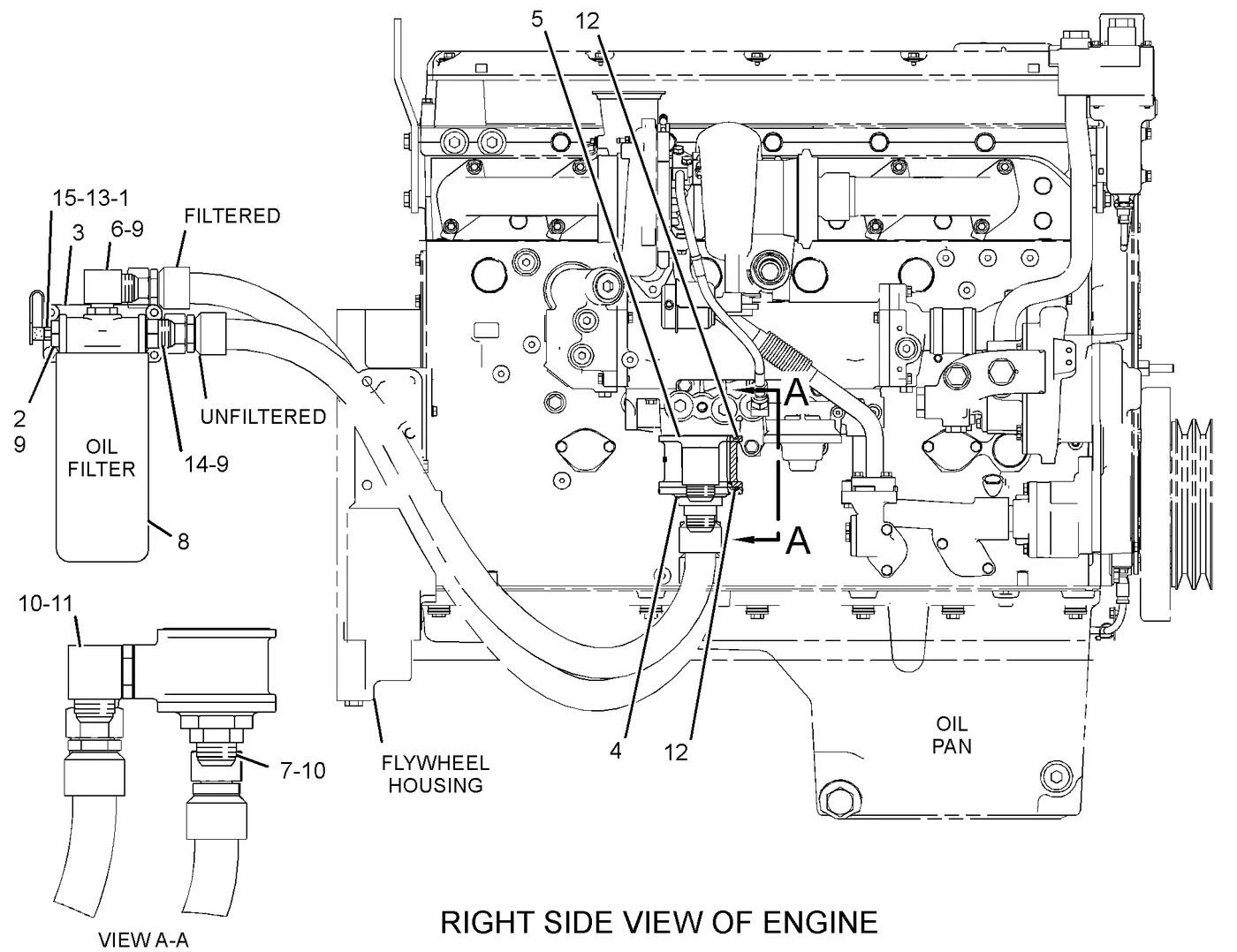

C15 · LUBRICATION SYSTEM · 304-3733 CAT parts diagram
Scroll to zoom · Drag to pan
Sel 0
18C-3445CAP-DUST
28D-8428ADAPTER
32P-4304STUD-HOLLOW
41R-1808FILTER-ENGINE OIL (ADVANCED EFFICIENCY) (ENGINE)
55P-7701SEAL-O-RINGIn stock
65P-7815SEAL-O-RING
76M-5652ELBOW
86V-3908SEAL-O-RING
96V-5048SEAL-O-RING
107D-5318CONNECTOR
118C-3446VALVE-FLUID SAMPLING
