Part Number
0016301
ELBOW
Category: — | Fits: 3516B, G3508, G3608, C32
List Price
¥187.53
Статус наличия Available (Contact for Inquiry)
Fits Equipment Models (4)

CAT 0016301 ELBOW fits Caterpillar 3516B, C32, G3508, G3608. Available for order at WSTPARTS.

Direct Replacement Parts (Compatible Models)
暂无配套厂替代件记录, Contact us
135-3086-8288
WeChat: 135-3002-9789 / 135-3086-8288
Business days 8:00–18:00
×

Share This Page

Scan the QR code to share this page

Or copy the link below:

CAT 0016301 ELBOW for 3516B Caterpillar Part - WSTPARTS

The 0016301 ELBOW is a genuine and high-quality OEM replacement part compatible with Caterpillar 3516B, G3508 and G3608 equipment. It is categorized under Fitting. Every unit is fitment-verified before dispatch. Manual reference: 3516B: LUBRICATION SYSTEM, group 197-7082, page 164; C32: COOLING SYSTEM, group 380-7739, page 168.

0016301 ELBOW for Caterpillar 3516B — Genuine CAT & Replacement Part

WSTPARTS supplies genuine CAT and OEM-equivalent direct-replacement ELBOW (Part # 0016301). Designed for CAT 3516B, G3508, G3608, C32 equipment.

Compatible Models

Key Features

  • ✔ 100% compatible with CAT 3516B, G3508, G3608, C32
  • ✔ Meets Caterpillar original quality and performance standards
  • ✔ Genuine CAT lines: New Genuine / Cat Reman / Cat Classic | OEM-equivalent direct replacements
  • ✔ Available for order, contact for lead time

Specifications

Part Number (MPN)0016301
Product NameELBOW
BrandCAT
Applicable Models3516B, G3508, G3608, C32
Weight0.23 kg
ConditionNew (Genuine CAT / OEM-equivalent direct replacement)
Warranty12 Months

Where This Part Fits

Every row below is a real listing of 0016301 in the Caterpillar parts manual: the machine it is published under, the system it belongs to, the group number and the manual page. Use it to confirm the part against your own parts book before ordering.

Machine System Group No. Manual Page
3516B LUBRICATION SYSTEM 197-7082 p.164
C32 COOLING SYSTEM 380-7739 p.168
G3508 ENGINE ARRANGEMENT 133-4817 p.27
G3608 LUBRICATION SYSTEM 164-5989 p.168
G3508 AIR INLET AND EXHAUST SYSTEM 030-7950 p.338

System Notes — LUBRICATION SYSTEM

The lubrication system covers the oil pump, oil cooler, oil filter base, relief valves, dipstick tube, pan and the galleries that distribute oil to every bearing in the engine. It is the system that keeps metal off metal. Failures tend to be either pressure loss — a worn pump, a stuck relief valve, a collapsed filter — or contamination, where sludge and debris circulate and score bearing surfaces. Oil pressure that reads low at idle, a filter that comes out heavy, or oil that turns dark far sooner than usual are the signals. Parts in this group are replaced on measured oil pressure and lab results rather than on interval alone.

System Notes — COOLING SYSTEM

The cooling system covers the radiator, water pump, thermostat, fan and fan drive, coolant hoses, clamps, the surge tank and the belts that drive it. It holds engine temperature inside the range where clearances and oil film stay correct. Failures are usually slow and then sudden: a hose softens and balloons before it bursts, a water pump seal starts weeping from the weep hole, a thermostat sticks partly open so the engine runs cold and burns more fuel. On construction sites the radiator also packs with dust and debris, which raises pressure across the core and finds the weakest hose or clamp first.

FAQ

Is 0016301 the right part for my machine?
Match the part number on your old part, or send us your equipment serial number — WSTPARTS verifies fitment free of charge for CAT 3516B.

Genuine CAT vs direct replacement — what is the difference?
Genuine CAT covers three factory lines: New Genuine, Cat Reman (core exchange with core charge) and Cat Classic (brand-new economy line). OEM-equivalent direct replacements are non-CAT parts; grade and warranty are confirmed in the quotation.

Stock, shipping and warranty?
Lead time confirmed on request; we quote the fastest available option. Every order is covered by a warranty per quotation.

📞 Get a Quote: Contact the WSTPARTS parts team | Email: cat@wstparts.com

Frequently Asked Questions
What equipment does 0016301 fit?
CAT 0016301 ELBOW fits 4 Caterpillar equipment models including 3516B, C32, G3508, G3608, verified against Caterpillar parts manuals and confirmed orders.
Where is 0016301 listed in the Caterpillar parts manual?
0016301 is listed in the Caterpillar parts manual under 3516B, LUBRICATION SYSTEM, group 197-7082, page 164.
How can I order 0016301?
Add 0016301 to the inquiry cart, or send us your machine model and serial number — we verify the part number before dispatch.

Parts DiagramG3508

Select model:
100%

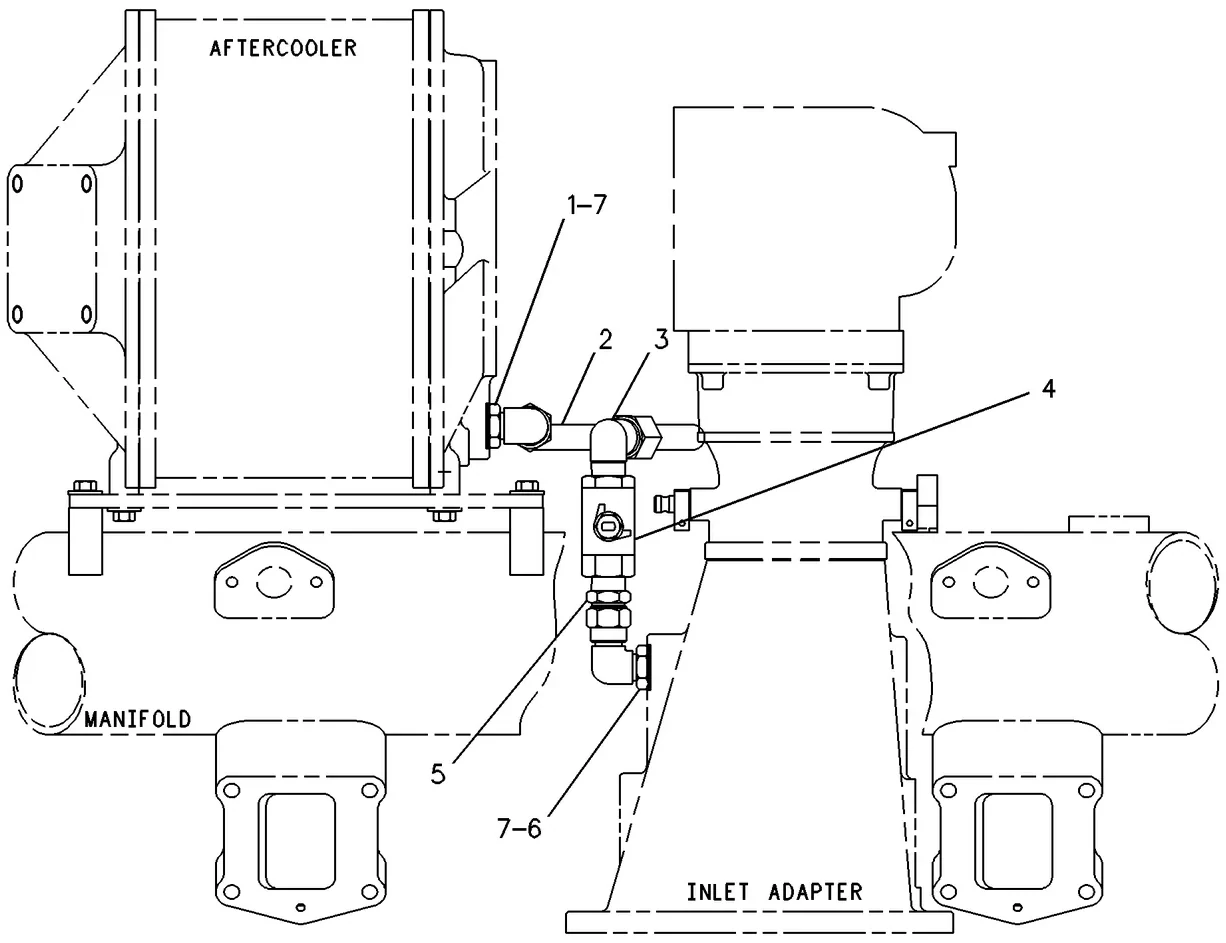

G3508 · ENGINE ARRANGEMENT · 133-4817 CAT parts diagram
Scroll to zoom · Drag to pan
Sel 0
26I-0667TUBE AS
38C-1358VALVE
44S-6678CONNECTOR
53D-2824SEAL-O-RING (23.47MM ID)In stock
63R-9704ELBOW-SWIVEL
73V-3308WASHER (2.5MM THK)
80S-1594BOLT (3/8-16X1IN)
98M-2773CLIP (17.46MM ID)
103B-1915BOLT (3/8-16X1.375IN)
118N-3378AIR CLEANER GP
129Y-1705BRACKET AS
139Y-1707BRACKET AS
145P-8245WASHER (3MM THK)
156H-1717BOLT (1/2-13X1.125IN)
165M-2894WASHER (2.5MM THK)In stock
171A-2029BOLT (3/8-16X1.125IN)
180L-1351BOLT (3/8-16X.875IN)
198N-5254HOSE-REDUCER
209Y-1704SUPPORT-AIR CLEANER
215P-4869CLAMP-HOSE
225P-3860CLAMP-HOSEIn stock
239L-9132WASHER (2.5MM THK)
249S-8752NUT-FULL (3/8-16 THD)
