| Part No. | Name | Qty | Page |
|---|---|---|---|
| 2W-2988 |
DOWEL
|
2 | 741 |
| 4W-7593 |
SHIM PACK (INCLUDES 36-SHIMS)
|
4 | 741 |
| 1F-7464 |
BOLT (1-14X4-IN)
|
8 | 741 |
| 5D-4661 |
WASHER-HARD (28X52.5X8-MM THK)
|
8 | 741 |
| 8T-3850 |
SETSCREW (1-1/2-12X5-IN)
|
4 | 741 |
| 9G-1520 |
BLOCK
|
4 | 741 |
| 8M-4446 |
SEAL-O-RING
|
16 | 741 |
| 7W-5770 |
PLATE
|
4 | 741 |
| 7W-5898 |
LUG-ALIGNING
|
8 | 741 |
| 5R-4911 |
STRIP
|
4 | 741 |
| 6V-5136 |
SETSCREW-SQUARE HEAD (1-14X127-MM)
|
8 | 741 |
| 146-2556 |
PLATE
|
4 | 741 |
| 7E-7852 |

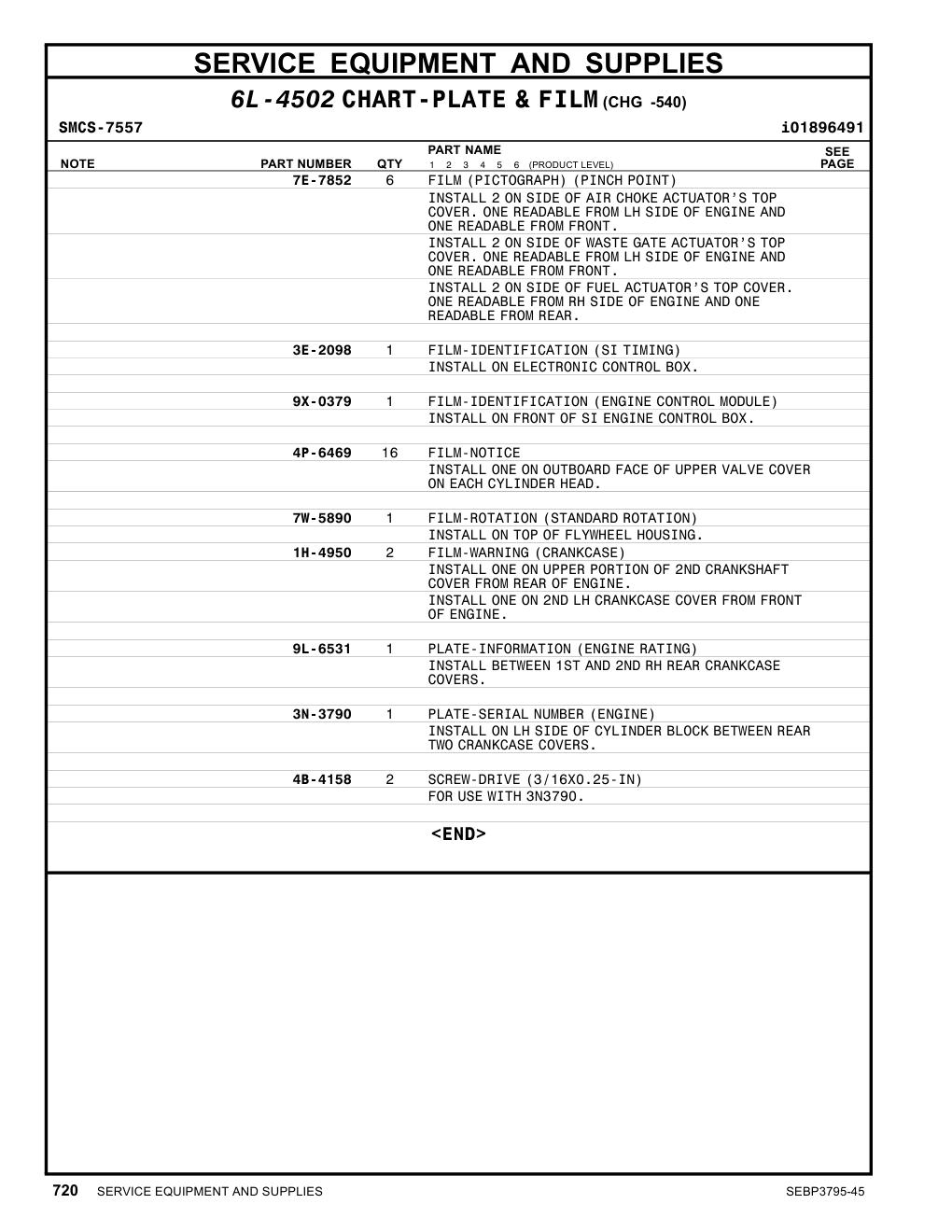

FILM (PICTOGRAPH) (PINCH POINT) INSTALL 2 ON SIDE OF AIR CHOKE ACTUATOR’S TOP COVER. ONE READABLE FROM LH SIDE OF ENGINE AND ONE READABLE FROM FRONT. INSTALL 2 ON SIDE OF WASTE GATE ACTUATOR’S TOP COVER. ONE READABLE FROM LH SIDE OF ENGINE AND ONE READABL
|
6 | 743 |
| 3E-2098 |
FILM-IDENTIFICATION (SI TIMING) INSTALL ON ELECTRONIC CONTROL BOX.
|
1 | 743 |
| 9X-0379 |
FILM-IDENTIFICATION (ENGINE CONTROL MODULE) INSTALL ON FRONT OF SI ENGINE CONTROL BOX.
|
1 | 743 |
| 7W-5890 |
FILM-ROTATION (STANDARD ROTATION) INSTALL ON TOP OF FLYWHEEL HOUSING.
|
1 | 743 |
| 1H-4950 |
FILM-WARNING (CRANKCASE) INSTALL ONE ON UPPER PORTION OF 2ND CRANKSHAFT COVER FROM REAR OF ENGINE. INSTALL ONE ON 2ND LH CRANKCASE COVER FROM FRONT OF ENGINE.
|
2 | 743 |
| 9L-6531 |
PLATE-INFORMATION (ENGINE RATING) INSTALL BETWEEN 1ST AND 2ND RH REAR CRANKCASE COVERS.
|
1 | 743 |
| 3N-3790 |
PLATE-SERIAL NUMBER (ENGINE) INSTALL ON LH SIDE OF CYLINDER BLOCK BETWEEN REAR TWO CRANKCASE COVERS.
|
1 | 743 |
| 4B-4158 |
SCREW-DRIVE (3/16X0.25-IN) FOR USE WITH 3N3790.
|
2 | 743 |
