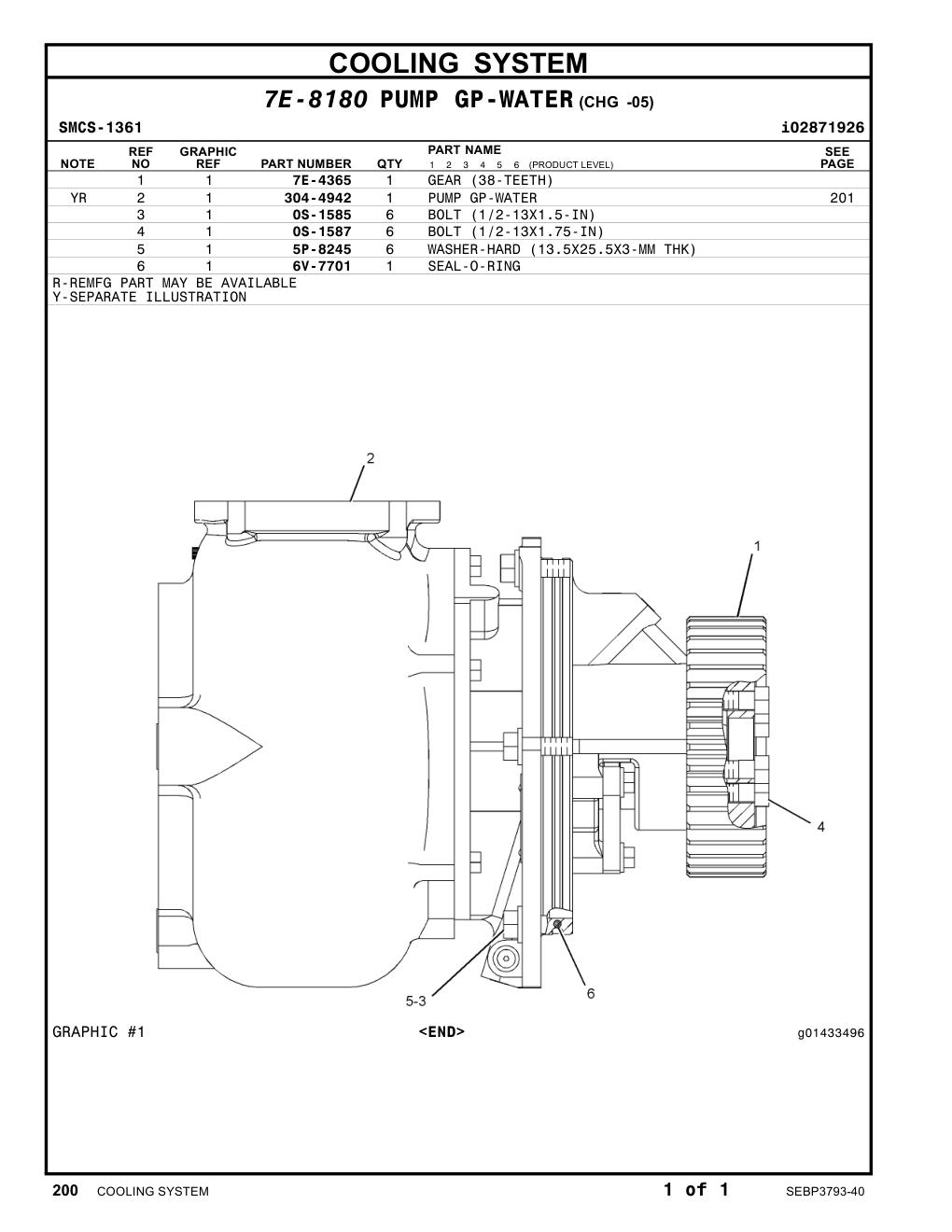

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 7E-4365 |
GEAR (38-TEETH)
|
1 | 218 |
| 0S-1585 |
BOLT (1/2-13X1.5-IN)
|
6 | 218 |
| 0S-1587 |
BOLT (1/2-13X1.75-IN)
|
6 | 218 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
6 | 218 |
| 6V-7701 |
SEAL-O-RING
|
1 | 218 |
| 7E-3173 |
HOUSING-WATER PUMP
|
1 | 219 |
| 7E-3174 |
IMPELLER-PUMP
|
1 | 219 |
| 292-5982 |
SEAL GP-FACE
|
1 | 219 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
|
5 | 219 |
| 208-1007 |
HOUSING AS
|
1 | 219 |
| 188-0449 |
BEARING-SLEEVE
|
2 | 219 |
| 188-0450 |
BEARING-SLEEVE
|
2 | 219 |
| 7E-4356 |
SEAL-LIP TYPE
|
1 | 219 |
| 5P-7813 |
SEAL-O-RING
|
4 | 219 |
| 9S-8007 |
PLUG
|
4 | 219 |
| 208-0327 |
SHAFT
|
1 | 219 |
| 0S-1588 |
BOLT (3/8-16X1.25-IN)
|
3 | 219 |
| 3V-3308 |
WASHER-HARD (10.2X20.5X2.5-MM THK)
|
3 | 219 |
| 1W-2828 |
WASHER-THRUST
|
1 | 219 |
| 134-5958 |
SEAL-O-RING
|
1 | 219 |
| 6V-5063 |
SEAL-O-RING
|
2 | 219 |
| 9S-8008 |
PLUG-O-RING
|
2 | 219 |
| 4W-0234 |
WASHER (20.5X48X15-MM THK)
|
1 | 219 |
| 3B-2968 |
BOLT (3/4-10X3.5-IN)
|
1 | 219 |
