| Part No. | Name | Qty | Page |
|---|---|---|---|

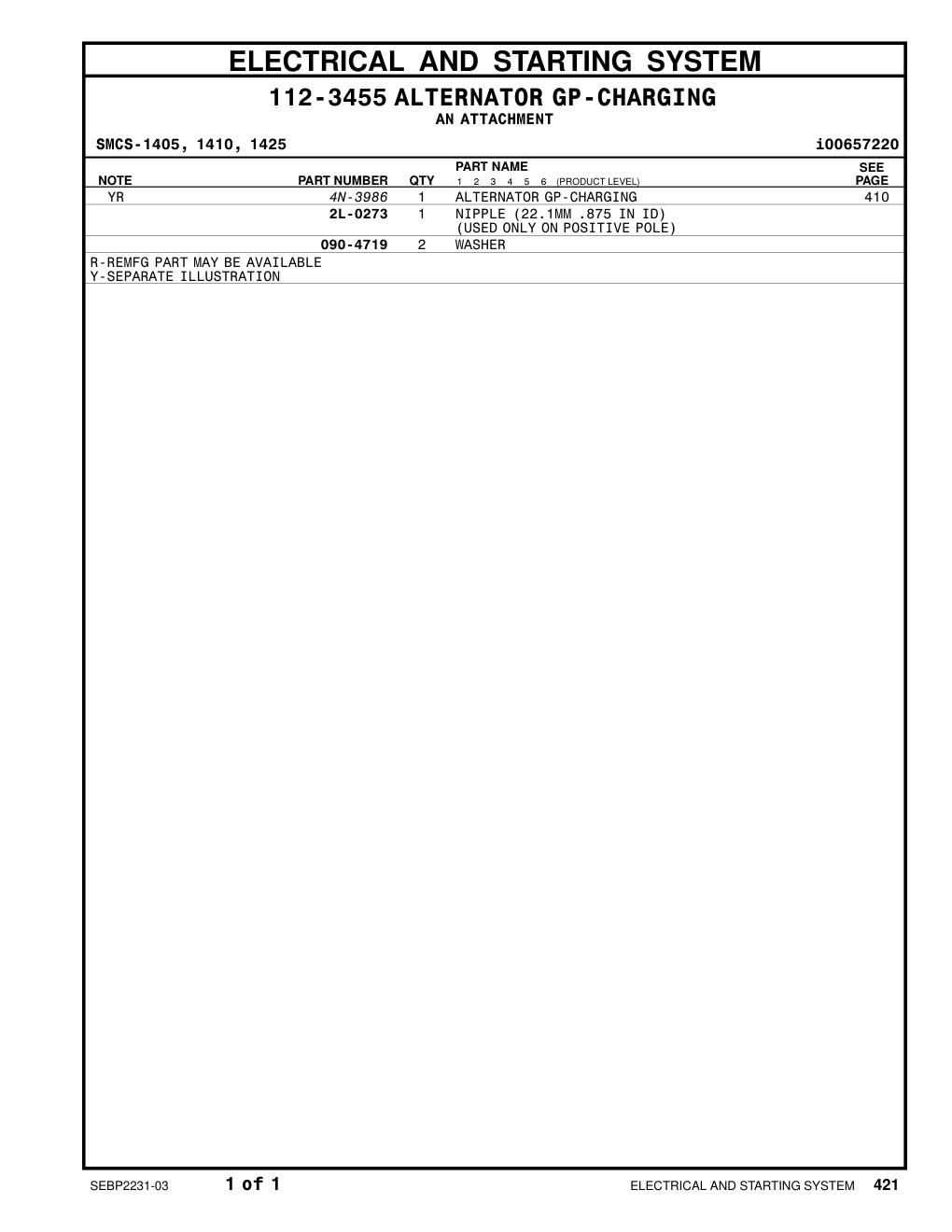

| 4N-3986 |
ALTERNATOR GP-CHARGING
|
1 | 442 |
| 2L-0273 |
NIPPLE (22.1MM .875 IN ID) (USED ONLY ON POSITIVE POLE)
|
1 | 442 |
| 2V-7397 |
CABLE AS
|
1 | 444 |
| 5P-0747 |
CABLE (00 GA)
|
1 | 444 |
| 5M-9205 |
TERMINAL AS (NEG) ( )
|
1 | 444 |
| 5M-9204 |
TERMINAL AS (POS) ( ) (EACH INCLUDES)
|
1 | 444 |
| 1M-6119 |
BOLT-BATTERY TERMINAL (5/16-18X1.375IN)
|
1 | 444 |
| 1M-6120 |
NUT-BATTERY TERMINAL (5/16-18 THD)
|
1 | 444 |
| 9G-0004 |
COVER (RED) ( )
|
2 | 444 |
| 9G-0003 |
COVER (BLACK) ( )
|
2 | 444 |
| 9G-4232 |
BATTERY (12 VOLT) (EACH INCLUDES)
|
2 | 444 |
| 7N-0060 |
VENT AS
|
6 | 444 |
| 8L-8413 |
STRAP-CABLE (1.12IN DIA)
|
2 | 444 |
| 2V-7397 |
CABLE AS
|
1 | 445 |
| 5P-0747 |
CABLE (00 GA) (20CM)
|
1 | 445 |
| 8T-9757 |
TERMINAL AS (NEG)
|
1 | 445 |
| 8C-5917 |
TERMINAL AS (POS)
|
1 | 445 |
| 1M-6119 |
BOLT-BATTERY TERMINAL (5/16-18X1.375IN)
|
2 | 445 |
| 1M-6120 |
NUT-BATTERY TERMINAL (5/16-18 THD)
|
2 | 445 |
| 9G-0004 |
COVER (RED)
|
2 | 445 |
| 9G-0003 |
COVER (BLACK)
|
2 | 445 |
| 9X-9720 |
BATTERY (12 VOLT)
|
2 | 445 |
| 8L-8413 |
STRAP-CABLE (1.12IN DIA)
|
2 | 445 |
| 9X-9730 |
BATTERY (12 VOLT)(DRY) (EACH INCLUDES)
|
2 | 446 |
| 7N-0060 |
VENT AS
|
6 | 446 |
| 8L-8413 |
STRAP-CABLE (1.12IN DIA)
|
2 | 446 |
| 9G-0004 |
COVER (RED)
|
2 | 446 |
| 2V-7397 |
CABLE AS
|
1 | 446 |
| 5P-0747 |
CABLE (00 GA)
|
1 | 446 |
| 5M-9204 |
TERMINAL AS (POS) (+)
|
1 | 446 |
| 5M-9205 |
TERMINAL AS (NEG) (-) (EA TERM AS INCL)
|
1 | 446 |
| 1M-6119 |
BOLT (5/16-18X1.375IN)
|
1 | 446 |
| 1M-6120 |
NUT (5/16-18 THD)
|
1 | 446 |
| 9G-0003 |
COVER (BLACK)
|
2 | 446 |
| 3K-8106 |
SCREW-MACHINE
|
2 | 447 |
| 4B-4863 |
WASHER (1.2MM THK)
|
2 | 447 |
| 6T-3644 |
CIRCUIT BREAKER AS (20 AMP)
|
1 | 447 |
| 6V-8376 |
SCREW-MACHINE (8-32X.25IN)
|
2 | 447 |
| 9B-7233 |
LOCKWASHER (NO.8)
|
2 | 447 |
| 3K-8106 |
SCREW-MACHINE
|
2 | 448 |
| 4B-4863 |
WASHER (1.2MM THK)
|
2 | 448 |
| 6T-3645 |
CIRCUIT BREAKER (60 AMP)
|
1 | 448 |
| 9Y-3904 |
COVER-CAMSHAFT
|
2 | 449 |
| 5M-2894 |
WASHER (2.5MM THK)
|
20 | 449 |
| 3E-1854 |
SENSOR GP-PRESSURE (MAPS)
|
1 | 449 |
| 9X-4836 |
CONTROL GP-ENGINE MONITORING (DETENATION SENSOR)
|
1 | 449 |
| 2W-2072 |
SEAL-O-RING (221.62MM ID)
|
2 | 449 |
| 0S-1594 |
BOLT (3/8X1.0IN)
|
10 | 449 |
| 0L-2070 |
BOLT (3/8-16X2.25IN)
|
4 | 449 |
| 5L-5840 |
WASHER
|
2 | 449 |
