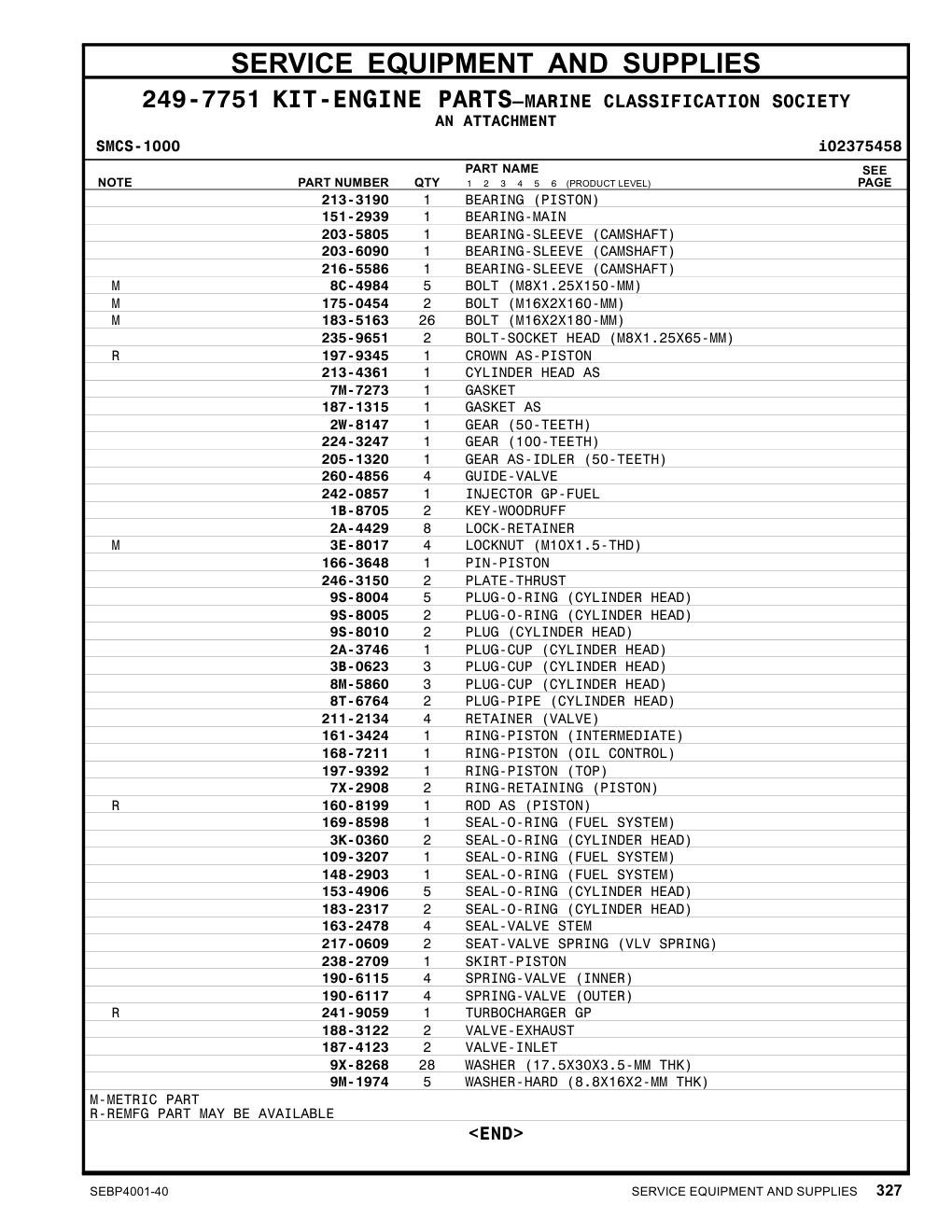

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 213-3190 |
BEARING (PISTON)
|
1 | 345 |
| 151-2939 |
BEARING-MAIN
|
1 | 345 |
| 203-5805 |
BEARING-SLEEVE (CAMSHAFT)
|
1 | 345 |
| 203-6090 |
BEARING-SLEEVE (CAMSHAFT)
|
1 | 345 |
| 216-5586 |
BEARING-SLEEVE (CAMSHAFT)
|
1 | 345 |
| 8C-4984 |
BOLT (M8X1.25X150-MM)
|
5 | 345 |
| 175-0454 |
BOLT (M16X2X160-MM)
|
2 | 345 |
| 183-5163 |
BOLT (M16X2X180-MM)
|
26 | 345 |
| 235-9651 |
BOLT-SOCKET HEAD (M8X1.25X65-MM)
|
2 | 345 |
| 197-9345 |
CROWN AS-PISTON
|
1 | 345 |
| 213-4361 |
CYLINDER HEAD AS
|
1 | 345 |
| 7M-7273 |
GASKET
|
1 | 345 |
| 187-1315 |
GASKET AS
|
1 | 345 |
| 2W-8147 |
GEAR (50-TEETH)
|
1 | 345 |
| 224-3247 |
GEAR (100-TEETH)
|
1 | 345 |
| 205-1320 |
GEAR AS-IDLER (50-TEETH)
|
1 | 345 |
| 260-4856 |
GUIDE-VALVE
|
4 | 345 |
| 1B-8705 |
KEY-WOODRUFF
|
2 | 345 |
| 2A-4429 |
LOCK-RETAINER
|
8 | 345 |
| 3E-8017 |
LOCKNUT (M10X1.5-THD)
|
4 | 345 |
| 166-3648 |
PIN-PISTON
|
1 | 345 |
| 246-3150 |
PLATE-THRUST
|
2 | 345 |
| 9S-8004 |
PLUG-O-RING (CYLINDER HEAD)
|
5 | 345 |
| 9S-8005 |
PLUG-O-RING (CYLINDER HEAD)
|
2 | 345 |
| 9S-8010 |
PLUG (CYLINDER HEAD)
|
2 | 345 |
| 2A-3746 |
PLUG-CUP (CYLINDER HEAD)
|
1 | 345 |
| 3B-0623 |
PLUG-CUP (CYLINDER HEAD)
|
3 | 345 |
| 8M-5860 |
PLUG-CUP (CYLINDER HEAD)
|
3 | 345 |
| 8T-6764 |
PLUG-PIPE (CYLINDER HEAD)
|
2 | 345 |
| 211-2134 |
RETAINER (VALVE)
|
4 | 345 |
| 161-3424 |
RING-PISTON (INTERMEDIATE)
|
1 | 345 |
| 168-7211 |
RING-PISTON (OIL CONTROL)
|
1 | 345 |
| 197-9392 |
RING-PISTON (TOP)
|
1 | 345 |
| 7X-2908 |
RING-RETAINING (PISTON)
|
2 | 345 |
| 160-8199 |
ROD AS (PISTON)
|
1 | 345 |
| 169-8598 |
SEAL-O-RING (FUEL SYSTEM)
|
1 | 345 |
| 3K-0360 |
SEAL-O-RING (CYLINDER HEAD)
|
2 | 345 |
| 109-3207 |
SEAL-O-RING (FUEL SYSTEM)
|
1 | 345 |
| 148-2903 |
SEAL-O-RING (FUEL SYSTEM)
|
1 | 345 |
| 153-4906 |
SEAL-O-RING (CYLINDER HEAD)
|
5 | 345 |
| 183-2317 |
SEAL-O-RING (CYLINDER HEAD)
|
2 | 345 |
| 163-2478 |
SEAL-VALVE STEM
|
4 | 345 |
| 217-0609 |
SEAT-VALVE SPRING (VLV SPRING)
|
2 | 345 |
| 238-2709 |
SKIRT-PISTON
|
1 | 345 |
| 190-6115 |
SPRING-VALVE (INNER)
|
4 | 345 |
| 190-6117 |
SPRING-VALVE (OUTER)
|
4 | 345 |
| 241-9059 |
TURBOCHARGER GP
|
1 | 345 |
| 188-3122 |
VALVE-EXHAUST
|
2 | 345 |
| 187-4123 |
VALVE-INLET
|
2 | 345 |
| 9X-8268 |
WASHER (17.5X30X3.5-MM THK)
|
28 | 345 |
