| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 271-5658 |

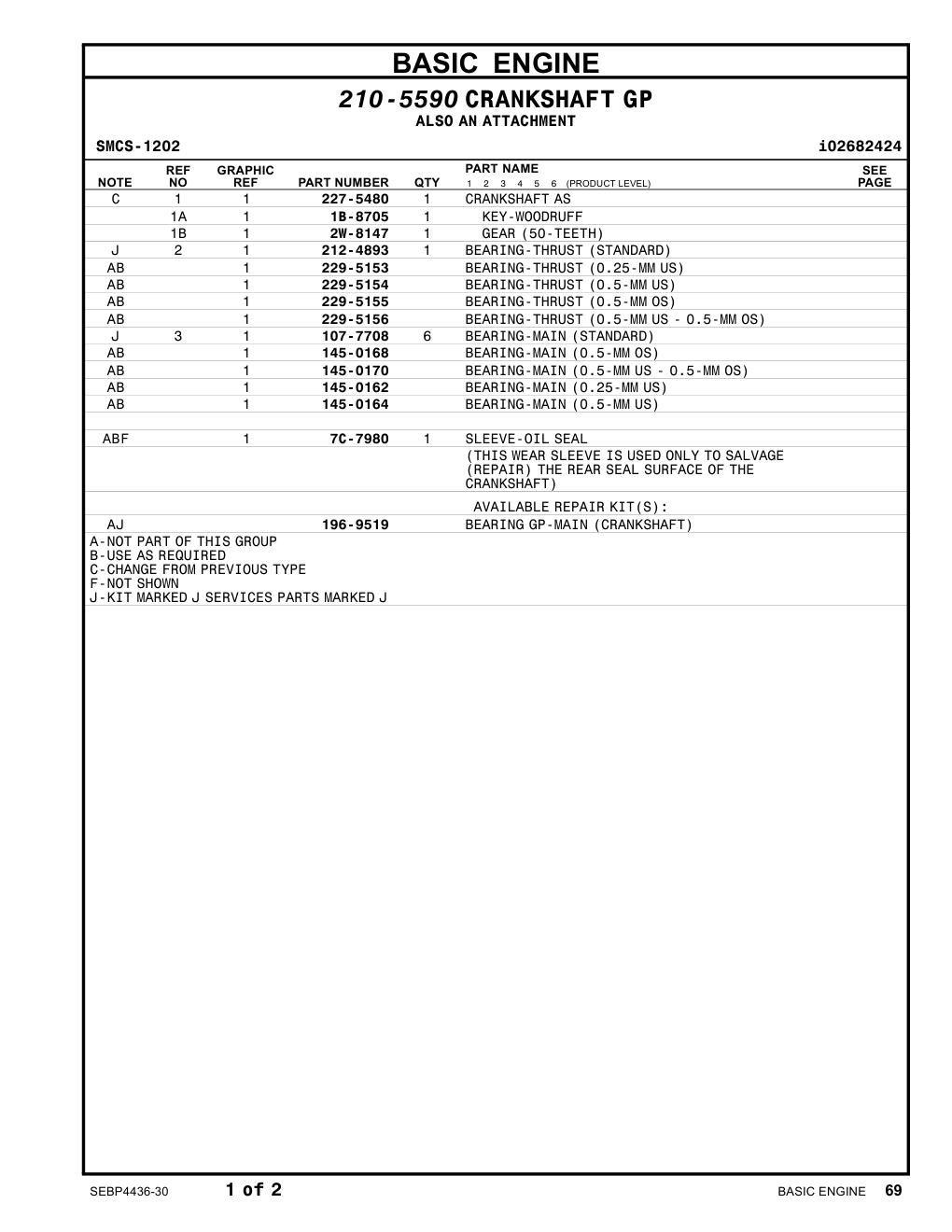

CRANKSHAFT AS
|
1 | 168 |
| 1B-8705 |
KEY-WOODRUFF
|
1 | 168 |
| 2W-8147 |
GEAR (50-TEETH)
|
1 | 168 |
| 212-4893 |
BEARING-THRUST (STANDARD)
|
1 | 168 |
| 229-5153 |
BEARING-THRUST (0.25-MM US)
|
1 | 168 |
| 229-5154 |
BEARING-THRUST (0.5-MM US)
|
1 | 168 |
| 229-5155 |
BEARING-THRUST (0.5-MM OS)
|
1 | 168 |
| 229-5156 |
BEARING-THRUST (0.5-MM US - 0.5-MM OS)
|
1 | 168 |
| 107-7708 |
BEARING-MAIN (STANDARD)
|
6 | 168 |
| 145-0168 |
BEARING-MAIN (0.5-MM OS)
|
1 | 168 |
| 145-0170 |
BEARING-MAIN (0.5-MM US - 0.5-MM OS)
|
1 | 168 |
| 145-0162 |
BEARING-MAIN (0.25-MM US)
|
1 | 168 |
| 145-0164 |
BEARING-MAIN (0.5-MM US)
|
1 | 168 |
| 7C-7980 |
SLEEVE-OIL SEAL (THIS WEAR SLEEVE IS USED ONLY TO SALVAGE (REPAIR) THE REAR SEAL SURFACE OF THE CRANKSHAFT) AVAILABLE REPAIR KIT(S):
|
1 | 168 |
| 196-9519 |
BEARING GP-MAIN (CRANKSHAFT)
|
1 | 168 |
| 1B-8705 |
KEY-WOODRUFF
|
1 | 170 |
| 2W-8147 |
GEAR (50-TEETH)
|
1 | 170 |
| 212-4893 |
BEARING-THRUST (STANDARD)
|
1 | 170 |
| 229-5153 |
BEARING-THRUST (0.25-MM US)
|
1 | 170 |
| 229-5154 |
BEARING-THRUST (0.5-MM US)
|
1 | 170 |
| 229-5155 |
BEARING-THRUST (0.5-MM OS)
|
1 | 170 |
| 229-5156 |
BEARING-THRUST (0.5-MM US - 0.5-MM OS)
|
1 | 170 |
| 107-7708 |
BEARING-MAIN (STANDARD)
|
6 | 170 |
| 145-0168 |
BEARING-MAIN (0.5-MM OS)
|
1 | 170 |
| 145-0170 |
BEARING-MAIN (0.5-MM US - 0.5-MM OS)
|
1 | 170 |
| 145-0162 |
BEARING-MAIN (0.25-MM US)
|
1 | 170 |
| 145-0164 |
BEARING-MAIN (0.5-MM US)
|
1 | 170 |
| 7C-7980 |
SLEEVE-OIL SEAL (THIS WEAR SLEEVE IS USED ONLY TO SALVAGE (REPAIR) THE REAR SEAL SURFACE OF THE CRANKSHAFT) AVAILABLE REPAIR KIT(S):
|
1 | 170 |
| 196-9519 |
BEARING GP-MAIN (CRANKSHAFT)
|
1 | 170 |
| 271-5658 |
CRANKSHAFT AS
|
1 | 172 |
| 1B-8705 |
KEY-WOODRUFF
|
1 | 172 |
| 2W-8147 |
GEAR (50-TEETH)
|
1 | 172 |
| 212-4893 |
BEARING-THRUST (STANDARD)
|
1 | 172 |
| 229-5153 |
BEARING-THRUST (0.25-MM US)
|
1 | 172 |
| 229-5154 |
BEARING-THRUST (0.5-MM US)
|
1 | 172 |
| 229-5155 |
BEARING-THRUST (0.5-MM OS)
|
1 | 172 |
| 229-5156 |
BEARING-THRUST (0.5-MM US - 0.5-MM OS)
|
1 | 172 |
| 107-7708 |
BEARING-MAIN (STANDARD)
|
6 | 172 |
| 145-0168 |
BEARING-MAIN (0.5-MM OS)
|
1 | 172 |
| 145-0170 |
BEARING-MAIN (0.5-MM US - 0.5-MM OS)
|
1 | 172 |
| 145-0162 |
BEARING-MAIN (0.25-MM US)
|
1 | 172 |
| 145-0164 |
BEARING-MAIN (0.5-MM US)
|
1 | 172 |
| 7C-7980 |
SLEEVE-OIL SEAL (THIS WEAR SLEEVE IS USED ONLY TO SALVAGE (REPAIR) THE REAR SEAL SURFACE OF THE CRANKSHAFT) AVAILABLE REPAIR KIT(S):
|
1 | 172 |
| 196-9519 |
BEARING GP-MAIN (CRANKSHAFT)
|
1 | 172 |
