| Part No. | Name | Qty | Page |
|---|---|---|---|
| 228-4798 |

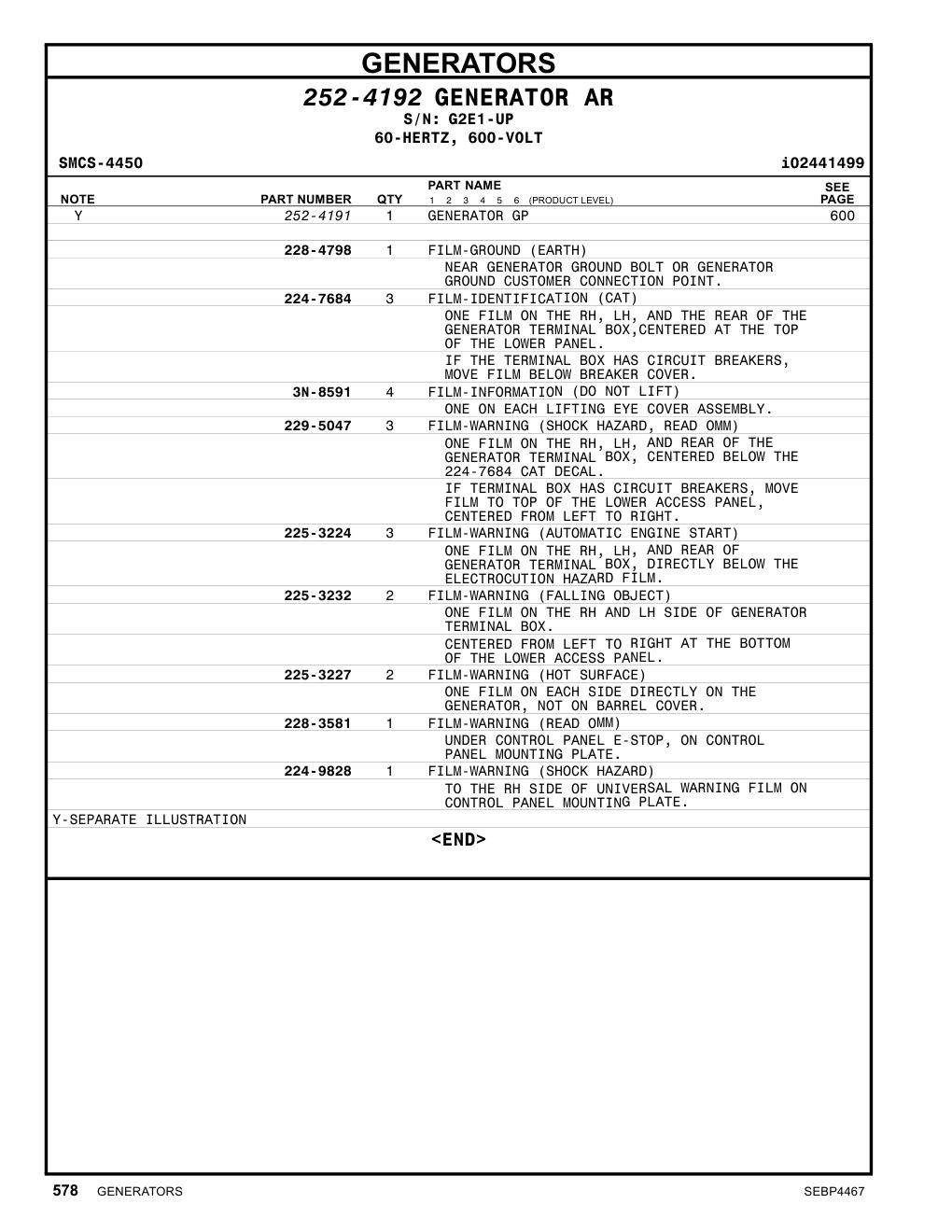

FILM-GROUND (EARTH) NEAR GENERATOR GROUND BOLT OR GENERATOR GROUND CUSTOMER CONNECTION POINT.
|
1 | 684 |
| 224-7684 |
FILM-IDENTIFICATION (CAT) ONE FILM ON THE RH, LH, AND THE REAR OF THE GENERATOR TERMINAL BOX,CENTERED AT THE TOP OF THE LOWER PANEL. IF THE TERMINAL BOX HAS CIRCUIT BREAKERS, MOVE FILM BELOW BREAKER COVER.
|
3 | 684 |
| 3N-8591 |
FILM-INFORMATION (DO NOT LIFT) ONE ON EACH LIFTING EYE COVER ASSEMBLY.
|
4 | 684 |
| 229-5047 |
FILM-WARNING (SHOCK HAZARD, READ OMM) ONE FILM ON THE RH, LH, AND REAR OF THE GENERATOR TERMINAL BOX, CENTERED BELOW THE 224-7684 CAT DECAL. IF TERMINAL BOX HAS CIRCUIT BREAKERS, MOVE FILM TO TOP OF THE LOWER ACCESS PANEL, CENTERED FROM LEFT TO RIGHT.
|
3 | 684 |
| 225-3224 |
FILM-WARNING (AUTOMATIC ENGINE START) ONE FILM ON THE RH, LH, AND REAR OF GENERATOR TERMINAL BOX, DIRECTLY BELOW THE ELECTROCUTION HAZARD FILM.
|
3 | 684 |
| 225-3232 |
FILM-WARNING (FALLING OBJECT) ONE FILM ON THE RH AND LH SIDE OF GENERATOR TERMINAL BOX. CENTERED FROM LEFT TO RIGHT AT THE BOTTOM OF THE LOWER ACCESS PANEL.
|
2 | 684 |
| 225-3227 |
FILM-WARNING (HOT SURFACE) ONE FILM ON EACH SIDE DIRECTLY ON THE GENERATOR, NOT ON BARREL COVER.
|
2 | 684 |
| 228-3581 |
FILM-WARNING (READ OMM) UNDER CONTROL PANEL E-STOP, ON CONTROL PANEL MOUNTING PLATE.
|
1 | 684 |
| 224-9828 |
FILM-WARNING (SHOCK HAZARD) TO THE RH SIDE OF UNIVERSAL WARNING FILM ON CONTROL PANEL MOUNTING PLATE.
|
1 | 684 |
| 253-3514 |
ADAPTER GP-GENERATOR COUPLING
|
1 | 706 |
| 253-3510 |
BRACKET GP-MOUNTING (GENERATOR)
|
1 | 706 |
| 253-3512 |
BRACKET GP-MOUNTING (GENERATOR)
|
1 | 706 |
| 253-3500 |
COVER GP-GENERATOR (DRIP)
|
1 | 706 |
| 253-3516 |
EXCITER GP (POWER)
|
1 | 706 |
| 253-3521 |
EXCITER GP (PERMANENT MAGNET)
|
1 | 706 |
| 256-4245 |
ROTOR AS-MAIN
|
1 | 706 |
| 253-3502 |
SCREEN GP-AIR
|
1 | 706 |
| 256-4227 |
STATOR GP-MAIN
|
1 | 706 |
| 253-3527 |
SLEEVE-SHAFT
|
1 | 706 |
