| Part No. | Name | Qty | Page |
|---|---|---|---|
| 5P-5528 |
ADAPTER-O-RING
|
1 | 605 |
| 6V-5048 |
SEAL-O-RING
|
1 | 605 |
| 245-4101 |

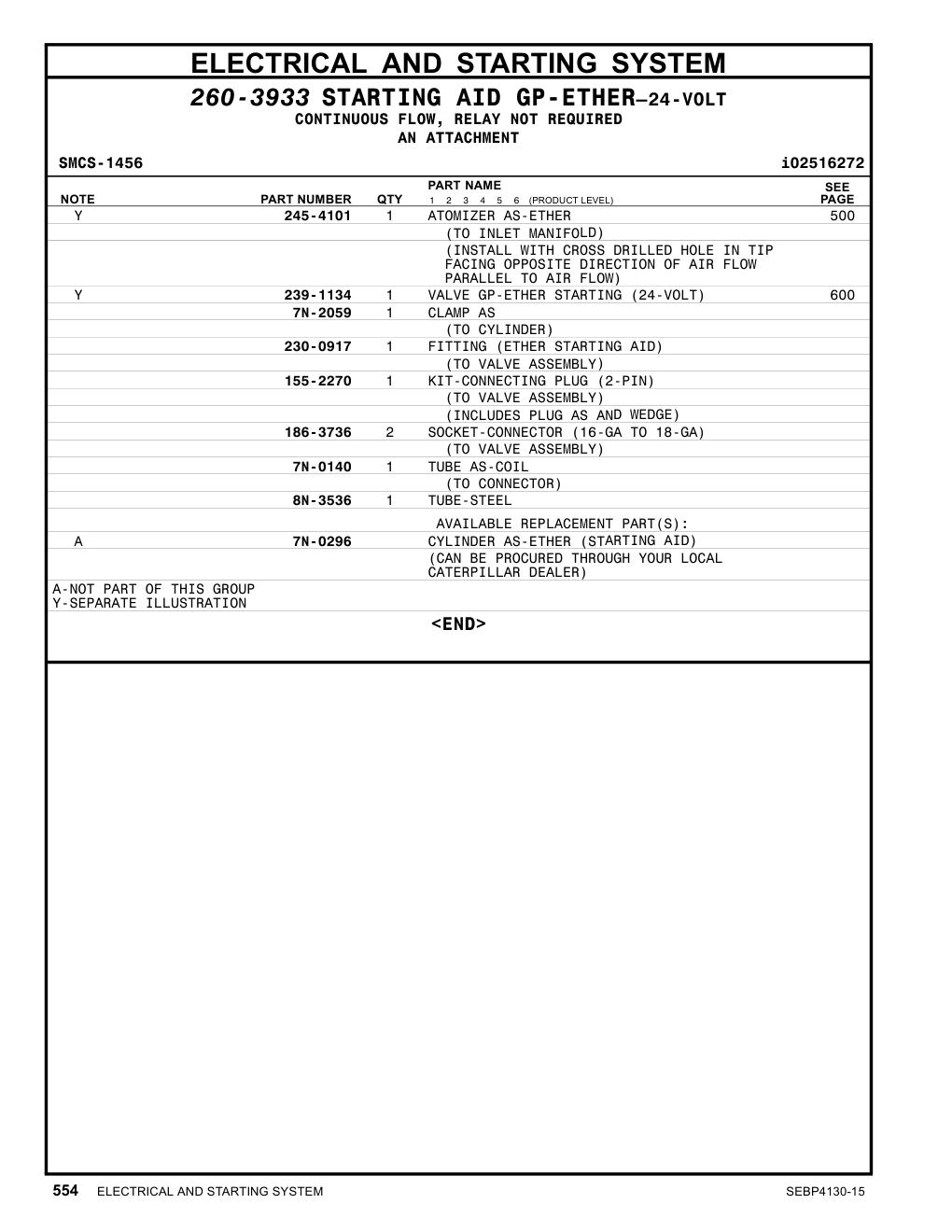

ATOMIZER AS-ETHER (TO INLET MANIFOLD) (INSTALL WITH CROSS DRILLED HOLE IN TIP FACING OPPOSITE DIRECTION OF AIR FLOW PARALLEL TO AIR FLOW)
|
1 | 659 |
| 7N-2059 |
CLAMP AS (TO CYLINDER)
|
1 | 659 |
| 230-0917 |
FITTING (ETHER STARTING AID) (TO VALVE ASSEMBLY)
|
1 | 659 |
| 155-2270 |
KIT-CONNECTING PLUG (2-PIN) (TO VALVE ASSEMBLY) (INCLUDES PLUG AS AND WEDGE)
|
1 | 659 |
| 186-3736 |
SOCKET-CONNECTOR (16-GA TO 18-GA) (TO VALVE ASSEMBLY)
|
2 | 659 |
| 7N-0140 |
TUBE AS-COIL (TO CONNECTOR)
|
1 | 659 |
| 8N-3536 |
TUBE-STEEL AVAILABLE REPLACEMENT PART(S):
|
1 | 659 |
| 7N-0296 |
CYLINDER AS-ETHER (STARTING AID) (CAN BE PROCURED THROUGH YOUR LOCAL CATERPILLAR DEALER)
|
1 | 659 |
| 8S-2332 |
BOLT-12 POINT HEAD (5/8-11X1.75IN)
|
3 | 660 |
| 6V-0927 |
STARTING MOTOR GP-ELECTRIC
|
1 | 660 |
| 4N-1059 |
GASKET
|
1 | 660 |
| 9F-4337 |
WIRE AS
|
1 | 660 |
| 7M-0326 |
CONNECTOR
|
1 | 661 |
| 9H-3757 |
WASHER (0.516X1X0.094-IN THK)
|
2 | 661 |
| 1S-7446 |
SCREW-MACHINE (8-32X0.437-IN)
|
3 | 661 |
| 8C-9660 |
WASHER (4.6X7.9X0.8-MM THK)
|
3 | 661 |
| 9S-2544 |
SCREW-HEX HEAD (8-32X11.13-MM)
|
9 | 661 |
| 7M-0327 |
WASHER-THRUST (17.4X25.4X1.6-MM THK)
|
1 | 661 |
| 3T-3418 |
FRAME AS-END
|
1 | 661 |
| 3T-3424 |
PLUG-FELT
|
1 | 661 |
| 3T-3423 |
CUP
|
1 | 661 |
| 9G-4101 |
BUSHING-END
|
1 | 661 |
| 3T-9525 |
PLATE AS-BRUSH
|
1 | 661 |
| 9F-5599 |
LOCKWASHER
|
12 | 661 |
| 6T-0371 |
INSULATOR
|
1 | 661 |
| 6T-0363 |
HOLDER AS-BRUSH (STARTING MOTOR) (EACH INCLUDES)
|
6 | 661 |
| 3T-9494 |
SPRING (STARTING MOTOR BRUSH)
|
1 | 661 |
| 3T-4709 |
PLATE
|
3 | 661 |
| 3T-4710 |
PLATE
|
3 | 661 |
| 2L-6679 |
PLATE-INSULATOR
|
3 | 661 |
| 7F-3525 |
WASHER-BUSHING (0.207X0.39X0.09-IN THK)
|
6 | 661 |
| 6T-0372 |
PLATE
|
1 | 661 |
| 5P-6298 |
SCREW-MACHINE (10-32X0.5-IN)
|
12 | 661 |
| 7F-3491 |
WASHER (0.516X1X0.094-IN THK)
|
2 | 661 |
| 3T-3422 |
WIRE AS
|
1 | 661 |
| 2J-8163 |
SEAL-O-RING
|
2 | 661 |
| 7X-3373 |
BOLT (5/16-18X0.88-IN)
|
1 | 661 |
| 3T-3434 |
PLUG
|
6 | 661 |
| 5J-5314 |
BOLT (5/16-18X1.5-IN)
|
5 | 661 |
| 3L-3380 |
BUSHING-TERMINAL
|
1 | 661 |
| 036-9821 |
WASHER
|
1 | 661 |
| 4M-1828 |
RETAINER-SPRING
|
1 | 661 |
| 4M-1829 |
BOOT-RUBBER
|
1 | 661 |
| 4M-1827 |
RETAINER-SPRING
|
1 | 661 |
| 9M-7609 |
SPRING (SHIFT LEVER)
|
1 | 661 |
| 8C-3089 |
SEAL-O-RING
|
1 | 661 |
| 4M-1853 |
LEVER AS-SHIFT
|
1 | 661 |
| 5M-3034 |
LOCKNUT (5/16-24-THD)
|
1 | 661 |
