| Part No. | Name | Qty | Page |
|---|---|---|---|
| 099-2374 |
BOLT-SOCKET HEAD (M5X0.8X12-MM)
|
4 | 130 |
| 225-5222 |
VALVE AS-PRESSURE RELIEF (AIR COMPRESSOR)
|
1 | 130 |
| 2M-9780 |
SEAL-O-RING
|
1 | 130 |
| 6V-5221 |
BOLT (M8X1.25X80-MM)
|
6 | 130 |
| 8T-0267 |
BOLT-SOCKET HEAD (M6X1X12-MM)
|
8 | 130 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK) AVAILABLE REPAIR KIT(S):
|
6 | 130 |
| 217-5237 |
KIT-UNLOADER (AIR COMPRESSOR) (EACH INCLUDES UNLOADER CAP GASKET, ESS BALANCE PISTON, ESS SPRING, ESS PISTON, AND O-RINGS)
|
2 | 130 |
| 217-5240 |
KIT-SEAL (AIR COMPRESSOR) (INCLUDES O-RING, CRANKCASE COVER GASKET, AND REAR COVER GASKET)
|
1 | 130 |
| 5D-1026 |
CLAMP-HOSE
|
2 | 135 |
| 6H-7062 |
SPACER (13.5X25X19-MM THK)
|
1 | 135 |
| 6V-4292 |
ELBOW (90-DEG)
|
1 | 135 |
| 8R-3600 |
ANGLE
|
1 | 135 |
| 204-1611 |
STRAP-CABLE
|
1 | 135 |
| 222-2889 |
BRACKET
|
1 | 135 |
| 223-3505 |
SEAL
|
1 | 135 |
| 235-0181 |
HOSE AS
|
1 | 135 |
| 235-0182 |
HOSE AS
|
1 | 135 |

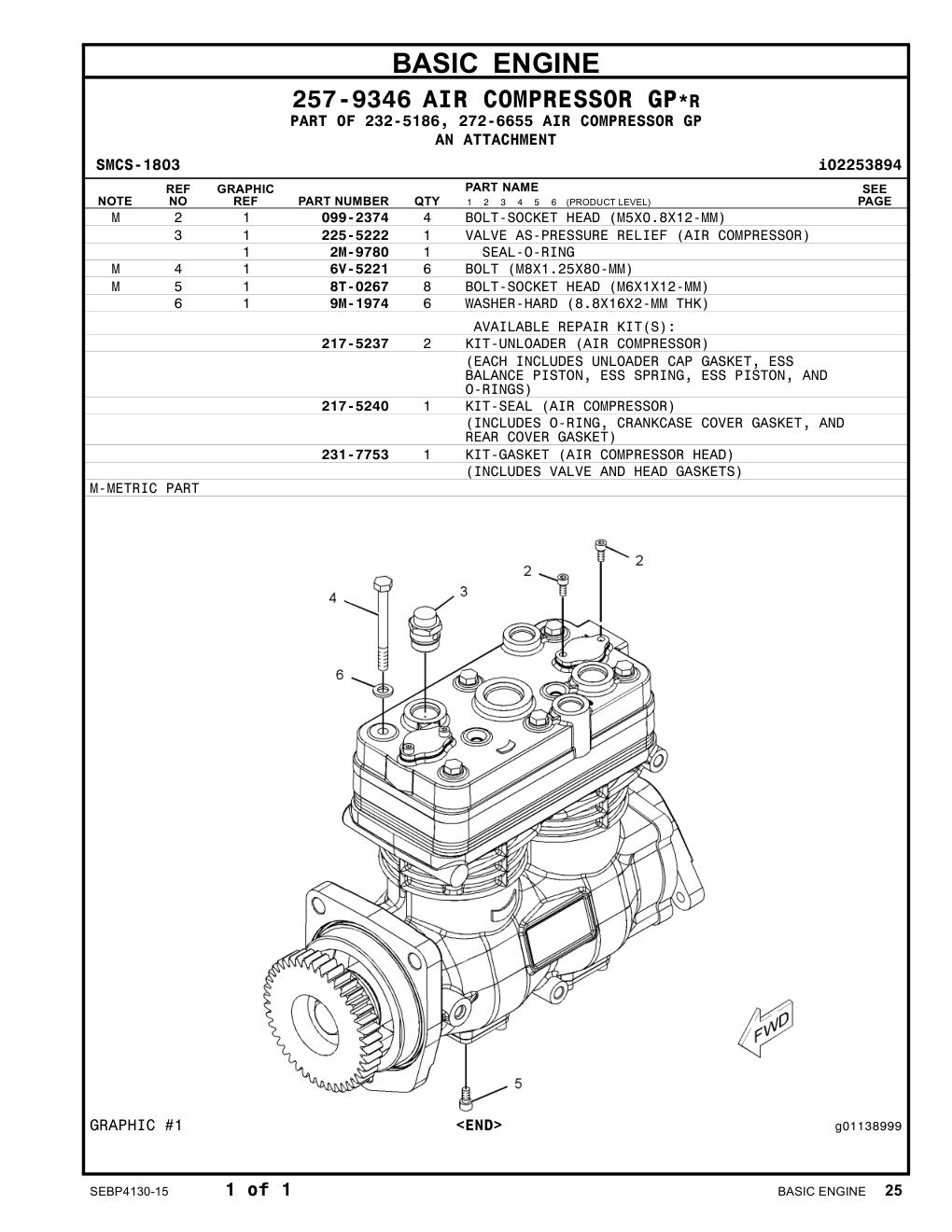

| 257-9346 |
AIR COMPRESSOR GP
|
1 | 135 |
| 272-6656 |
TUBE AS
|
1 | 135 |
| 005-4173 |
ELBOW (90-DEG)
|
1 | 135 |
| 030-7946 |
ELBOW (90-DEG)
|
1 | 135 |
| 159-5255 |
ADAPTER
|
1 | 135 |
| 1B-3057 |
CLIP
|
1 | 135 |
| 1B-8471 |
CLIP
|
1 | 135 |
| 2Y-5829 |
NUT (M10X1.15-THD)
|
1 | 135 |
| 3J-7354 |
SEAL-O-RING
|
1 | 135 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
4 | 135 |
| 6D-3479 |
CLIP
|
1 | 135 |
| 6V-3251 |
SEAL-O-RING
|
1 | 135 |
| 6V-4248 |
BOLT (M10X1.5X25-MM)
|
4 | 135 |
| 6V-5839 |
WASHER (11X21X2.5-MM THK)
|
9 | 135 |
| 6V-6317 |
BOLT (M10X1.5X20-MM)
|
3 | 135 |
| 6V-6609 |
SEAL-O-RING
|
4 | 135 |
| 6V-8197 |
BOLT (M12X1.75X40-MM)
|
4 | 135 |
| 8M-0505 |
CONNECTOR
|
2 | 135 |
| 5P-1505 |
HOSE (8-CM)
|
1 | 135 |
