| Part No. | Name | Qty | Page |
|---|---|---|---|

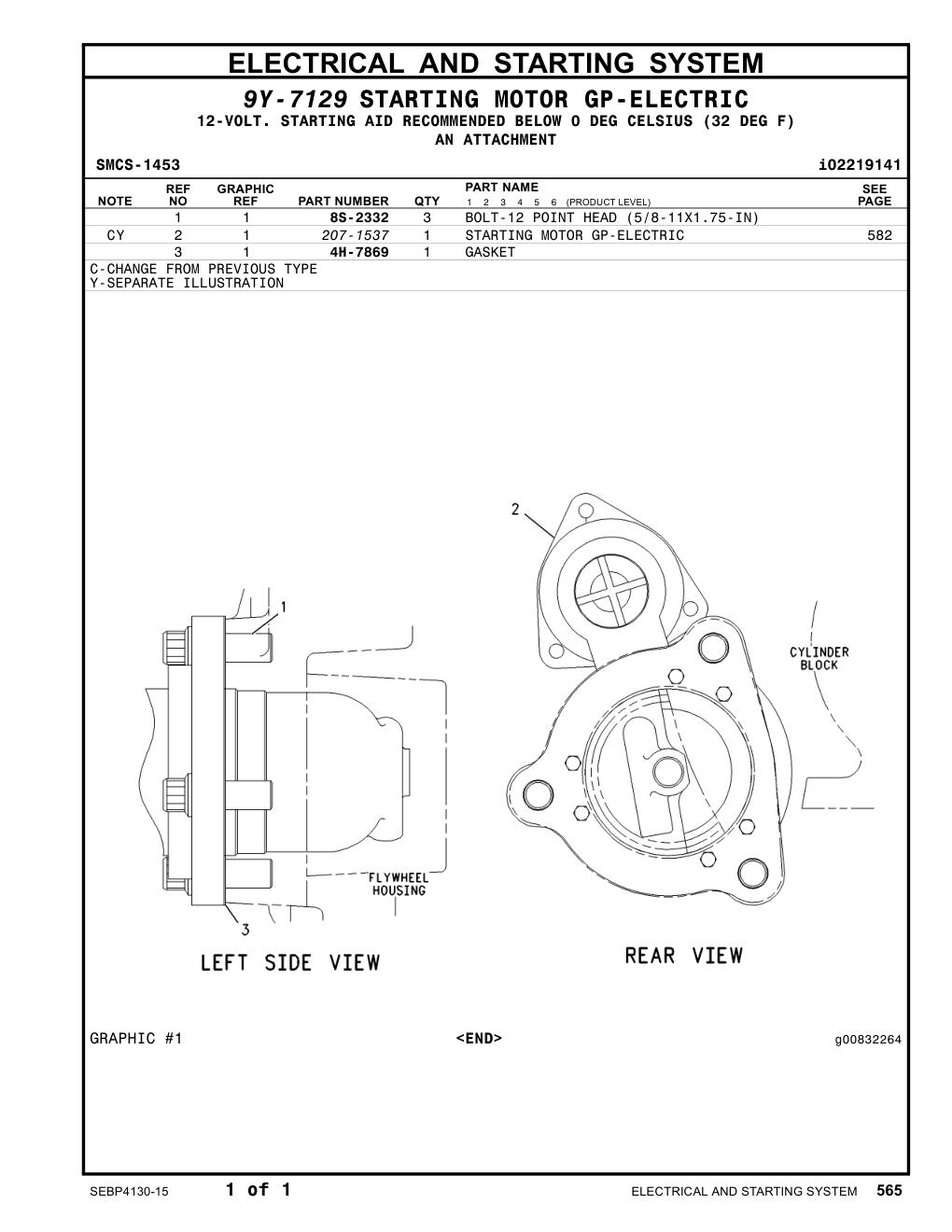

| 8S-2332 |
BOLT-12 POINT HEAD (5/8-11X1.75-IN)
|
3 | 670 |
| 4H-7869 |
GASKET
|
1 | 670 |
| 3T-3434 |
PLUG
|
6 | 687 |
| 7T-3279 |
HOUSING AS
|
1 | 687 |
| 8T-8566 |
TERMINAL AS
|
1 | 687 |
| 6V-8188 |
NUT (1/2-13-THD)
|
4 | 687 |
| 7X-0562 |
WASHER-HARD (13.5X19X0.8-MM THK)
|
4 | 687 |
| 3T-3422 |
WIRE AS
|
1 | 687 |
| 8T-8570 |
HOLDER AS-BRUSH
|
1 | 687 |
| 8T-8568 |
COIL AS-FIELD
|
1 | 687 |
| 7T-3454 |
INSULATOR
|
1 | 687 |
| 7T-3271 |
CONNECTOR
|
1 | 687 |
| 7T-3451 |
INSULATOR-TERMINAL
|
1 | 687 |
| 8T-8569 |
INSULATOR-TERMINAL
|
1 | 687 |
| 5S-7349 |
BOLT (1/4-20X0.5-IN)
|
4 | 687 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 687 |
| 8H-1141 |
SHOE-POLE
|
4 | 687 |
| 3F-0379 |
SCREW-POLE SHOE (3/8-24-THD)
|
8 | 687 |
| 7T-3275 |
ARMATURE AS (12-VOLT)
|
1 | 687 |
| 3E-7775 |
HOUSING AS
|
1 | 687 |
| 4M-1831 |
PLUG-LEVER HOUSING
|
1 | 687 |
| 7L-2894 |
GASKET
|
1 | 687 |
| 036-9823 |
BOLT (1/4-28X1-IN)
|
5 | 687 |
| 6N-3826 |
DRIVE AS-MOTOR
|
1 | 687 |
| 7T-3974 |
HOUSING AS-DRIVE
|
1 | 687 |
| 7X-3373 |
BOLT (5/16-18X0.88-IN)
|
6 | 687 |
| 206-8789 |
KIT-SOLENOID (12-VOLT) (STARTING MOTOR)
|
1 | 687 |
| 6V-8378 |
NUT (10-32-THD)
|
2 | 687 |
| 8F-1434 |
LOCKWASHER
|
2 | 687 |
| 8T-0328 |
WASHER-HARD (5.5X10X1-MM THK)
|
2 | 687 |
| 8T-9884 |
KIT-INSULATOR (STARTING MOTOR) (INCLUDES INSULATORS AND BUSHING)
|
1 | 687 |
| 8T-9885 |
KIT-BRUSH (STARTING MOTOR) (INCLUDES BRUSHES, SPRINGS, SCREWS, AND SEAL)
|
1 | 687 |
| 7T-3268 |
KIT-LEVER (STARTING MOTOR) (INCLUDES LEVER ASSEMBLIES, SEALS, NUT, GASKET, AND RETAINER) AVAILABLE REPAIR KIT(S):
|
1 | 687 |
| 7T-3267 |
KIT-BUSHING (STARTING MOTOR) (INCLUDES BUSHINGS, WICKS, CUPS, SEALS, GASKET, SCREW AS, WASHERS, SPACER, AND NUT)
|
1 | 687 |
