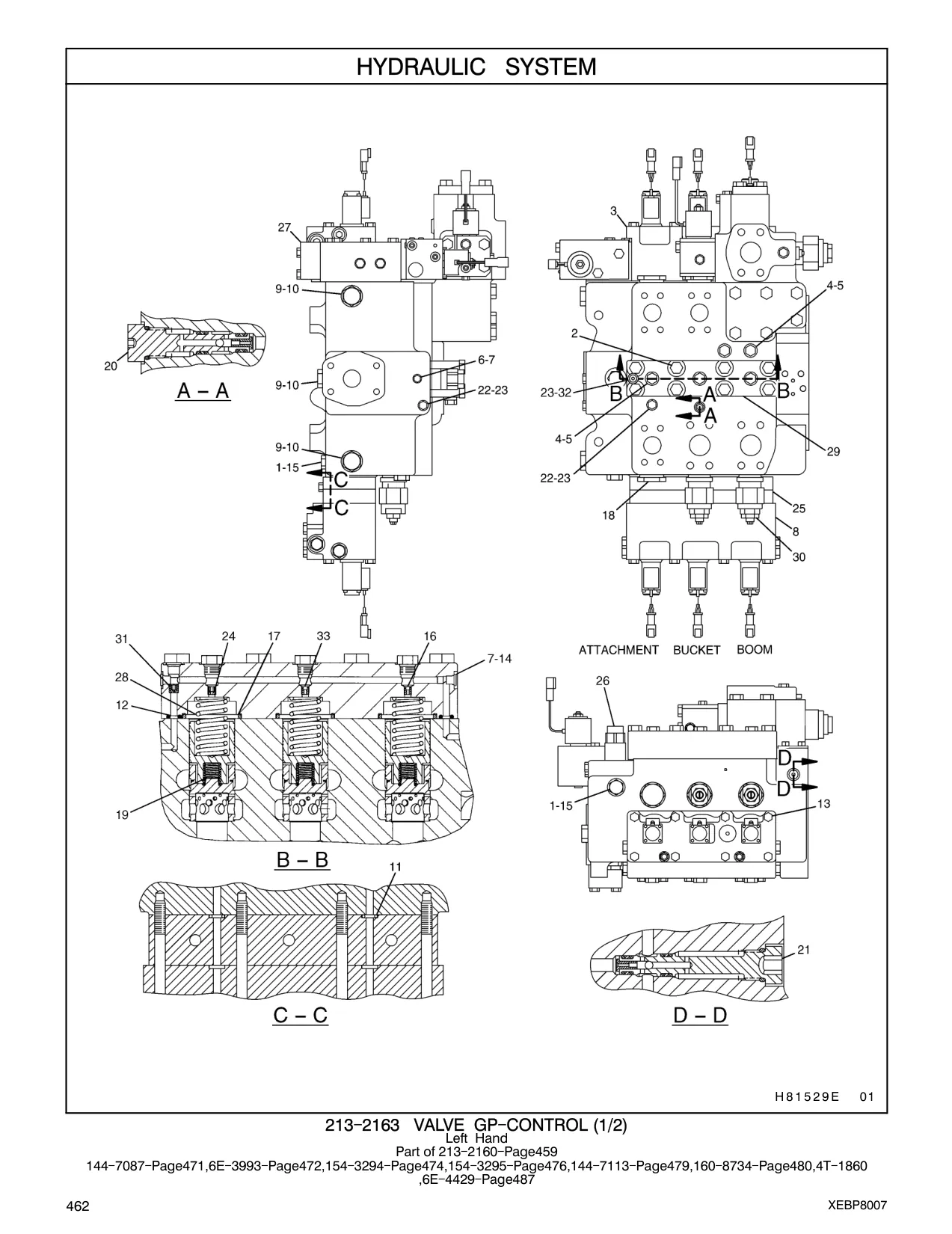

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 144-7087 |
144-7087
|
1 | 534 |
| 154-3294 |
154-3294
|
1 | 534 |
| 144-7113 |
144-7113
|
1 | 534 |
| 9S-4190 |
PLUG
|
2 | 535 |
| 7X-2555 |
BOLT (L=80mm)
|
8 | 535 |
| 154-3294 |
ACTUATOR GP
|
1 | 535 |
| 9S-4191 |
PLUG
|
5 | 535 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
5 | 535 |
| 9S-4180 |
PLUG
|
1 | 535 |
| 4J-7533 |
SEAL - O - RING (ID=6.07mm)
|
3 | 535 |
| 154-3295 |
ACTUATOR GP
|
1 | 535 |
| 9S-4183 |
PLUG
|
3 | 535 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
3 | 535 |
| 4J-9535 |
SEAL - O - RING (ID=10.77mm)
|
2 | 535 |
| 6V-5555 |
SEAL - O - RING (ID=7.52mm)
|
2 | 535 |
| 7X-2546 |
BOLT (L=180mm)
|
8 | 535 |
| 9S-8001 |
PLUG
|
2 | 535 |
| 2M-9780 |
SEAL - O - RING (ID=19.18mm)
|
2 | 535 |
| 5J-5004 |
PLUG
|
1 | 535 |
| 1P-3706 |
SEAL
|
3 | 535 |
| 6E-3993 |
PLUG AS
|
1 | 535 |
| 3F-8845 |
SPRING
|
3 | 535 |
| 4T-1860 |
VALVE GP
|
1 | 535 |
| 6E-4429 |
VALVE GP
|
1 | 535 |
| 9S-4182 |
PLUG
|
2 | 535 |
| 3J-7354 |
SEAL - O - RING (ID=8.92mm)
|
3 | 535 |
| 9J-8126 |
PLUG
|
1 | 535 |
| 145-8747 |
SPACER
|
1 | 535 |
| 144-7113 |
VALVE GP
|
1 | 535 |
| 144-7087 |
VALVE GP
|
1 | 535 |
| 6J-7240 |
SPRING
|
3 | 535 |
| 199-9707 |
COVER
|
1 | 535 |
| 160-8734 |
VALVE GP
|
2 | 535 |
| 4J-9780 |
PLUG
|
1 | 535 |
| 9S-8002 |
PLUG
|
1 | 535 |
| 4T-4207 |
PLUG
|
1 | 535 |
| 160-8734 |
160-8734
|
1 | 536 |
| 8T-5436 |
BOLT (L=130mm)
|
8 | 537 |
| 9S-4191 |
PLUG
|
1 | 537 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
1 | 537 |
| 9S-4180 |
PLUG
|
6 | 537 |
| 4J-7533 |
SEAL - O - RING (ID=6.07mm)
|
6 | 537 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
1 | 537 |
| 1H-5728 |
SEAL - O - RING (ID=63.09mm)
|
3 | 537 |
| 9S-8010 |
PLUG
|
1 | 537 |
| 2S-4078 |
SEAL - O - RING (ID=37.47mm)
|
1 | 537 |
| 6E-3993 |
PLUG AS
|
2 | 537 |
| 100-6211 |
PISTON
|
3 | 537 |
| 1J-9671 |
SEAL - O - RING (ID=10.52mm)
|
3 | 537 |
| 3K-8460 |
PLUG
|
3 | 537 |
