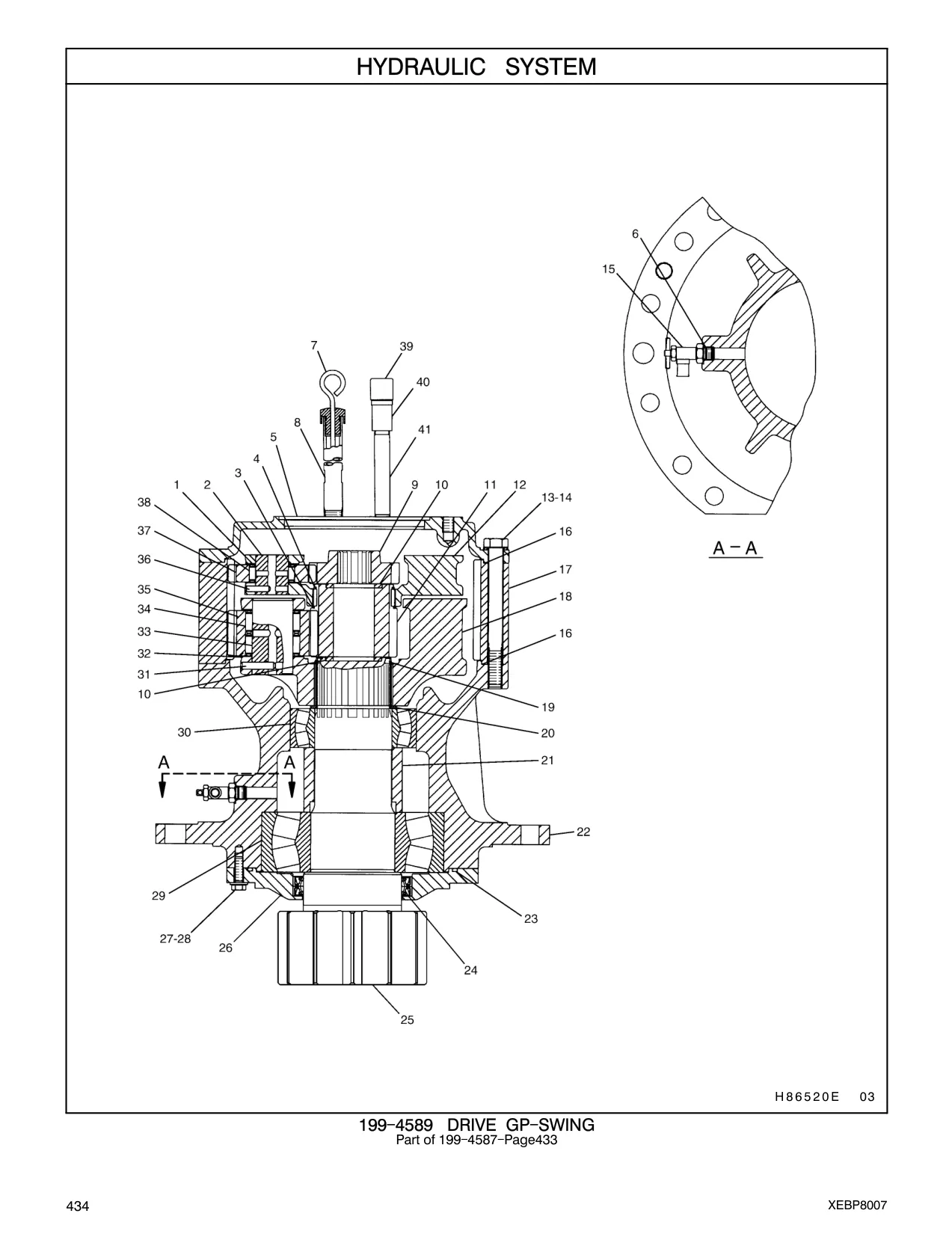

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 094-0611 |
WASHER
|
6 | 505 |
| 7Y-0225 |
SHAFT
|
3 | 505 |
| 094-0574 |
RING
|
1 | 505 |
| 093-1731 |
RING
|
1 | 505 |
| 136-2890 |
COVER
|
1 | 505 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 505 |
| 148-4645 |
GAUGE
|
1 | 505 |
| 148-4646 |
PIPE
|
1 | 505 |
| 136-2889 |
GEAR (Z=23)
|
1 | 505 |
| 7Y-0595 |
SPACER
|
2 | 505 |
| 136-2897 |
GEAR (Z=22)
|
1 | 505 |
| 136-2891 |
CARRIER
|
1 | 505 |
| 7X-2569 |
BOLT (L=200mm)
|
16 | 505 |
| 8T-4123 |
WASHER
|
16 | 505 |
| 6V-7238 |
VALVE
|
1 | 505 |
| 1U-8846 |
GASKET MAKER (12ml)
|
1 | 505 |
| 136-2896 |
GEAR (Z=70)
|
1 | 505 |
| 136-2892 |
CARRIER
|
1 | 505 |
| 093-1730 |
RING
|
1 | 505 |
| 096-2653 |
RING
|
1 | 505 |
| 136-2893 |
SPACER
|
1 | 505 |
| 136-2894 |
HOUSING
|
1 | 505 |
| 136-2942 |
SEAL - O - RING (ID=289.30mm)
|
1 | 505 |
| 135-9044 |
SEAL
|
2 | 505 |
| 199-4586 |
SHAFT
|
1 | 505 |
| 136-2941 |
CAGE
|
1 | 505 |
| 8T-4183 |
BOLT (L=40mm)
|
10 | 505 |
| 8T-4223 |
WASHER
|
10 | 505 |
| 136-2940 |
BEARING
|
1 | 505 |
| 136-2904 |
BEARING
|
1 | 505 |
| 099-5194 |
PIN
|
4 | 505 |
| 136-2898 |
WASHER
|
8 | 505 |
| 136-2899 |
SHAFT
|
4 | 505 |
| 136-2900 |
BEARING
|
8 | 505 |
| 136-2901 |
GEAR (Z=23)
|
4 | 505 |
| 095-0891 |
PIN
|
3 | 505 |
| 110-7053 |
GEAR (Z=23)
|
3 | 505 |
| 7Y-0252 |
BEARING
|
3 | 505 |
| 231-6864 |
BREATHER AS
|
1 | 505 |
| 114-8234 |
BREATHER
|
1 | 505 |
| 093-5150 |
COUPLING
|
1 | 505 |
| 231-6969 |
NIPPLE
|
1 | 505 |
