| Part No. | Name | Qty | Page |
|---|---|---|---|
| 8N-8471 |
CLAMP-TUBE
|
4 | 206 |
| 121-0243 |
CONTACTOR GP-SHUTOFF (CRANKCASE PRESSURE)
|
1 | 206 |

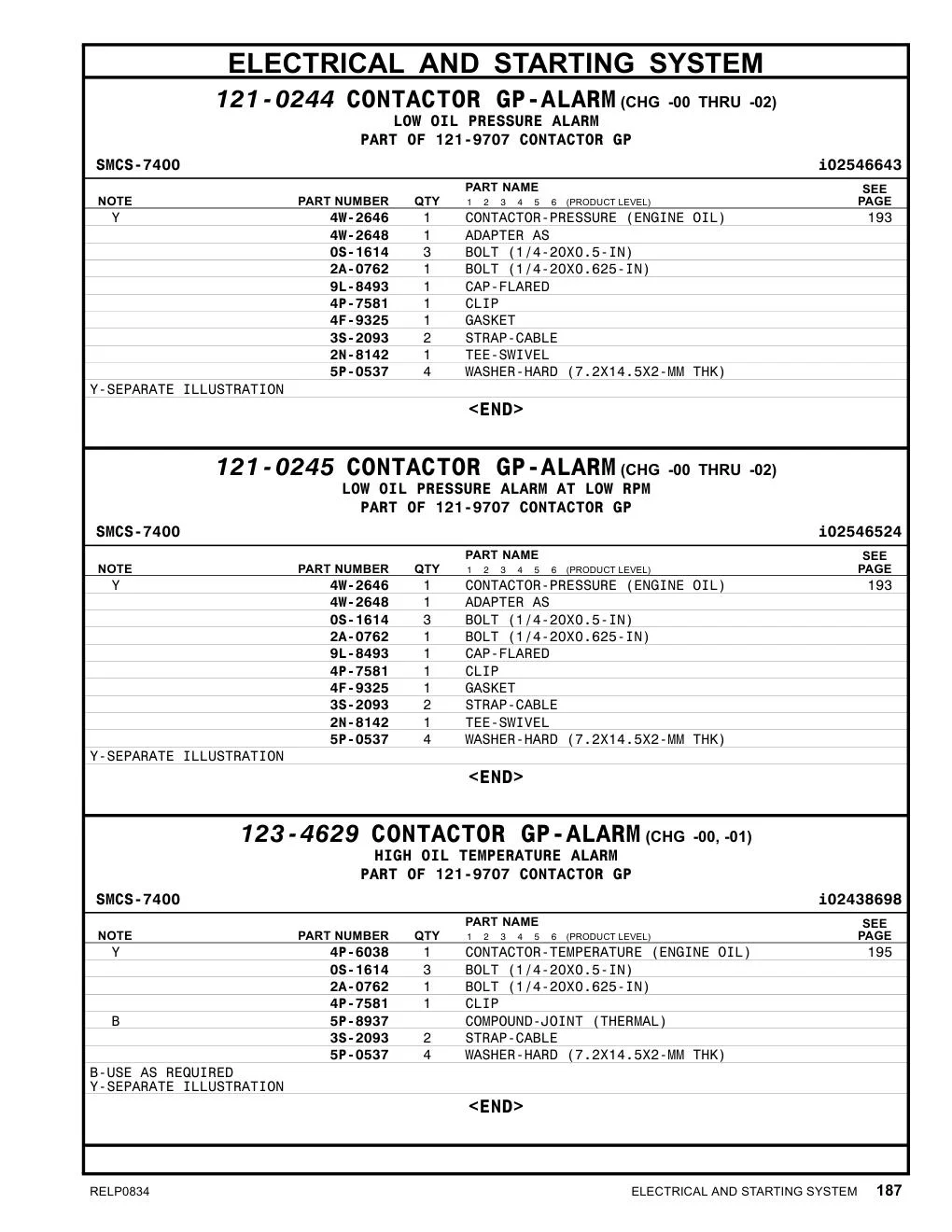

| 121-0244 |
CONTACTOR GP-ALARM (LOW OIL PRESSURE AT HIGH RPM)
|
1 | 206 |
| 121-0245 |
CONTACTOR GP-ALARM (LOW OIL PRESSURE AT LOW RPM)
|
1 | 206 |
| 121-0246 |
CONTACTOR GP-SHUTOFF (LOW OIL PRESSURE AT HIGH RMP)
|
1 | 206 |
| 121-0247 |
CONTACTOR GP-SHUTOFF (LOW OIL PRESSURE AT LOW RPM)
|
1 | 206 |
| 123-4629 |
CONTACTOR GP-ALARM (HIGH OIL TEMPERATURE)
|
1 | 206 |
| 123-4631 |
CONTACTOR GP-ALARM (JACKET WATER TEMPERATURE)
|
1 | 206 |
| 123-4633 |
CONTACTOR GP-ALARM (MANIFOLD AIR TEMPERATURE)
|
1 | 206 |
| 253-7751 |
TUBE AS
|
3 | 206 |
| 253-7752 |
TUBE AS
|
1 | 206 |
| 253-7753 |
TUBE AS
|
1 | 206 |
| 0S-1615 |
BOLT (1/4-20X0.75-IN)
|
4 | 206 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 206 |
| 230-3532 |
WIRE (16-GA) (1830-CM)
|
1 | 206 |
| 4W-2646 |
CONTACTOR-PRESSURE (ENGINE OIL)
|
1 | 207 |
| 4W-2648 |
ADAPTER AS
|
1 | 207 |
| 0S-1614 |
BOLT (1/4-20X0.5-IN)
|
3 | 207 |
| 2A-0762 |
BOLT (1/4-20X0.625-IN)
|
1 | 207 |
| 9L-8493 |
CAP-FLARED
|
1 | 207 |
| 4P-7581 |
CLIP
|
1 | 207 |
| 4F-9325 |
GASKET
|
1 | 207 |
| 3S-2093 |
STRAP-CABLE
|
2 | 207 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 207 |
| 4P-6038 |
CONTACTOR-TEMPERATURE (WATER)
|
1 | 208 |
| 0S-1614 |
BOLT (1/4-20X0.5-IN)
|
3 | 208 |
| 2A-0762 |
BOLT (1/4-20X0.625-IN)
|
1 | 208 |
| 4P-7581 |
CLIP
|
1 | 208 |
| 5P-8937 |
COMPOUND-JOINT (THERMAL) (JOINT)
|
1 | 208 |
| 3S-2093 |
STRAP-CABLE
|
2 | 208 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 208 |
| 117-1864 |
CONTACTOR-PRESSURE (CRANKCASE SHUTDOWN)
|
1 | 211 |
| 0S-1614 |
BOLT (1/4-20X0.5-IN)
|
2 | 211 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
2 | 211 |
| 4W-2646 |
CONTACTOR-PRESSURE (ENGINE OIL)
|
1 | 212 |
| 4W-2648 |
ADAPTER AS
|
1 | 212 |
| 0S-1614 |
BOLT (1/4-20X0.5-IN)
|
3 | 212 |
| 2A-0762 |
BOLT (1/4-20X0.625-IN)
|
1 | 212 |
| 9L-8493 |
CAP-FLARED
|
1 | 212 |
| 4P-7581 |
CLIP
|
1 | 212 |
| 4F-9325 |
GASKET
|
1 | 212 |
| 3S-2093 |
STRAP-CABLE
|
2 | 212 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 212 |
