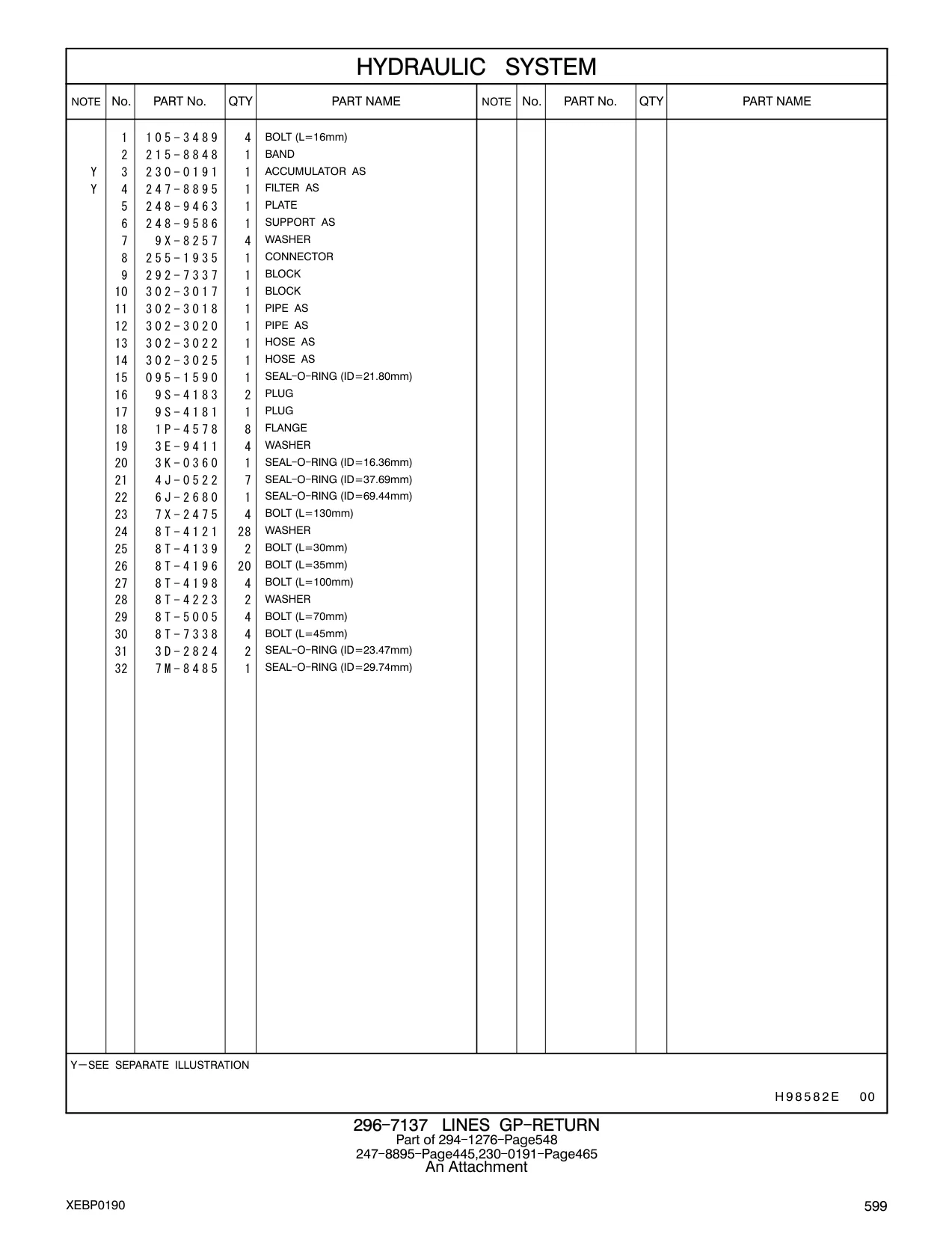

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 294-1276 |
294-1276
|
1 | 607 |
| 247-8895 |
247-8895
|
1 | 607 |
| 105-3489 |
BOLT (L=16mm)
|
4 | 608 |
| 215-8848 |
BAND
|
1 | 608 |
| 230-0191 |
ACCUMULATOR AS
|
1 | 608 |
| 247-8895 |
FILTER AS
|
1 | 608 |
| 248-9463 |
PLATE
|
1 | 608 |
| 248-9586 |
SUPPORT AS
|
1 | 608 |
| 9X-8257 |
WASHER
|
4 | 608 |
| 255-1935 |
CONNECTOR
|
1 | 608 |
| 292-7337 |
BLOCK
|
1 | 608 |
| 302-3017 |
BLOCK
|
1 | 608 |
| 302-3018 |
PIPE AS
|
1 | 608 |
| 302-3020 |
PIPE AS
|
1 | 608 |
| 302-3025 |
HOSE AS
|
1 | 608 |
| 095-1590 |
SEAL - O - RING (ID=21.80mm)
|
1 | 608 |
| 9S-4183 |
PLUG
|
2 | 608 |
| 9S-4181 |
PLUG
|
1 | 608 |
| 1P-4578 |
FLANGE
|
8 | 608 |
| 3E-9411 |
WASHER
|
4 | 608 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 608 |
| 4J-0522 |
SEAL - O - RING (ID=37.69mm)
|
7 | 608 |
| 6J-2680 |
SEAL - O - RING (ID=69.44mm)
|
1 | 608 |
| 7X-2475 |
BOLT (L=130mm)
|
4 | 608 |
| 8T-4121 |
WASHER
|
28 | 608 |
| 8T-4139 |
BOLT (L=30mm)
|
2 | 608 |
| 8T-4196 |
BOLT (L=35mm)
|
20 | 608 |
| 8T-4198 |
BOLT (L=100mm)
|
4 | 608 |
| 8T-4223 |
WASHER
|
2 | 608 |
| 8T-5005 |
BOLT (L=70mm)
|
4 | 608 |
| 8T-7338 |
BOLT (L=45mm)
|
4 | 608 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
2 | 608 |
| 7M-8485 |
SEAL - O - RING (ID=29.74mm)
|
1 | 608 |
