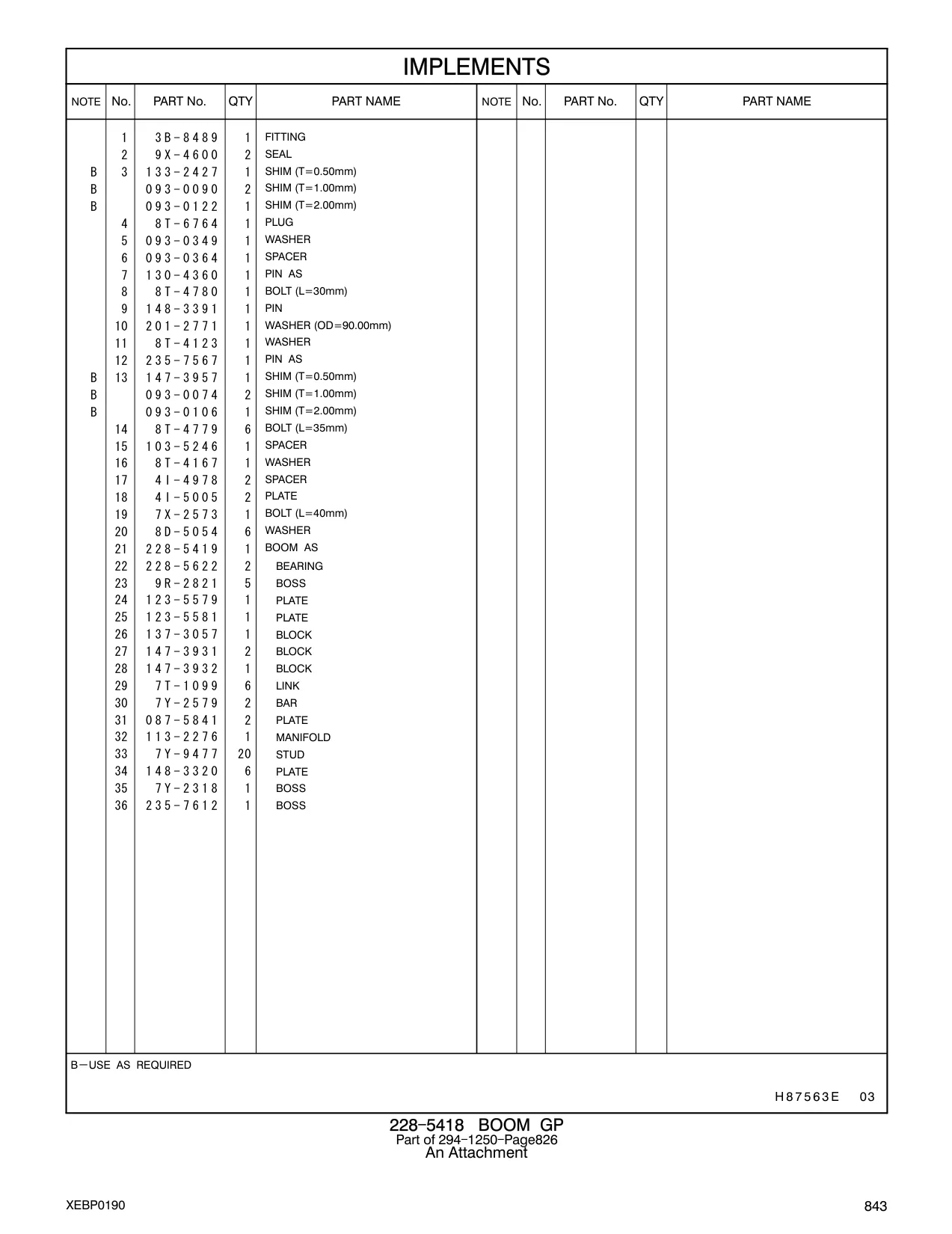

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 294-1250 |
294-1250
|
1 | 859 |
| 3B-8489 |
FITTING
|
1 | 860 |
| 9X-4600 |
SEAL
|
2 | 860 |
| 133-2427 |
SHIM (T=0.50mm)
|
1 | 860 |
| 093-0090 |
SHIM (T=1.00mm)
|
2 | 860 |
| 093-0122 |
SHIM (T=2.00mm)
|
1 | 860 |
| 8T-6764 |
PLUG
|
1 | 860 |
| 093-0349 |
WASHER
|
1 | 860 |
| 093-0364 |
SPACER
|
1 | 860 |
| 130-4360 |
PIN AS
|
1 | 860 |
| 8T-4780 |
BOLT (L=30mm)
|
1 | 860 |
| 148-3391 |
PIN
|
1 | 860 |
| 201-2771 |
WASHER (OD=90.00mm)
|
1 | 860 |
| 8T-4123 |
WASHER
|
1 | 860 |
| 235-7567 |
PIN AS
|
1 | 860 |
| 147-3957 |
SHIM (T=0.50mm)
|
1 | 860 |
| 093-0074 |
SHIM (T=1.00mm)
|
2 | 860 |
| 093-0106 |
SHIM (T=2.00mm)
|
1 | 860 |
| 8T-4779 |
BOLT (L=35mm)
|
6 | 860 |
| 103-5246 |
SPACER
|
1 | 860 |
| 8T-4167 |
WASHER
|
1 | 860 |
| 4I-4978 |
SPACER
|
2 | 860 |
| 4I-5005 |
PLATE
|
2 | 860 |
| 7X-2573 |
BOLT (L=40mm)
|
1 | 860 |
| 8D-5054 |
WASHER
|
6 | 860 |
| 228-5622 |
BEARING
|
2 | 860 |
| 9R-2821 |
BOSS
|
5 | 860 |
| 123-5579 |
PLATE
|
1 | 860 |
| 123-5581 |
PLATE
|
1 | 860 |
| 137-3057 |
BLOCK
|
1 | 860 |
| 147-3931 |
BLOCK
|
2 | 860 |
| 147-3932 |
BLOCK
|
1 | 860 |
| 7T-1099 |
LINK
|
6 | 860 |
| 7Y-2579 |
BAR
|
2 | 860 |
| 087-5841 |
PLATE
|
2 | 860 |
| 113-2276 |
MANIFOLD
|
1 | 860 |
| 7Y-9477 |
STUD
|
20 | 860 |
| 148-3320 |
PLATE
|
6 | 860 |
| 7Y-2318 |
BOSS
|
1 | 860 |
| 235-7612 |
BOSS
|
1 | 860 |
