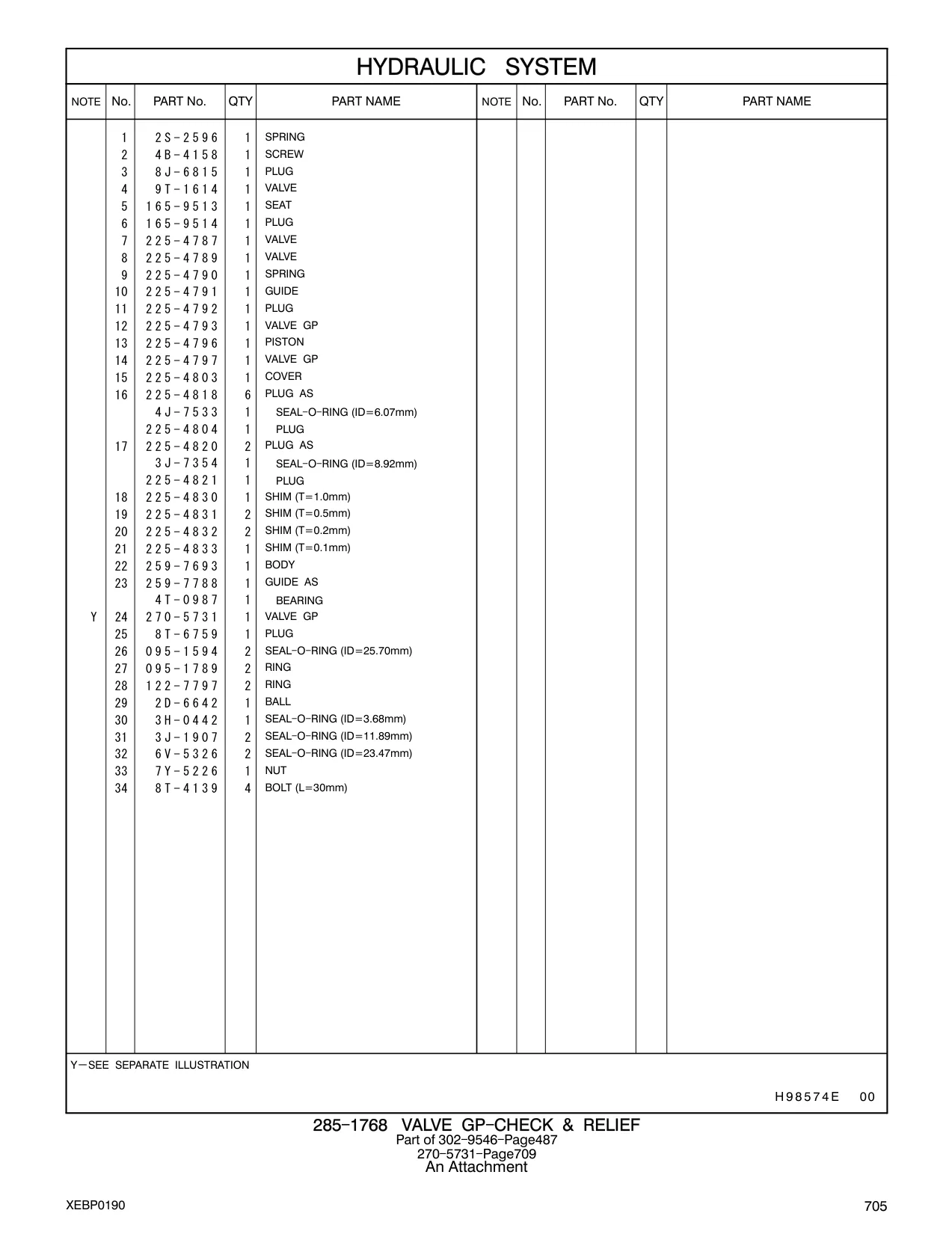

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 302-9546 |
302-9546
|
1 | 713 |
| 270-5731 |
270-5731
|
1 | 713 |
| 2S-2596 |
SPRING
|
1 | 714 |
| 4B-4158 |
SCREW
|
1 | 714 |
| 8J-6815 |
PLUG
|
1 | 714 |
| 9T-1614 |
VALVE
|
1 | 714 |
| 165-9513 |
SEAT
|
1 | 714 |
| 165-9514 |
PLUG
|
1 | 714 |
| 225-4787 |
VALVE
|
1 | 714 |
| 225-4789 |
VALVE
|
1 | 714 |
| 225-4790 |
SPRING
|
1 | 714 |
| 225-4791 |
GUIDE
|
1 | 714 |
| 225-4793 |
VALVE GP
|
1 | 714 |
| 225-4796 |
PISTON
|
1 | 714 |
| 225-4797 |
VALVE GP
|
1 | 714 |
| 225-4803 |
COVER
|
1 | 714 |
| 225-4818 |
PLUG AS
|
6 | 714 |
| 4J-7533 |
SEAL - O - RING (ID=6.07mm)
|
1 | 714 |
| 225-4804 |
PLUG
|
1 | 714 |
| 225-4820 |
PLUG AS
|
2 | 714 |
| 3J-7354 |
SEAL - O - RING (ID=8.92mm)
|
1 | 714 |
| 225-4821 |
PLUG
|
1 | 714 |
| 225-4830 |
SHIM (T=1.0mm)
|
1 | 714 |
| 225-4831 |
SHIM (T=0.5mm)
|
2 | 714 |
| 225-4832 |
SHIM (T=0.2mm)
|
2 | 714 |
| 225-4833 |
SHIM (T=0.1mm)
|
1 | 714 |
| 259-7693 |
BODY
|
1 | 714 |
| 259-7788 |
GUIDE AS
|
1 | 714 |
| 4T-0987 |
BEARING
|
1 | 714 |
| 270-5731 |
VALVE GP
|
1 | 714 |
| 8T-6759 |
PLUG
|
1 | 714 |
| 095-1594 |
SEAL - O - RING (ID=25.70mm)
|
2 | 714 |
| 095-1789 |
RING
|
2 | 714 |
| 122-7797 |
RING
|
2 | 714 |
| 2D-6642 |
BALL
|
1 | 714 |
| 3H-0442 |
SEAL - O - RING (ID=3.68mm)
|
1 | 714 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
2 | 714 |
| 6V-5326 |
SEAL - O - RING (ID=23.47mm)
|
2 | 714 |
| 7Y-5226 |
NUT
|
1 | 714 |
| 8T-4139 |
BOLT (L=30mm)
|
4 | 714 |
