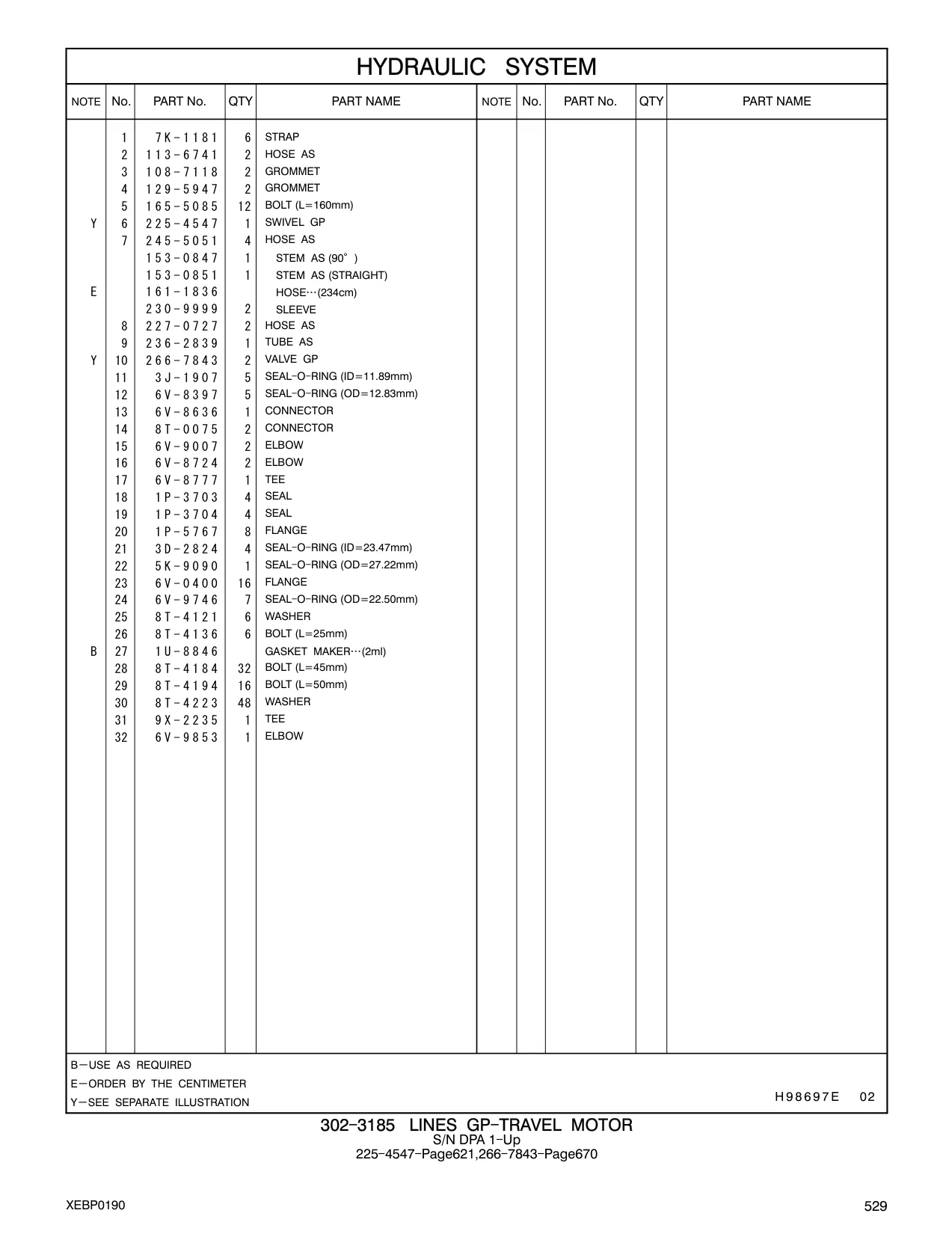

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 225-4547 |
225-4547
|
1 | 537 |
| 7K-1181 |
STRAP
|
6 | 538 |
| 108-7118 |
GROMMET
|
2 | 538 |
| 129-5947 |
GROMMET
|
2 | 538 |
| 165-5085 |
BOLT (L=160mm)
|
12 | 538 |
| 225-4547 |
SWIVEL GP
|
1 | 538 |
| 245-5051 |
HOSE AS
|
4 | 538 |
| 153-0847 |
STEM AS (90 )
|
1 | 538 |
| 153-0851 |
STEM AS (STRAIGHT)
|
1 | 538 |
| 161-1836 |
HOSE (234cm)
|
1 | 538 |
| 230-9999 |
SLEEVE
|
2 | 538 |
| 227-0727 |
HOSE AS
|
2 | 538 |
| 236-2839 |
TUBE AS
|
1 | 538 |
| 266-7843 |
VALVE GP
|
2 | 538 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
5 | 538 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
5 | 538 |
| 6V-8636 |
CONNECTOR
|
1 | 538 |
| 8T-0075 |
CONNECTOR
|
2 | 538 |
| 6V-9007 |
ELBOW
|
2 | 538 |
| 6V-8724 |
ELBOW
|
2 | 538 |
| 6V-8777 |
TEE
|
1 | 538 |
| 1P-3703 |
SEAL
|
4 | 538 |
| 1P-3704 |
SEAL
|
4 | 538 |
| 1P-5767 |
FLANGE
|
8 | 538 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
4 | 538 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
1 | 538 |
| 6V-0400 |
FLANGE
|
16 | 538 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
7 | 538 |
| 8T-4121 |
WASHER
|
6 | 538 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 538 |
| 1U-8846 |
GASKET MAKER (2ml)
|
1 | 538 |
| 8T-4184 |
BOLT (L=45mm)
|
32 | 538 |
| 8T-4194 |
BOLT (L=50mm)
|
16 | 538 |
| 8T-4223 |
WASHER
|
48 | 538 |
| 9X-2235 |
TEE
|
1 | 538 |
| 6V-9853 |
ELBOW
|
1 | 538 |
