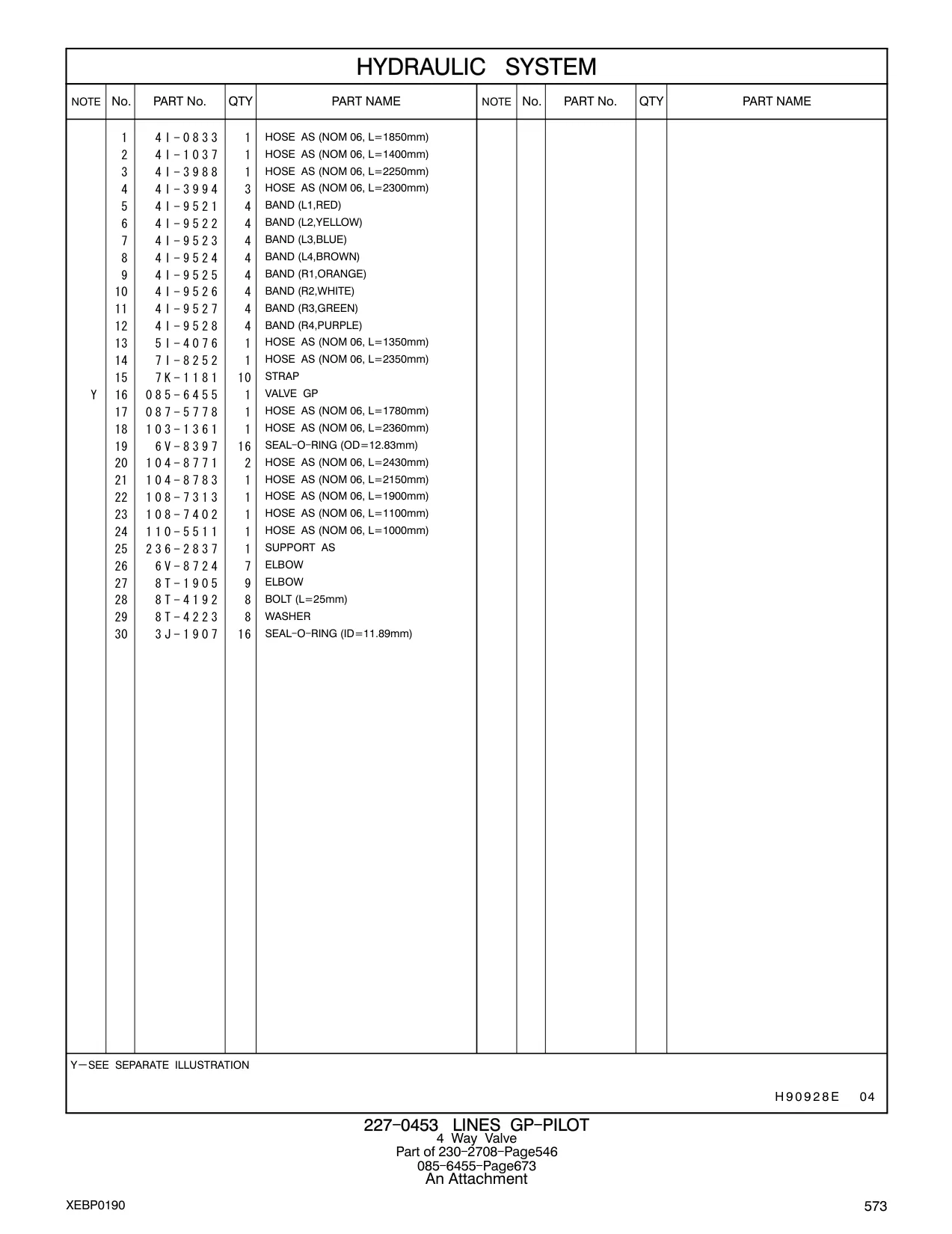

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 230-2708 |
230-2708
|
1 | 581 |
| 085-6455 |
085-6455
|
1 | 581 |
| 4I-0833 |
HOSE AS (NOM 06, L=1850mm)
|
1 | 582 |
| 4I-1037 |
HOSE AS (NOM 06, L=1400mm)
|
1 | 582 |
| 4I-3988 |
HOSE AS (NOM 06, L=2250mm)
|
1 | 582 |
| 4I-3994 |
HOSE AS (NOM 06, L=2300mm)
|
3 | 582 |
| 4I-9521 |
BAND (L1,RED)
|
4 | 582 |
| 4I-9522 |
BAND (L2,YELLOW)
|
4 | 582 |
| 4I-9523 |
BAND (L3,BLUE)
|
4 | 582 |
| 4I-9524 |
BAND (L4,BROWN)
|
4 | 582 |
| 4I-9525 |
BAND (R1,ORANGE)
|
4 | 582 |
| 4I-9526 |
BAND (R2,WHITE)
|
4 | 582 |
| 4I-9527 |
BAND (R3,GREEN)
|
4 | 582 |
| 4I-9528 |
BAND (R4,PURPLE)
|
4 | 582 |
| 5I-4076 |
HOSE AS (NOM 06, L=1350mm)
|
1 | 582 |
| 7I-8252 |
HOSE AS (NOM 06, L=2350mm)
|
1 | 582 |
| 7K-1181 |
STRAP
|
10 | 582 |
| 085-6455 |
VALVE GP
|
1 | 582 |
| 087-5778 |
HOSE AS (NOM 06, L=1780mm)
|
1 | 582 |
| 103-1361 |
HOSE AS (NOM 06, L=2360mm)
|
1 | 582 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
16 | 582 |
| 104-8771 |
HOSE AS (NOM 06, L=2430mm)
|
2 | 582 |
| 104-8783 |
HOSE AS (NOM 06, L=2150mm)
|
1 | 582 |
| 108-7402 |
HOSE AS (NOM 06, L=1100mm)
|
1 | 582 |
| 110-5511 |
HOSE AS (NOM 06, L=1000mm)
|
1 | 582 |
| 236-2837 |
SUPPORT AS
|
1 | 582 |
| 6V-8724 |
ELBOW
|
7 | 582 |
| 8T-1905 |
ELBOW
|
9 | 582 |
| 8T-4192 |
BOLT (L=25mm)
|
8 | 582 |
| 8T-4223 |
WASHER
|
8 | 582 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
16 | 582 |
