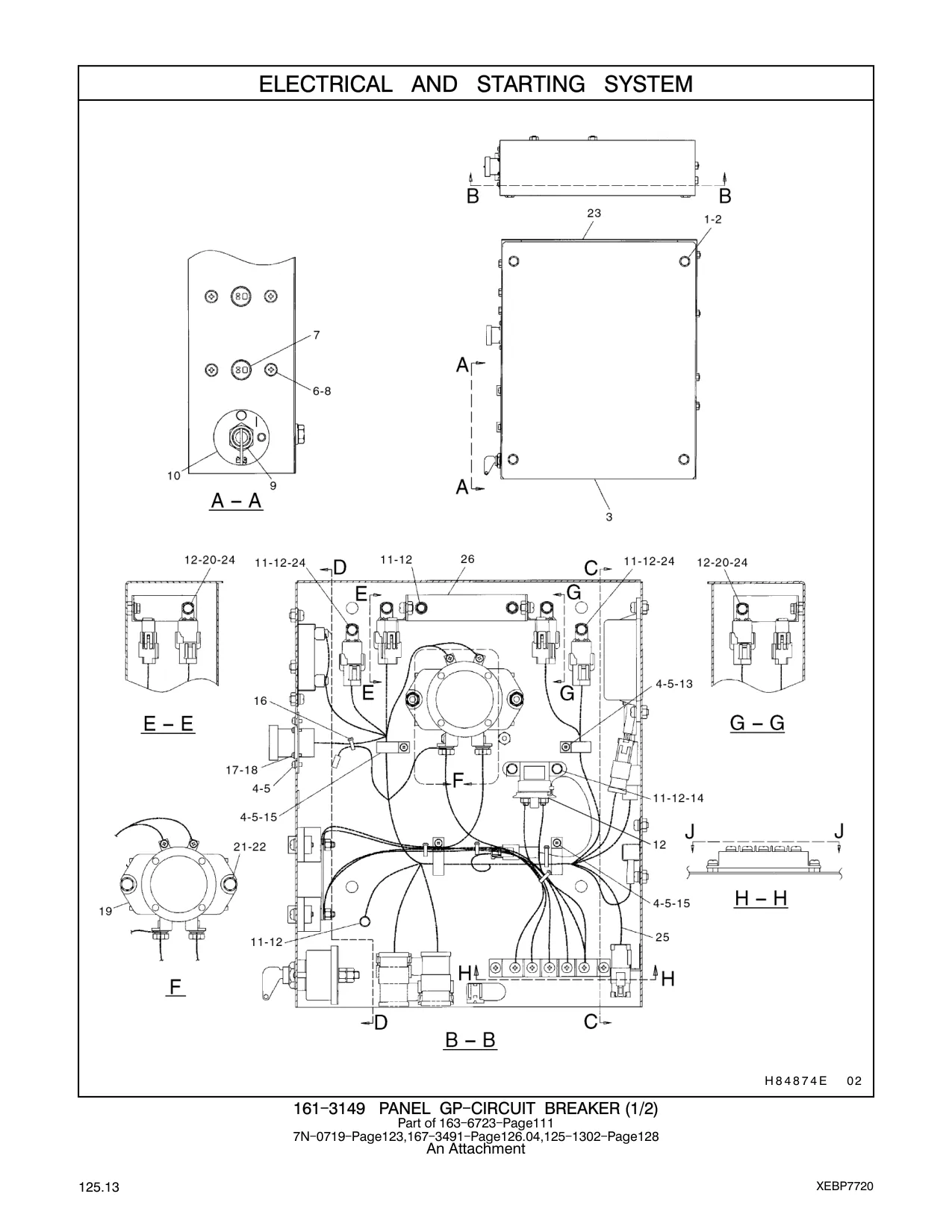

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 167-3491 |
167-3491
|
1 | 202 |
| 8T-4191 |
BOLT (L=16mm)
|
4 | 203 |
| 8T-4121 |
WASHER
|
4 | 203 |
| 111-4874 |
COVER
|
1 | 203 |
| 8C-7581 |
SCREW
|
8 | 203 |
| 096-6166 |
WASHER
|
8 | 203 |
| 8T-0328 |
WASHER
|
4 | 203 |
| 9S-4693 |
BREAKER AS
|
2 | 203 |
| 1H-3244 |
LOCKWASHER
|
2 | 203 |
| 6V-8187 |
NUT
|
2 | 203 |
| 8T-4205 |
WASHER
|
2 | 203 |
| 6V-5645 |
SCREW
|
4 | 203 |
| 7N-0719 |
SWITCH AS (DISCONNECT)
|
1 | 203 |
| 3E-8320 |
PLATE (INSTRUCTION)
|
1 | 203 |
| 7X-2619 |
BOLT (L=10mm)
|
9 | 203 |
| 9X-8256 |
WASHER
|
13 | 203 |
| 105-9983 |
CLIP
|
1 | 203 |
| 125-1302 |
SWITCH AS (START RELAY)
|
1 | 203 |
| 105-9985 |
CLIP
|
3 | 203 |
| 3S-2093 |
STRAP
|
5 | 203 |
| 3E-8048 |
SCREW
|
4 | 203 |
| 096-5962 |
WASHER
|
4 | 203 |
| 159-9108 |
SWITCH AS (MAIN RELAY)
|
1 | 203 |
| 8T-6411 |
SCREW
|
2 | 203 |
| 8T-4908 |
BOLT (L=25mm)
|
2 | 203 |
| 8T-4224 |
WASHER
|
2 | 203 |
| 167-3474 |
BRACKET AS
|
1 | 203 |
| 149-5050 |
RELAY
|
6 | 203 |
| 167-3491 |
HARNESS AS
|
1 | 203 |
| 167-3489 |
BRACKET AS
|
1 | 203 |
| 111-4870 |
111-4870
|
1 | 204 |
| 8T-0328 |
WASHER
|
4 | 205 |
| 7X-2619 |
BOLT (L=10mm)
|
1 | 205 |
| 9X-8256 |
WASHER
|
14 | 205 |
| 095-0742 |
SCREW
|
2 | 205 |
| 111-4870 |
TIMER AS
|
1 | 205 |
| 8T-6411 |
SCREW
|
11 | 205 |
| 102-8017 |
RESISTOR AS
|
1 | 205 |
| 136-4055 |
STRIP
|
1 | 205 |
| 149-5060 |
WIRE AS
|
1 | 205 |
| 2L-8050 |
TERMINAL
|
2 | 205 |
| 150-6966 |
CABLE AS
|
1 | 205 |
| 9G-4343 |
TERMINAL
|
2 | 205 |
| 170-6995 |
CABLE AS
|
1 | 205 |
| 9G-4343 |
TERMINAL
|
1 | 205 |
| 9G-4336 |
TERMINAL
|
1 | 205 |
| 150-6967 |
CABLE AS
|
1 | 205 |
| 9G-4343 |
TERMINAL
|
2 | 205 |
| 121-1023 |
BLOCK
|
1 | 205 |
| 163-6616 |
RESISTOR AS
|
1 | 205 |
