CAT 330D 303-9626 Parts Manual Diagram - SHEET

Home › Parts Manual › CAT 330D › 303-9626

Part No.

303-9626

Name (EN)

SHEET

Name (CN)

Qty

1 per assembly

Group

237-8753

System

FRAME AND BODY

Source

CAT Official Parts Manual

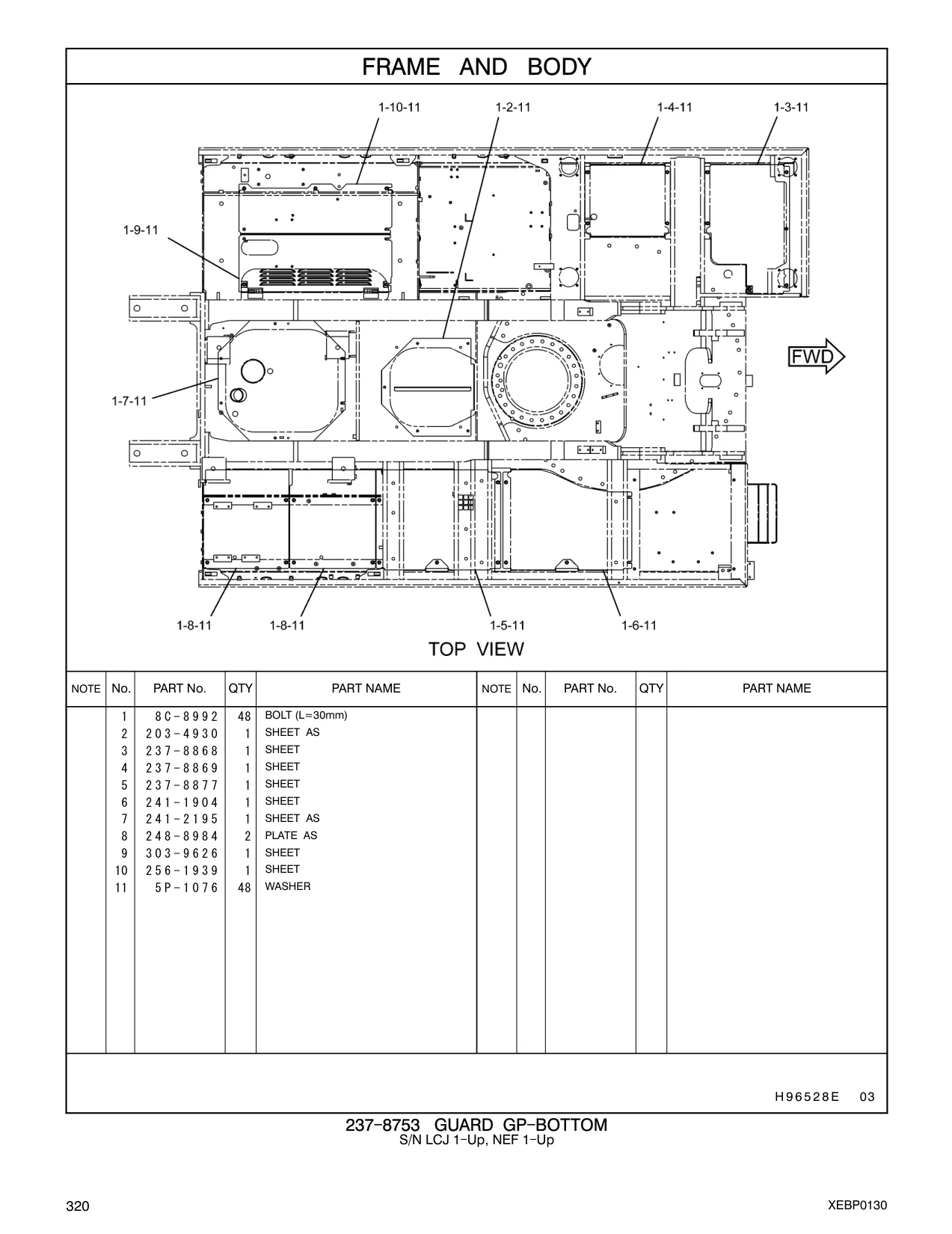

※ Click image to zoom · Page 325 of official CAT 330D parts manual

Part No.	Name	Qty	Page
8C-8992	BOLT (L=30mm)	48	332
203-4930	SHEET AS	1	332
237-8868	SHEET	1	332
237-8869	SHEET	1	332
237-8877	SHEET	1	332
241-1904	SHEET	1	332
241-2195	SHEET AS	1	332
248-8984	PLATE AS	2	332
256-1938	SHEET	1	332
256-1939	SHEET	1	332
5P-1076	WASHER	48	332
8C-8992	BOLT (L=30mm)	48	325
203-4930	SHEET AS	1	325
237-8868	SHEET	1	325
237-8869	SHEET	1	325
237-8877	SHEET	1	325
241-1904	SHEET	1	325
241-2195	SHEET AS	1	325
248-8984	PLATE AS	2	325
256-1939	SHEET	1	325
5P-1076	WASHER	48	325
