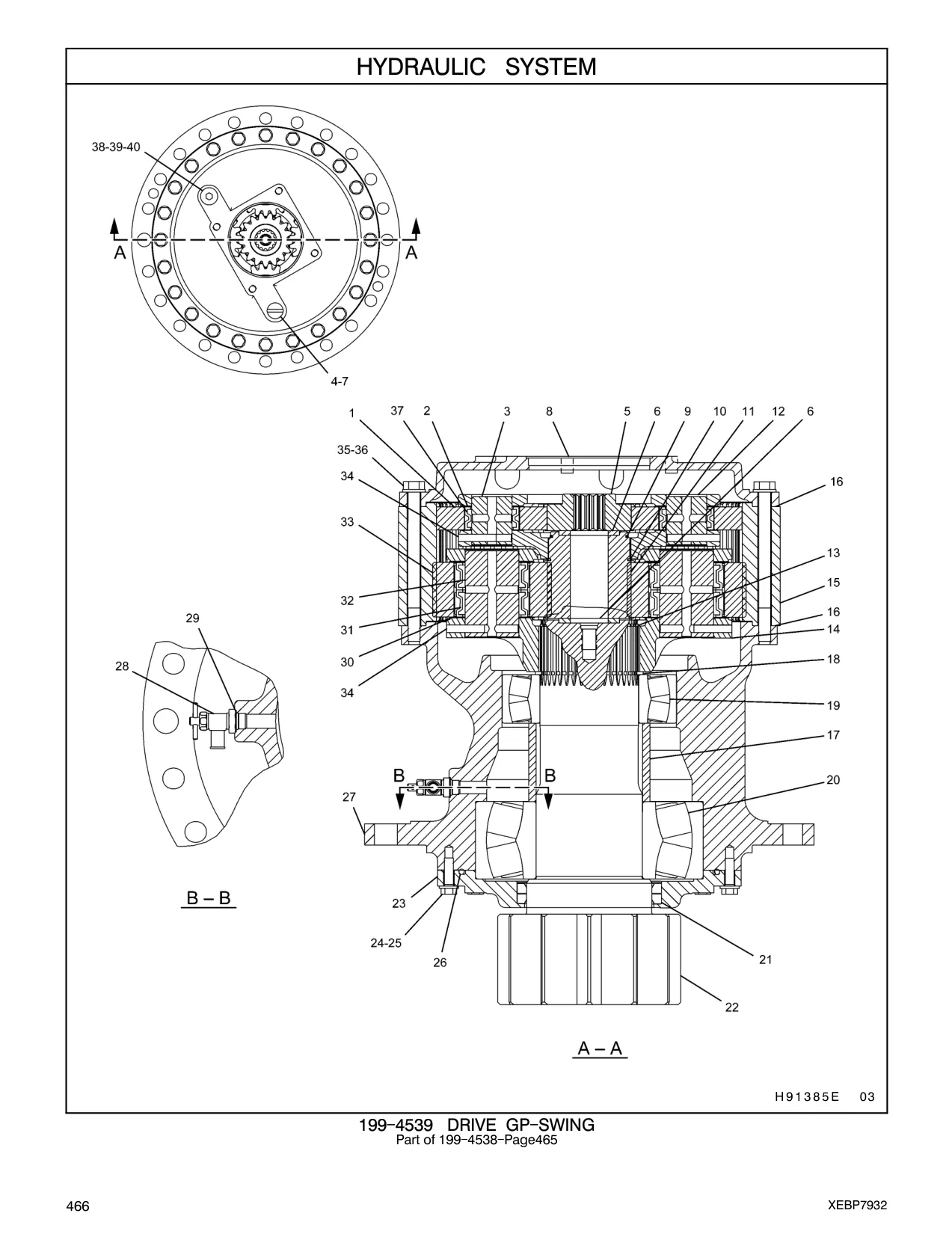

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 148-4602 |
GEAR (Z=24)
|
4 | 655 |
| 094-1528 |
WASHER
|
8 | 655 |
| 148-4608 |
SHAFT
|
4 | 655 |
| 114-1399 |
PIPE
|
1 | 655 |
| 148-4600 |
GEAR (Z=17)
|
1 | 655 |
| 7I-7684 |
SPACER
|
2 | 655 |
| 114-1398 |
GAUGE
|
1 | 655 |
| 199-4540 |
COVER
|
1 | 655 |
| 096-1441 |
RING
|
1 | 655 |
| 093-1730 |
RING
|
1 | 655 |
| 148-4601 |
GEAR (Z=17)
|
1 | 655 |
| 191-2511 |
CARRIER
|
1 | 655 |
| 114-1322 |
RING
|
1 | 655 |
| 148-4607 |
CARRIER
|
1 | 655 |
| 148-4604 |
GEAR (Z=67)
|
1 | 655 |
| 1U-8846 |
GASKET MAKER (6ml)
|
1 | 655 |
| 171-9413 |
SPACER
|
1 | 655 |
| 110-7149 |
RING
|
1 | 655 |
| 9U-8693 |
BEARING
|
1 | 655 |
| 7I-7619 |
BEARING
|
1 | 655 |
| 128-9170 |
SEAL
|
2 | 655 |
| 148-4605 |
SHAFT
|
1 | 655 |
| 7I-7611 |
CAGE
|
1 | 655 |
| 8T-4183 |
BOLT (L=40mm)
|
10 | 655 |
| 8T-4223 |
WASHER
|
10 | 655 |
| 5M-4454 |
SEAL - O - RING (ID=329.57mm)
|
1 | 655 |
| 191-2524 |
HOUSING
|
1 | 655 |
| 6V-7238 |
VALVE
|
1 | 655 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 655 |
| 148-4611 |
WASHER
|
8 | 655 |
| 191-2514 |
BEARING AS
|
8 | 655 |
| 148-4609 |
SHAFT
|
4 | 655 |
| 148-4603 |
GEAR (Z=24)
|
4 | 655 |
| 099-5194 |
PIN
|
8 | 655 |
| 8T-6383 |
BOLT (L=200mm)
|
24 | 655 |
| 9X-8257 |
WASHER
|
24 | 655 |
| 191-2513 |
BEARING AS
|
4 | 655 |
| 227-6221 |
BREATHER AS
|
1 | 655 |
| 4H-6112 |
BREATHER AS
|
1 | 655 |
| 227-6215 |
BOSS
|
1 | 655 |
| 267-6785 |
NIPPLE
|
1 | 655 |
