| Part No. | Name | Qty | Page |
|---|---|---|---|
| 5S-7349 |
BOLT (1/4-20X0.5-IN)
|
4 | 1246 |
| 6N-3827 |
DRIVE AS-MOTOR
|
1 | 1246 |
| 2H-3429 |
RING-RETAINING
|
1 | 1246 |
| 4B-2049 |
NUT (10-32-THD)
|
3 | 1246 |
| 8F-1434 |
LOCKWASHER
|
2 | 1246 |
| 7T-3271 |
CONNECTOR
|
1 | 1246 |
| 4B-4274 |
WASHER (5.5X13X1.2-MM THK)
|
3 | 1246 |
| 036-9823 |
BOLT (1/4-28X1-IN)
|
5 | 1246 |
| 8T-8568 |
COIL AS-FIELD
|
1 | 1246 |
| 3F-0379 |
SCREW-POLE SHOE (3/8-24-THD)
|
8 | 1246 |
| 7T-3275 |
ARMATURE AS (12-VOLT)
|
1 | 1246 |
| 8H-1141 |
SHOE-POLE
|
4 | 1246 |
| 7T-3454 |
INSULATOR
|
1 | 1246 |
| 7T-3279 |
HOUSING AS
|
1 | 1246 |
| 8T-8570 |
HOLDER AS-BRUSH (STARTING MOTOR)
|
1 | 1246 |
| 3T-3422 |
WIRE AS
|
1 | 1246 |
| 8T-8566 |
TERMINAL AS
|
1 | 1246 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
1 | 1246 |
| 6V-8188 |
NUT (1/2-13-THD)
|
4 | 1246 |
| 7X-0562 |
WASHER-HARD (13.5X19X0.8-MM THK)
|
4 | 1246 |
| 036-9821 |
WASHER
|
1 | 1246 |
| 7T-3451 |
KIT-INSULATOR (STARTING MOTOR)
|
1 | 1246 |
| 8T-8569 |
INSULATOR-TERMINAL
|
1 | 1246 |
| 3E-5449 |
SOLENOID AS-STARTING MOTOR (12-VOLT)
|
1 | 1246 |
| 9X-4824 |
COVER-STARTING MOTOR
|
1 | 1246 |
| 7T-3269 |
BOOT
|
1 | 1246 |
| 7T-3270 |
PLUNGER AS
|
1 | 1246 |
| 9M-7609 |
SPRING (SHIFT LEVER)
|
1 | 1246 |
| 4M-1828 |
RETAINER-SPRING
|
1 | 1246 |
| 4M-1827 |
RETAINER-SPRING
|
1 | 1246 |
| 4M-1831 |
PLUG-LEVER HOUSING
|
1 | 1246 |
| 3E-7775 |
HOUSING AS
|
1 | 1246 |
| 7T-3974 |
HOUSING AS-DRIVE
|
1 | 1246 |
| 7X-3373 |
BOLT (5/16-18X0.88-IN)
|
6 | 1246 |
| 3T-3434 |
PLUG
|
6 | 1246 |
| 8T-0328 |
WASHER-HARD (5.5X10X1-MM THK) SPRING BRUSH SCREW SCREW AS SEAL-O-RING INSULATOR BUSHING LEVER AS LEVER AS NUT
|
3 | 1246 |
| 8T-9885 |
KIT-BRUSH (STARTING MOTOR)
|
1 | 1247 |
| 7T-3267 |
KIT-BUSHING (STARTING MOTOR)
|
1 | 1247 |
| 7T-3268 |
KIT-LEVER (STARTING MOTOR)
|
1 | 1247 |
| 8T-9884 |
KIT-INSULATOR (STARTING MOTOR)
|
1 | 1247 |
| 7T-0798 |

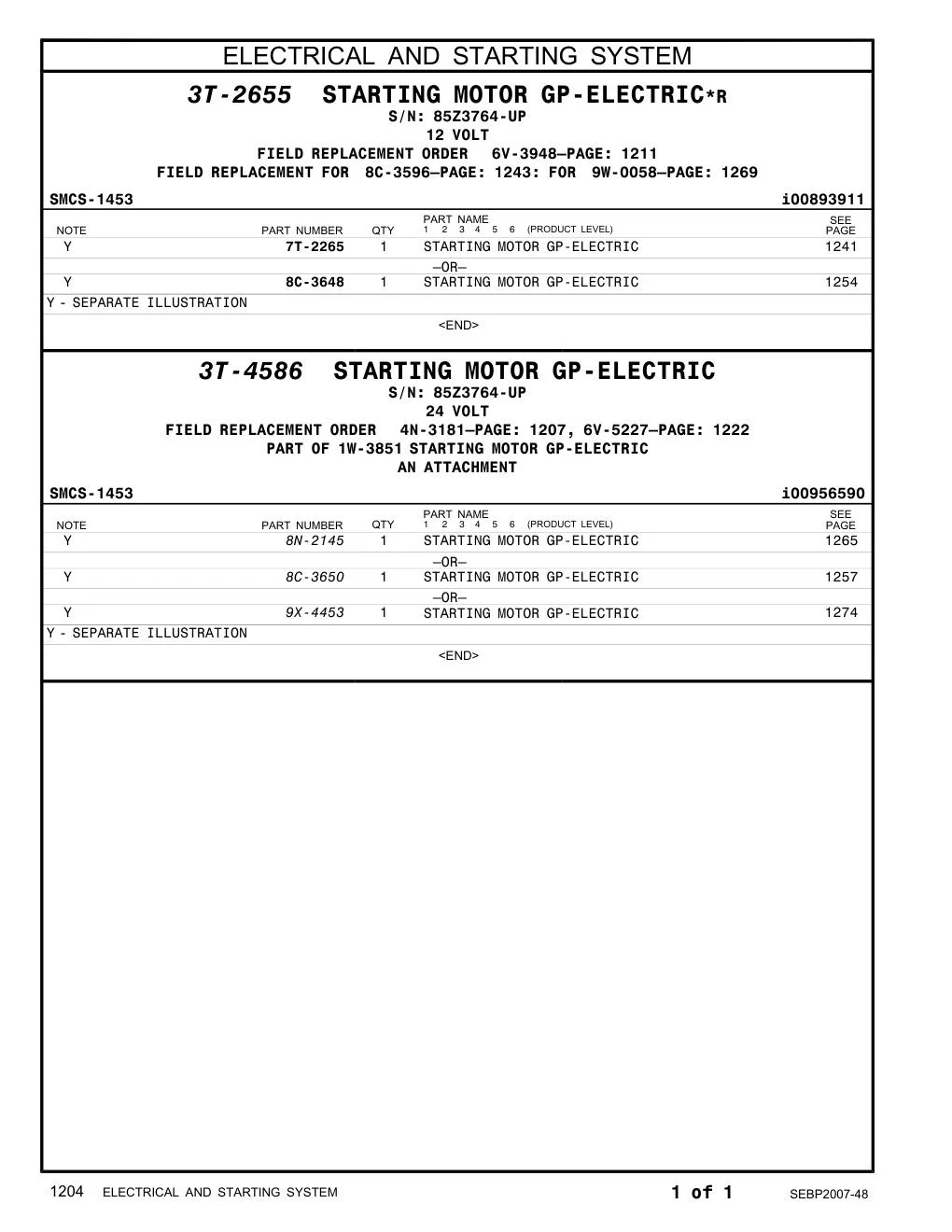

STARTING MOTOR GP-ELECTRIC –OR–
|
1 | 1249 |
| 8C-3647 |
STARTING MOTOR GP-ELECTRIC
|
1 | 1249 |
| 7T-2265 |
STARTING MOTOR GP-ELECTRIC –OR–
|
1 | 1250 |
| 3T-7022 |
HOUSING AS-DRIVE
|
1 | 1251 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 1251 |
| 3T-0863 |
LEVER-SHIFT
|
1 | 1251 |
| 3T-0864 |
HOUSING AS-LEVER
|
1 | 1251 |
| 3T-0842 |
BEARING AS
|
1 | 1251 |
| 9X-0332 |
KIT-SOLENOID (STARTING MOTOR) (INCLUDES SOLENOID AS, WIRE, BAR, NUT & LOCKWASHERS)
|
1 | 1251 |
| 8T-4244 |
NUT (M12X1.75-THD)
|
4 | 1251 |
