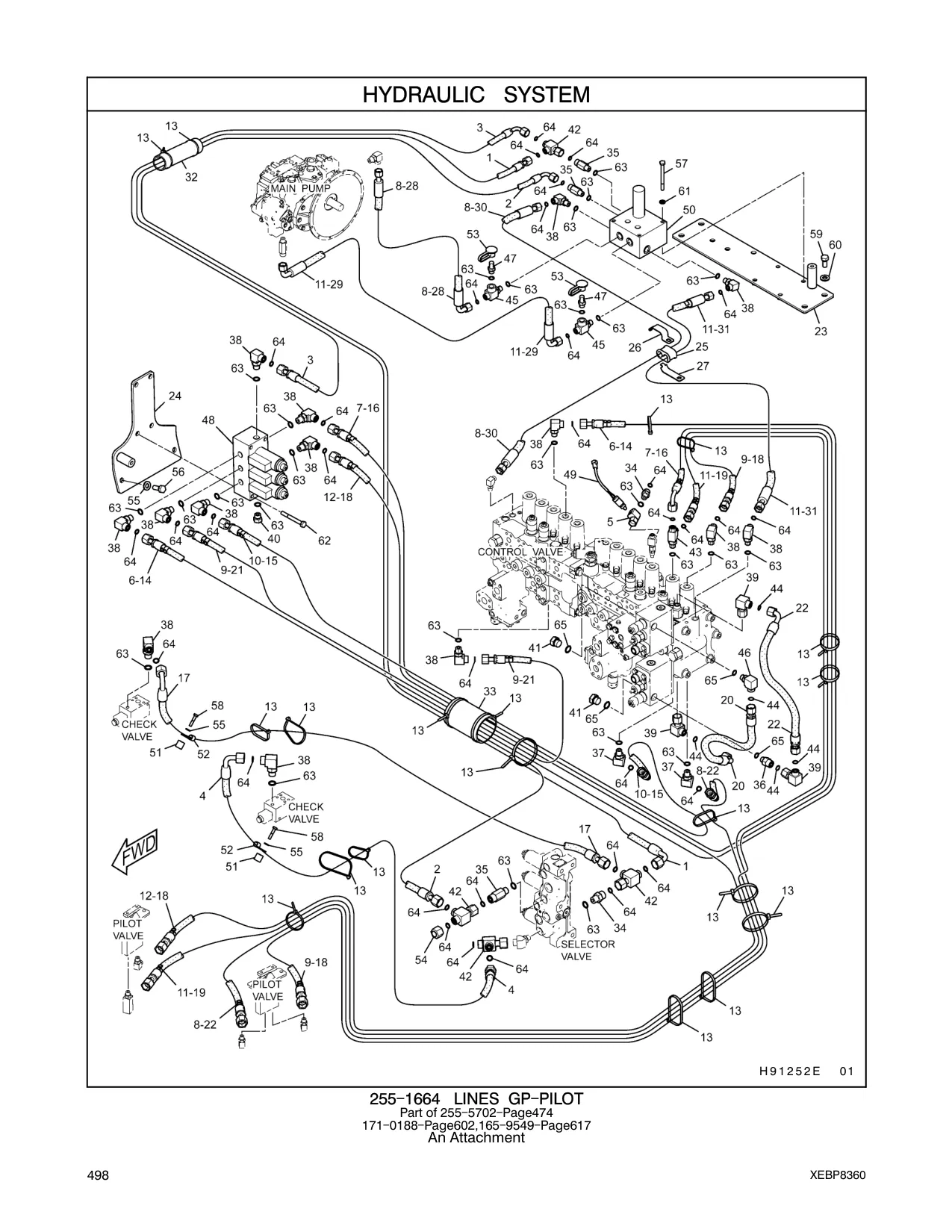

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 171-0188 |
171-0188
|
1 | 511 |
| 4I-0833 |
HOSE AS (NOM 06, L=1850mm)
|
1 | 512 |
| 6K-8178 |
CLIP
|
2 | 512 |
| 4I-0995 |
HOSE AS (NOM 06, L=2000mm)
|
1 | 512 |
| 6V-0852 |
CAP
|
2 | 512 |
| 4I-1739 |
HOSE AS (NOM 06, L=1020mm)
|
1 | 512 |
| 6V-9829 |
CAP AS
|
1 | 512 |
| 4I-1783 |
HOSE AS (NOM 06, L=1500mm)
|
1 | 512 |
| 8T-4121 |
WASHER
|
4 | 512 |
| 4I-3941 |
FITTING AS
|
1 | 512 |
| 8T-4136 |
BOLT (L=25mm)
|
2 | 512 |
| 4I-9521 |
BAND (L1,RED)
|
4 | 512 |
| 8T-4177 |
BOLT (L=90mm)
|
4 | 512 |
| 4I-9522 |
BAND (L2,YELLOW)
|
4 | 512 |
| 8T-4185 |
BOLT (L=50mm)
|
2 | 512 |
| 4I-9523 |
BAND (L3,BLUE)
|
8 | 512 |
| 8T-4192 |
BOLT (L=25mm)
|
4 | 512 |
| 4I-9524 |
BAND (L4,BROWN)
|
8 | 512 |
| 8T-4223 |
WASHER
|
4 | 512 |
| 4I-9525 |
BAND (R1,ORANGE)
|
4 | 512 |
| 8T-4224 |
WASHER
|
4 | 512 |
| 4I-9527 |
BAND (R3,GREEN)
|
8 | 512 |
| 8T-6870 |
BOLT (L=70mm)
|
4 | 512 |
| 4I-9528 |
BAND (R4,PURPLE)
|
4 | 512 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
27 | 512 |
| 7K-1181 |
STRAP
|
19 | 512 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
33 | 512 |
| 104-8774 |
HOSE AS (NOM 06, L=2200mm)
|
1 | 512 |
| 108-7357 |
HOSE AS (NOM 06, L=1950mm)
|
1 | 512 |
| 108-7387 |
HOSE AS (NOM 06, L=2250mm)
|
1 | 512 |
| 111-0988 |
HOSE AS (NOM 06, L=1950mm)
|
1 | 512 |
| 134-6921 |
HOSE AS (NOM 06, L=3950mm)
|
2 | 512 |
| 184-9210 |
HOSE AS (NOM 06, L=3600mm)
|
1 | 512 |
| 199-1609 |
HOSE AS (NOM 10, L=430mm)
|
2 | 512 |
| 221-4807 |
HOSE AS (NOM 06, L=1750mm)
|
1 | 512 |
| 223-6768 |
HOSE AS (NOM 06, L=3250mm)
|
1 | 512 |
| 255-1669 |
SUPPORT AS
|
1 | 512 |
| 266-1158 |
SUPPORT AS
|
1 | 512 |
| 275-1442 |
CLIP
|
1 | 512 |
| 275-1443 |
CLIP
|
1 | 512 |
| 275-1444 |
GROMMET
|
1 | 512 |
| 275-1497 |
HOSE AS (NOM 06, L=520mm)
|
1 | 512 |
| 278-6785 |
HOSE AS (NOM 06, L=660mm)
|
1 | 512 |
| 275-1503 |
HOSE AS (NOM 06, L=1750mm)
|
1 | 512 |
| 275-1506 |
HOSE AS (NOM 06, L=2550mm)
|
1 | 512 |
| 103-1384 |
GUARD
|
1 | 512 |
| 124-1008 |
GUARD
|
1 | 512 |
| 6V-8636 |
CONNECTOR
|
2 | 512 |
| 8T-0075 |
CONNECTOR
|
3 | 512 |
| 6V-8632 |
CONNECTOR
|
1 | 512 |
