| Part No. | Name | Qty | Page |
|---|---|---|---|

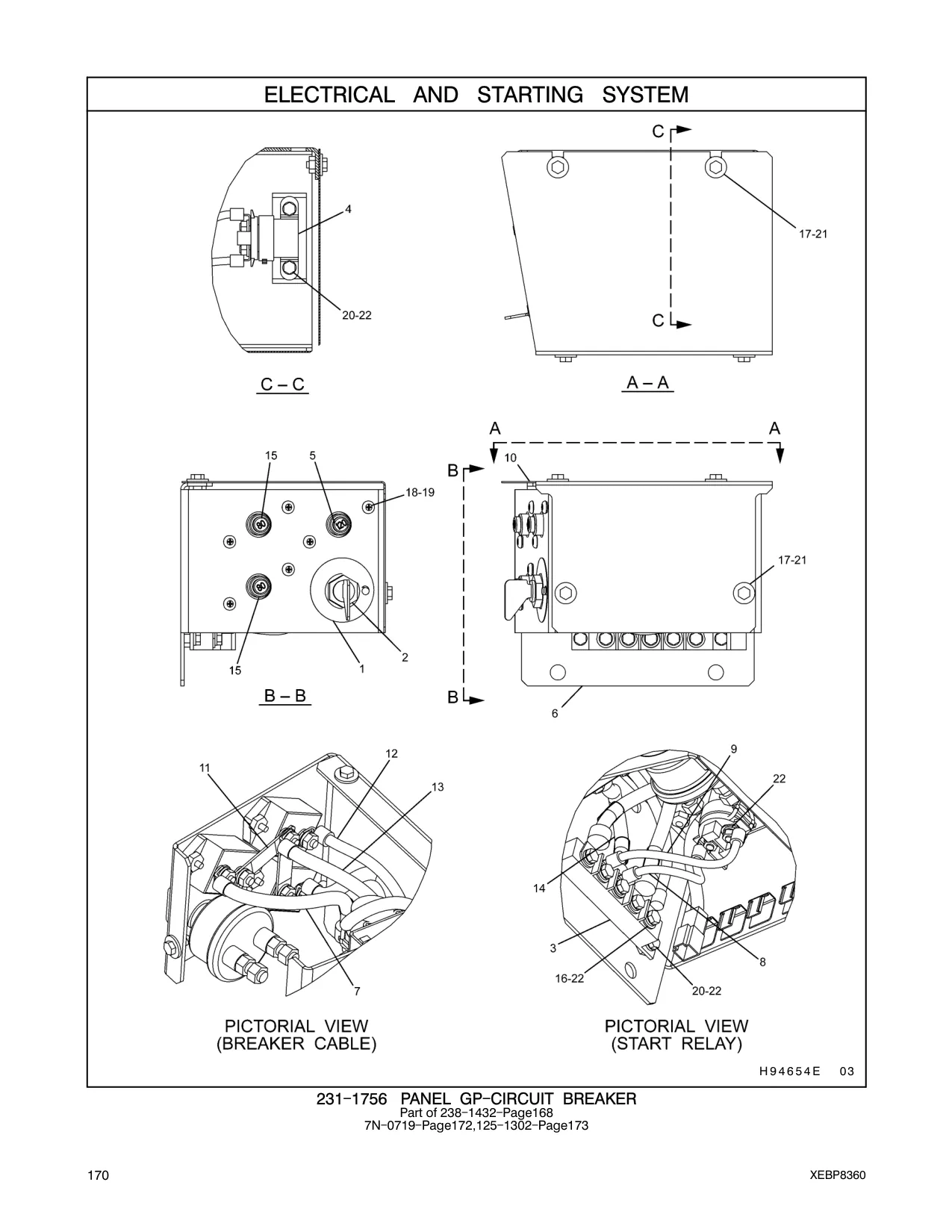

| 125-1302 |
125-1302
|
1 | 175 |
| 3E-8320 |
PLATE (INSTRUCTION)
|
1 | 176 |
| 7N-0719 |
SWITCH AS (DISCONNECT)
|
1 | 176 |
| 121-1023 |
BLOCK
|
1 | 176 |
| 125-1302 |
SWITCH AS (START RELAY)
|
1 | 176 |
| 216-4970 |
BREAKER AS
|
1 | 176 |
| 1H-3244 |
LOCKWASHER
|
2 | 176 |
| 6V-8187 |
NUT
|
2 | 176 |
| 8T-4205 |
WASHER
|
2 | 176 |
| 291-7547 |
BRACKET AS
|
1 | 176 |
| 234-1035 |
CABLE AS
|
1 | 176 |
| 9G-4343 |
TERMINAL
|
2 | 176 |
| 234-1037 |
WIRE AS
|
1 | 176 |
| 2L-8050 |
TERMINAL
|
2 | 176 |
| 234-1038 |
WIRE AS
|
1 | 176 |
| 2L-8050 |
TERMINAL
|
2 | 176 |
| 238-1506 |
COVER
|
1 | 176 |
| 238-2279 |
BUS
|
1 | 176 |
| 238-2280 |
WIRE AS
|
1 | 176 |
| 2L-8050 |
TERMINAL
|
2 | 176 |
| 251-0303 |
CABLE AS
|
1 | 176 |
| 9G-4343 |
TERMINAL
|
2 | 176 |
| 251-0304 |
CABLE AS
|
1 | 176 |
| 9G-4343 |
TERMINAL
|
2 | 176 |
| 171-2210 |
BREAKER AS
|
2 | 176 |
| 1H-3244 |
LOCKWASHER
|
2 | 176 |
| 6V-8187 |
NUT
|
2 | 176 |
| 8T-4205 |
WASHER
|
2 | 176 |
| 5C-9553 |
BOLT (L=16mm)
|
5 | 176 |
| 5P-4115 |
WASHER
|
4 | 176 |
| 6V-5645 |
SCREW
|
6 | 176 |
| 8T-0328 |
WASHER
|
6 | 176 |
| 8T-4171 |
BOLT (L=12mm)
|
4 | 176 |
| 8T-4970 |
BOLT (L=14mm)
|
4 | 176 |
| 9X-8256 |
WASHER
|
11 | 176 |
| 2H-3922 |
LOCKWASHER
|
1 | 177 |
| 8H-5303 |
NUT
|
1 | 177 |
| 9F-5644 |
LOCKWASHER
|
2 | 177 |
| 6F-7045 |
NUT
|
2 | 177 |
| 8H-5306 |
KEY
|
1 | 177 |
