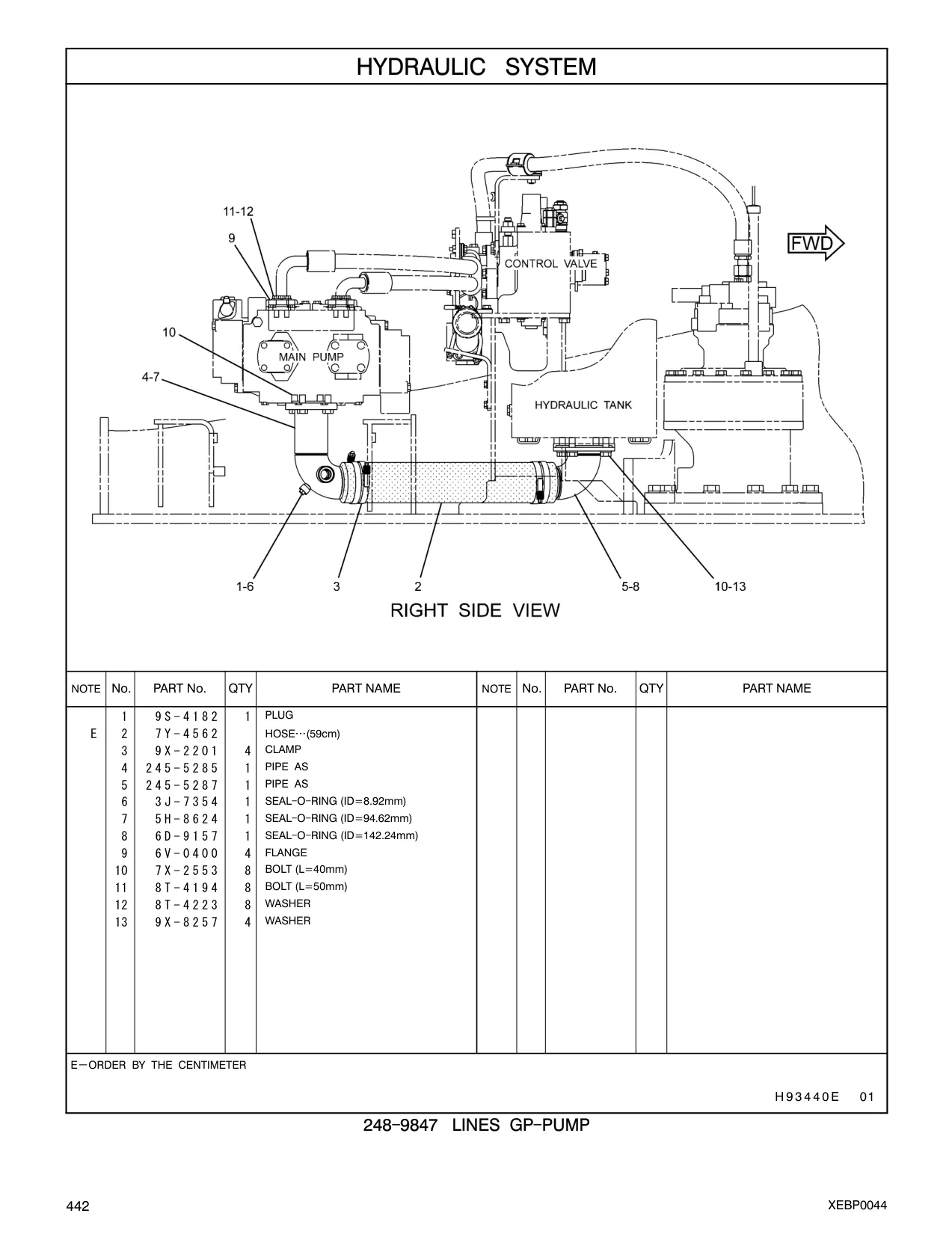

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 7Y-4562 |
HOSE (59cm)
|
1 | 478 |
| 9X-2201 |
CLAMP
|
4 | 478 |
| 245-5285 |
PIPE AS
|
1 | 478 |
| 245-5287 |
PIPE AS
|
1 | 478 |
| 3J-7354 |
SEAL - O - RING (ID=8.92mm)
|
1 | 478 |
| 5H-8624 |
SEAL - O - RING (ID=94.62mm)
|
1 | 478 |
| 6D-9157 |
SEAL - O - RING (ID=142.24mm)
|
1 | 478 |
| 6V-0400 |
FLANGE
|
4 | 478 |
| 7X-2553 |
BOLT (L=40mm)
|
8 | 478 |
| 8T-4194 |
BOLT (L=50mm)
|
8 | 478 |
| 8T-4223 |
WASHER
|
8 | 478 |
| 9X-8257 |
WASHER
|
4 | 478 |
| 7Y-4562 |
HOSE (59cm)
|
1 | 528 |
| 9X-2201 |
CLAMP
|
4 | 528 |
| 245-5285 |
PIPE AS
|
1 | 528 |
| 245-5287 |
PIPE AS
|
1 | 528 |
| 3J-7354 |
SEAL - O - RING (ID=8.92mm)
|
1 | 528 |
| 5H-8624 |
SEAL - O - RING (ID=94.62mm)
|
1 | 528 |
| 6D-9157 |
SEAL - O - RING (ID=142.24mm)
|
1 | 528 |
| 6V-0400 |
FLANGE
|
4 | 528 |
| 7X-2553 |
BOLT (L=40mm)
|
8 | 528 |
| 8T-4194 |
BOLT (L=50mm)
|
8 | 528 |
| 8T-4223 |
WASHER
|
8 | 528 |
| 9X-8257 |
WASHER
|
4 | 528 |
