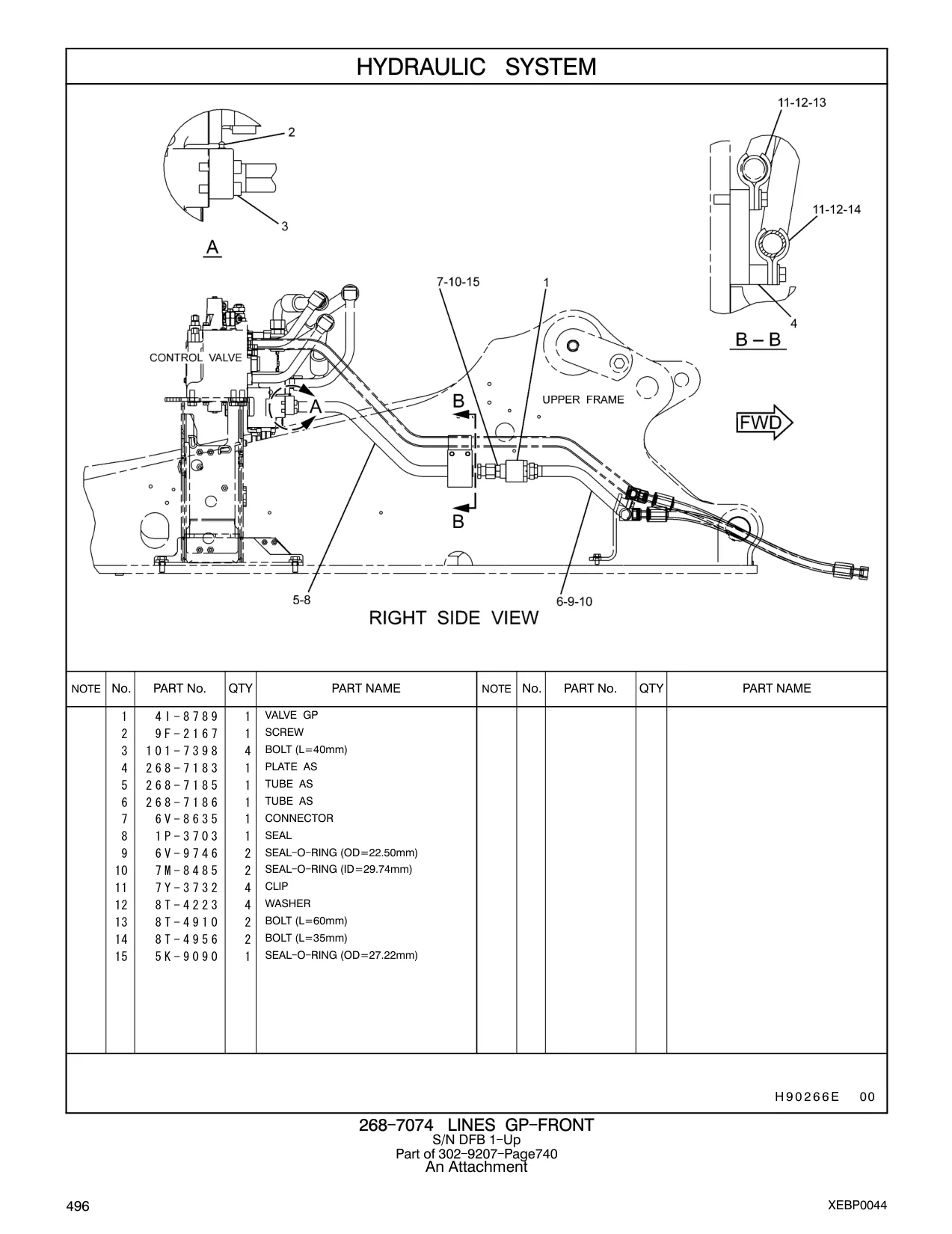

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 4I-8789 |
VALVE GP
|
1 | 538 |
| 9F-2167 |
SCREW
|
1 | 538 |
| 101-7398 |
BOLT (L=40mm)
|
4 | 538 |
| 268-7183 |
PLATE AS
|
1 | 538 |
| 268-7185 |
TUBE AS
|
1 | 538 |
| 268-7186 |
TUBE AS
|
1 | 538 |
| 6V-8635 |
CONNECTOR
|
1 | 538 |
| 1P-3703 |
SEAL
|
1 | 538 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
2 | 538 |
| 7M-8485 |
SEAL - O - RING (ID=29.74mm)
|
2 | 538 |
| 8T-4223 |
WASHER
|
4 | 538 |
| 8T-4910 |
BOLT (L=60mm)
|
2 | 538 |
| 8T-4956 |
BOLT (L=35mm)
|
2 | 538 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
1 | 538 |
| 4I-8789 |
VALVE GP
|
1 | 582 |
| 9F-2167 |
SCREW
|
1 | 582 |
| 101-7398 |
BOLT (L=40mm)
|
4 | 582 |
| 268-7183 |
PLATE AS
|
1 | 582 |
| 268-7185 |
TUBE AS
|
1 | 582 |
| 268-7186 |
TUBE AS
|
1 | 582 |
| 6V-8635 |
CONNECTOR
|
1 | 582 |
| 1P-3703 |
SEAL
|
1 | 582 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
2 | 582 |
| 7M-8485 |
SEAL - O - RING (ID=29.74mm)
|
2 | 582 |
| 8T-4223 |
WASHER
|
4 | 582 |
| 8T-4910 |
BOLT (L=60mm)
|
2 | 582 |
| 8T-4956 |
BOLT (L=35mm)
|
2 | 582 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
1 | 582 |
