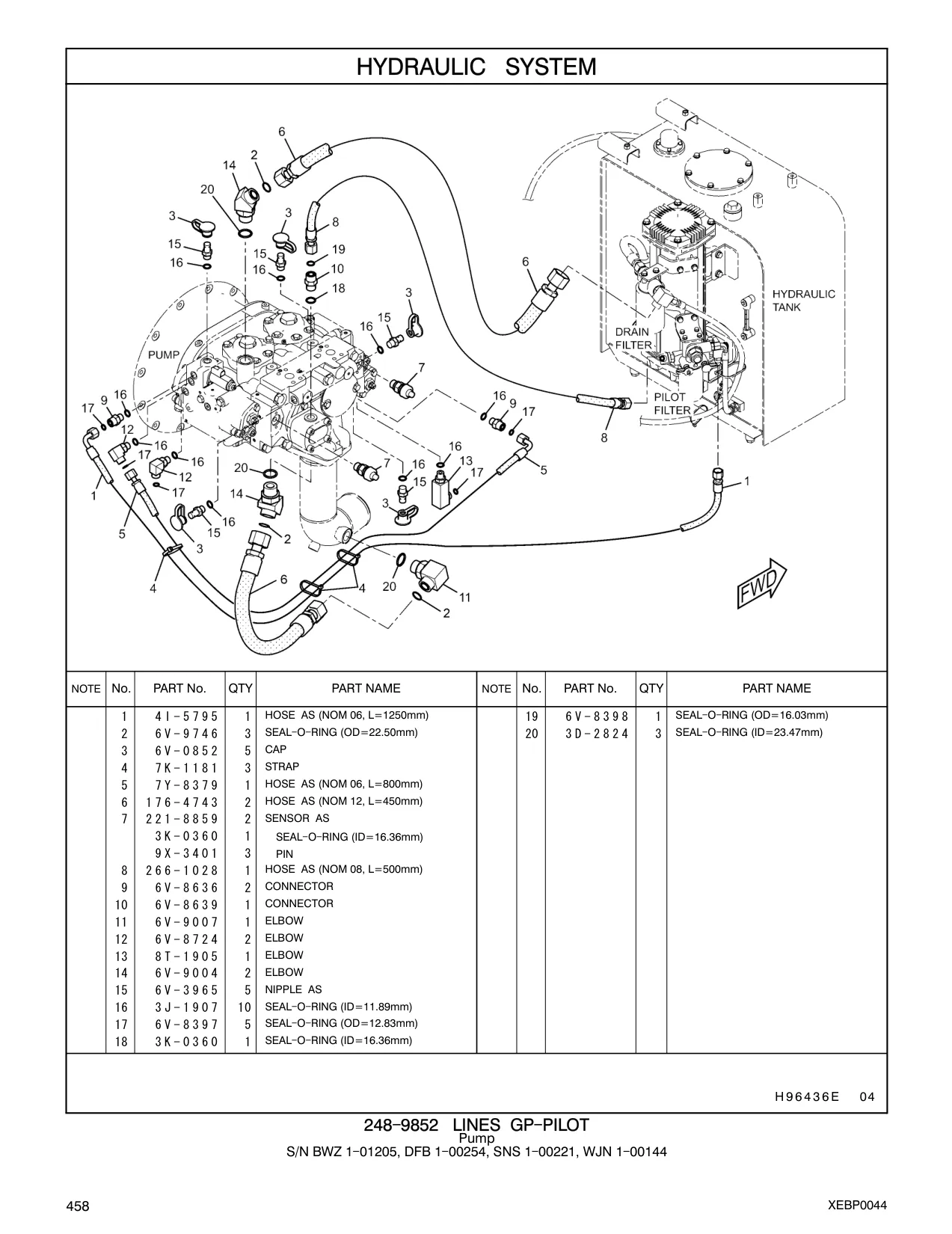

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 4I-5795 |
HOSE AS (NOM 06, L=1250mm)
|
1 | 498 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
1 | 498 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
3 | 498 |
| 6V-0852 |
CAP
|
5 | 498 |
| 7K-1181 |
STRAP
|
3 | 498 |
| 7Y-8379 |
HOSE AS (NOM 06, L=800mm)
|
1 | 498 |
| 176-4743 |
HOSE AS (NOM 12, L=450mm)
|
2 | 498 |
| 221-8859 |
SENSOR AS
|
2 | 498 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 498 |
| 9X-3401 |
PIN
|
3 | 498 |
| 266-1028 |
HOSE AS (NOM 08, L=500mm)
|
1 | 498 |
| 6V-8636 |
CONNECTOR
|
2 | 498 |
| 6V-8639 |
CONNECTOR
|
1 | 498 |
| 6V-9007 |
ELBOW
|
1 | 498 |
| 6V-8724 |
ELBOW
|
2 | 498 |
| 8T-1905 |
ELBOW
|
1 | 498 |
| 6V-3965 |
NIPPLE AS
|
5 | 498 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
10 | 498 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
5 | 498 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 498 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm) H 9 6 4 3 6 E 04
|
3 | 498 |
| 307-5120 |
HOSE AS (NOM 06, L=1350mm)
|
1 | 499 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
1 | 499 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
3 | 499 |
| 6V-0852 |
CAP
|
5 | 499 |
| 7K-1181 |
STRAP
|
3 | 499 |
| 7Y-8379 |
HOSE AS (NOM 06, L=800mm)
|
1 | 499 |
| 176-4743 |
HOSE AS (NOM 12, L=450mm)
|
2 | 499 |
| 221-8859 |
SENSOR AS
|
2 | 499 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 499 |
| 9X-3401 |
PIN
|
3 | 499 |
| 266-1028 |
HOSE AS (NOM 08, L=500mm)
|
1 | 499 |
| 6V-8636 |
CONNECTOR
|
2 | 499 |
| 6V-8639 |
CONNECTOR
|
1 | 499 |
| 6V-9007 |
ELBOW
|
1 | 499 |
| 6V-8724 |
ELBOW
|
2 | 499 |
| 8T-1905 |
ELBOW
|
1 | 499 |
| 6V-3965 |
NIPPLE AS
|
5 | 499 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
10 | 499 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
5 | 499 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 499 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm) H A 1 9 9 6 E 06
|
3 | 499 |
| 4I-5795 |
HOSE AS (NOM 06, L=1250mm)
|
1 | 546 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
1 | 546 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
3 | 546 |
| 6V-0852 |
CAP
|
5 | 546 |
| 7K-1181 |
STRAP
|
3 | 546 |
| 7Y-8379 |
HOSE AS (NOM 06, L=800mm)
|
1 | 546 |
| 176-4743 |
HOSE AS (NOM 12, L=450mm)
|
2 | 546 |
| 221-8859 |
SENSOR AS
|
2 | 546 |
