CAT 320D 5I-7526 Parts Manual Diagram - VALVE

Home › Parts Manual › CAT 320D › 5I-7526

Part No.

5I-7526

Name (EN)

VALVE

Name (CN)

Qty

12 per assembly

Group

212-8546

System

BASIC ENGINE

Source

CAT Official Parts Manual

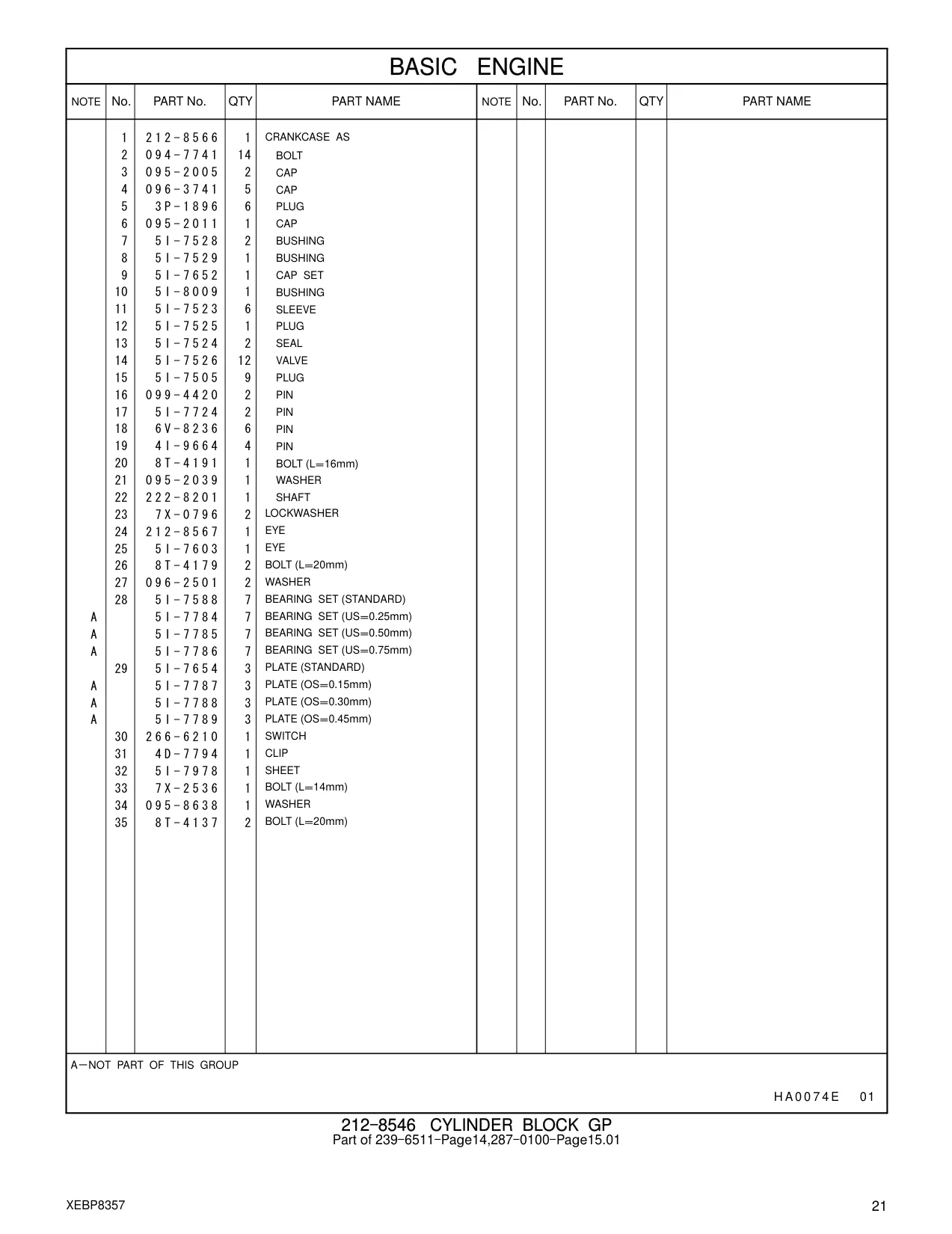

※ Click image to zoom · Page 33 of official CAT 320D parts manual

Part No.	Name	Qty	Page
239-6511	239-6511	1	32
212-8566	CRANKCASE AS	1	33
094-7741	BOLT	14	33
095-2005	CAP	2	33
096-3741	CAP	5	33
3P-1896	PLUG	6	33
095-2011	CAP	1	33
5I-7528	BUSHING	2	33
5I-7529	BUSHING	1	33
5I-7652	CAP SET	1	33
5I-8009	BUSHING	1	33
5I-7523	SLEEVE	6	33
5I-7525	PLUG	1	33
5I-7524	SEAL	2	33
5I-7505	PLUG	9	33
099-4420	PIN	2	33
5I-7724	PIN	2	33
6V-8236	PIN	6	33
4I-9664	PIN	4	33
8T-4191	BOLT (L=16mm)	1	33
095-2039	WASHER	1	33
222-8201	SHAFT	1	33
7X-0796	LOCKWASHER	2	33
212-8567	EYE	1	33
5I-7603	EYE	1	33
8T-4179	BOLT (L=20mm)	2	33
096-2501	WASHER	2	33
5I-7588	BEARING SET (STANDARD)	7	33
5I-7784	BEARING SET (US=0.25mm)	7	33
5I-7785	BEARING SET (US=0.50mm)	7	33
5I-7786	BEARING SET (US=0.75mm)	7	33
5I-7654	PLATE (STANDARD)	3	33
5I-7787	PLATE (OS=0.15mm)	3	33
5I-7788	PLATE (OS=0.30mm)	3	33
5I-7789	PLATE (OS=0.45mm)	3	33
266-6210	SWITCH	1	33
4D-7794	CLIP	1	33
5I-7978	SHEET	1	33
7X-2536	BOLT (L=14mm)	1	33
095-8638	WASHER	1	33
8T-4137	BOLT (L=20mm)	2	33
