| Part No. | Name | Qty | Page |
|---|---|---|---|
| 279-2732 |
279-2732
|
1 | 516 |
| 171-0188 |
171-0188
|
1 | 516 |

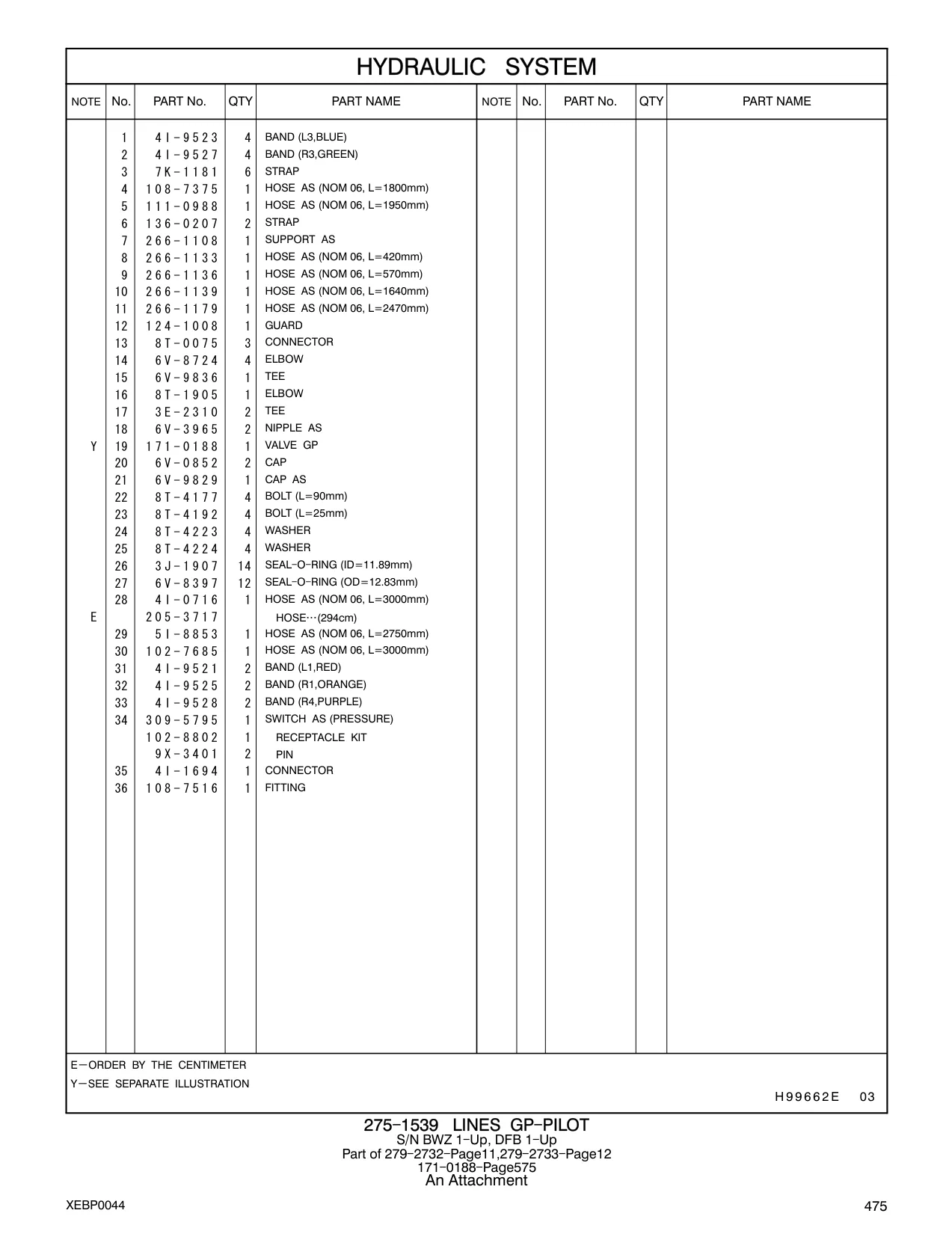

| 4I-9523 |
BAND (L3,BLUE)
|
4 | 517 |
| 4I-9527 |
BAND (R3,GREEN)
|
4 | 517 |
| 7K-1181 |
STRAP
|
6 | 517 |
| 108-7375 |
HOSE AS (NOM 06, L=1800mm)
|
1 | 517 |
| 111-0988 |
HOSE AS (NOM 06, L=1950mm)
|
1 | 517 |
| 136-0207 |
STRAP
|
2 | 517 |
| 266-1108 |
SUPPORT AS
|
1 | 517 |
| 266-1133 |
HOSE AS (NOM 06, L=420mm)
|
1 | 517 |
| 266-1136 |
HOSE AS (NOM 06, L=570mm)
|
1 | 517 |
| 266-1139 |
HOSE AS (NOM 06, L=1640mm)
|
1 | 517 |
| 266-1179 |
HOSE AS (NOM 06, L=2470mm)
|
1 | 517 |
| 124-1008 |
GUARD
|
1 | 517 |
| 8T-0075 |
CONNECTOR
|
3 | 517 |
| 6V-8724 |
ELBOW
|
4 | 517 |
| 6V-9836 |
TEE
|
1 | 517 |
| 8T-1905 |
ELBOW
|
1 | 517 |
| 3E-2310 |
TEE
|
2 | 517 |
| 6V-3965 |
NIPPLE AS
|
2 | 517 |
| 171-0188 |
VALVE GP
|
1 | 517 |
| 6V-0852 |
CAP
|
2 | 517 |
| 6V-9829 |
CAP AS
|
1 | 517 |
| 8T-4177 |
BOLT (L=90mm)
|
4 | 517 |
| 8T-4192 |
BOLT (L=25mm)
|
4 | 517 |
| 8T-4223 |
WASHER
|
4 | 517 |
| 8T-4224 |
WASHER
|
4 | 517 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
14 | 517 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
12 | 517 |
| 4I-0716 |
HOSE AS (NOM 06, L=3000mm)
|
1 | 517 |
| 205-3717 |
HOSE (294cm)
|
1 | 517 |
| 5I-8853 |
HOSE AS (NOM 06, L=2750mm)
|
1 | 517 |
| 102-7685 |
HOSE AS (NOM 06, L=3000mm)
|
1 | 517 |
| 4I-9521 |
BAND (L1,RED)
|
2 | 517 |
| 4I-9525 |
BAND (R1,ORANGE)
|
2 | 517 |
| 4I-9528 |
BAND (R4,PURPLE)
|
2 | 517 |
| 309-5795 |
SWITCH AS (PRESSURE)
|
1 | 517 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 517 |
| 9X-3401 |
PIN
|
2 | 517 |
| 108-7516 |
FITTING
|
1 | 517 |
| 257-2925 |
257-2925
|
1 | 562 |
| 171-0188 |
171-0188
|
1 | 562 |
| 4I-9523 |
BAND (L3,BLUE)
|
4 | 563 |
| 4I-9527 |
BAND (R3,GREEN)
|
4 | 563 |
| 7K-1181 |
STRAP
|
6 | 563 |
| 108-7375 |
HOSE AS (NOM 06, L=1800mm)
|
1 | 563 |
| 111-0988 |
HOSE AS (NOM 06, L=1950mm)
|
1 | 563 |
| 136-0207 |
STRAP
|
2 | 563 |
| 266-1108 |
SUPPORT AS
|
1 | 563 |
| 266-1133 |
HOSE AS (NOM 06, L=420mm)
|
1 | 563 |
