302-3196

PIPE AS

Group: 297-0504 · System: HYDRAULIC SYSTEM · Page: 644
Home › Parts Manual › CAT 320D › 302-3196

Part Information

Part No.
302-3196
Name (EN)
PIPE AS
Name (CN)
-
Qty
1 per assembly
Group
297-0504
System
HYDRAULIC SYSTEM
Source
CAT Official Parts Manual

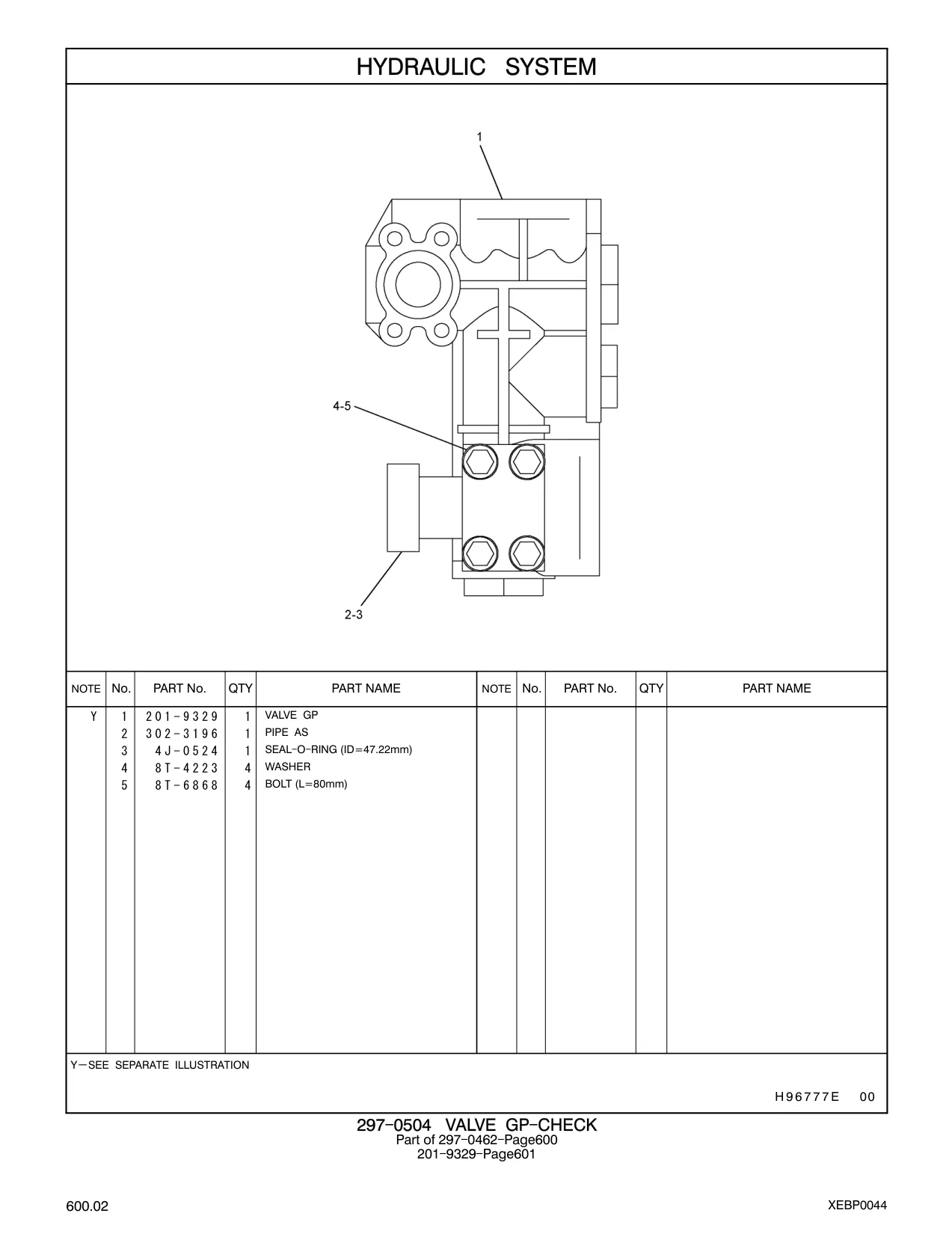

Installation Diagram

302-3196 - PIPE AS
※ Click image to zoom · Page 644 of official CAT 320D parts manual
×

Same Group Parts (297-0504) - 4 related

Part No. Name Qty Page
201-9329
VALVE GP
 1 644
4J-0524
SEAL - O - RING (ID=47.22mm)
 1 644
8T-4223
WASHER
 4 644
8T-6868
BOLT (L=80mm)
 4 644
Need price and stock for 302-3196? WSTPARTS supplies genuine CAT parts globally with fast delivery.
Request Quote →
