CAT 320D 297-7757 Parts Manual Diagram - PISTON

Home › Parts Manual › CAT 320D › 297-7757

Part No.

297-7757

Name (EN)

PISTON

Name (CN)

Qty

6 per assembly

Group

233-1157

System

BASIC ENGINE

Source

CAT Official Parts Manual

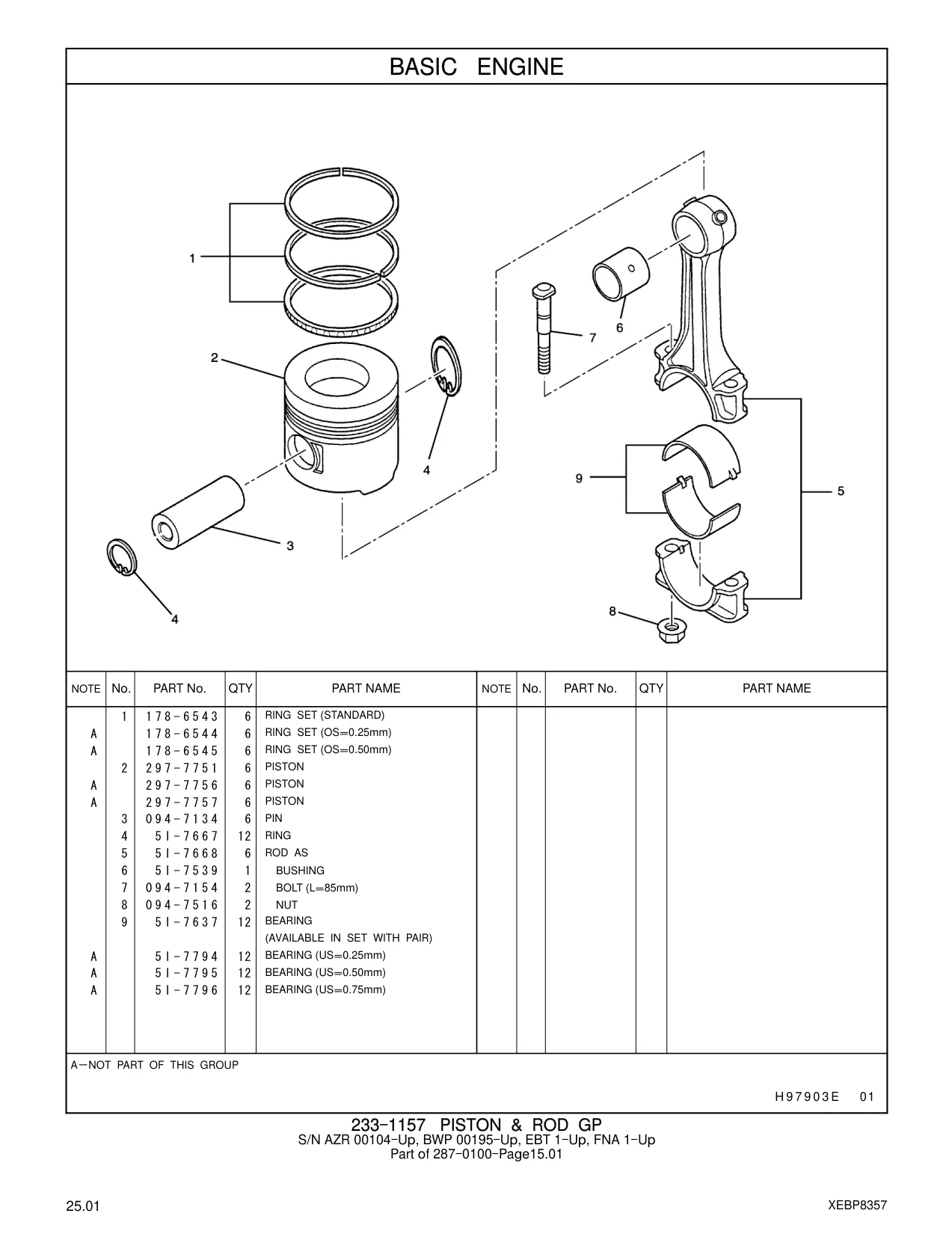

※ Click image to zoom · Page 38 of official CAT 320D parts manual

Part No.	Name	Qty	Page
178-6543	RING SET (STANDARD)	6	38
178-6544	RING SET (OS=0.25mm)	6	38
178-6545	RING SET (OS=0.50mm)	6	38
297-7751	PISTON	6	38
297-7756	PISTON	6	38
094-7134	PIN	6	38
5I-7667	RING	12	38
5I-7668	ROD AS	6	38
5I-7539	BUSHING	1	38
094-7154	BOLT (L=85mm)	2	38
094-7516	NUT	2	38
5I-7637	BEARING (AVAILABLE IN SET WITH PAIR)	12	38
5I-7794	BEARING (US=0.25mm)	12	38
5I-7795	BEARING (US=0.50mm)	12	38
5I-7796	BEARING (US=0.75mm)	12	38
