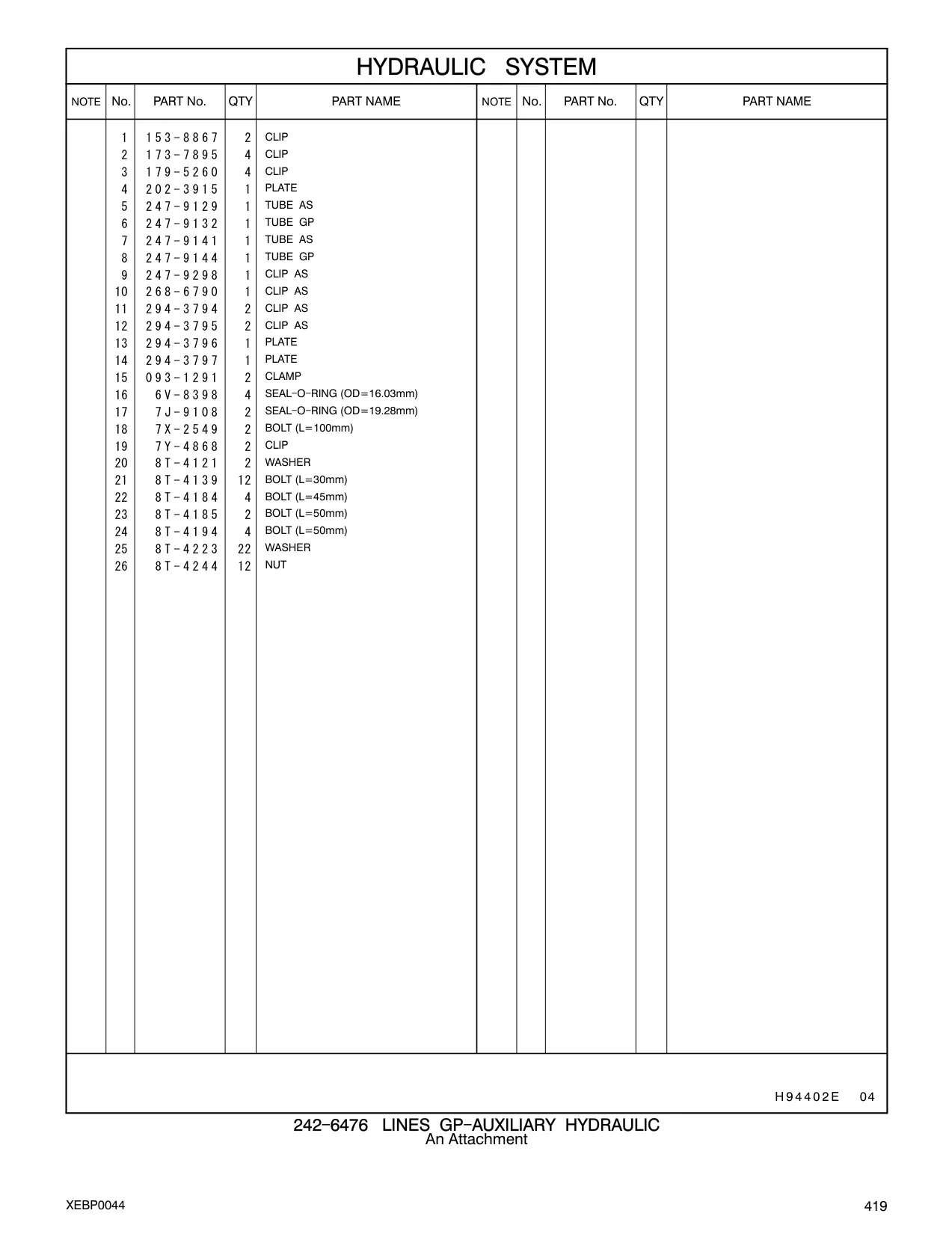

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 153-8867 |
CLIP
|
2 | 453 |
| 173-7895 |
CLIP
|
4 | 453 |
| 179-5260 |
CLIP
|
4 | 453 |
| 202-3915 |
PLATE
|
1 | 453 |
| 247-9129 |
TUBE AS
|
1 | 453 |
| 247-9132 |
TUBE GP
|
1 | 453 |
| 247-9141 |
TUBE AS
|
1 | 453 |
| 247-9144 |
TUBE GP
|
1 | 453 |
| 247-9298 |
CLIP AS
|
1 | 453 |
| 268-6790 |
CLIP AS
|
1 | 453 |
| 294-3794 |
CLIP AS
|
2 | 453 |
| 294-3795 |
CLIP AS
|
2 | 453 |
| 294-3797 |
PLATE
|
1 | 453 |
| 093-1291 |
CLAMP
|
2 | 453 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 453 |
| 7J-9108 |
SEAL - O - RING (OD=19.28mm)
|
2 | 453 |
| 7X-2549 |
BOLT (L=100mm)
|
2 | 453 |
| 7Y-4868 |
CLIP
|
2 | 453 |
| 8T-4121 |
WASHER
|
2 | 453 |
| 8T-4139 |
BOLT (L=30mm)
|
12 | 453 |
| 8T-4184 |
BOLT (L=45mm)
|
4 | 453 |
| 8T-4185 |
BOLT (L=50mm)
|
2 | 453 |
| 8T-4194 |
BOLT (L=50mm)
|
4 | 453 |
| 8T-4223 |
WASHER
|
22 | 453 |
| 8T-4244 |
NUT
|
12 | 453 |
| 153-8867 |
CLIP
|
2 | 499 |
| 173-7895 |
CLIP
|
4 | 499 |
| 179-5260 |
CLIP
|
4 | 499 |
| 202-3915 |
PLATE
|
1 | 499 |
| 247-9129 |
TUBE AS
|
1 | 499 |
| 247-9132 |
TUBE GP
|
1 | 499 |
| 247-9141 |
TUBE AS
|
1 | 499 |
| 247-9144 |
TUBE GP
|
1 | 499 |
| 247-9298 |
CLIP AS
|
1 | 499 |
| 268-6790 |
CLIP AS
|
1 | 499 |
| 294-3794 |
CLIP AS
|
2 | 499 |
| 294-3795 |
CLIP AS
|
2 | 499 |
| 294-3797 |
PLATE
|
1 | 499 |
| 093-1291 |
CLAMP
|
2 | 499 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 499 |
| 7J-9108 |
SEAL - O - RING (OD=19.28mm)
|
2 | 499 |
| 7X-2549 |
BOLT (L=100mm)
|
2 | 499 |
| 7Y-4868 |
CLIP
|
2 | 499 |
| 8T-4121 |
WASHER
|
2 | 499 |
| 8T-4139 |
BOLT (L=30mm)
|
12 | 499 |
| 8T-4184 |
BOLT (L=45mm)
|
4 | 499 |
| 8T-4185 |
BOLT (L=50mm)
|
2 | 499 |
| 8T-4194 |
BOLT (L=50mm)
|
4 | 499 |
| 8T-4223 |
WASHER
|
22 | 499 |
| 8T-4244 |
NUT
|
12 | 499 |
