SHEET AS

Group: 289-6424 · System: FRAME AND BODY · Page: 291
Home › Parts Manual › CAT 320D › 286-6281

Part Information

Part No.
286-6281
Name (EN)
SHEET AS
Name (CN)
-
Qty
1 per assembly
Group
289-6424
System
FRAME AND BODY
Source
CAT Official Parts Manual

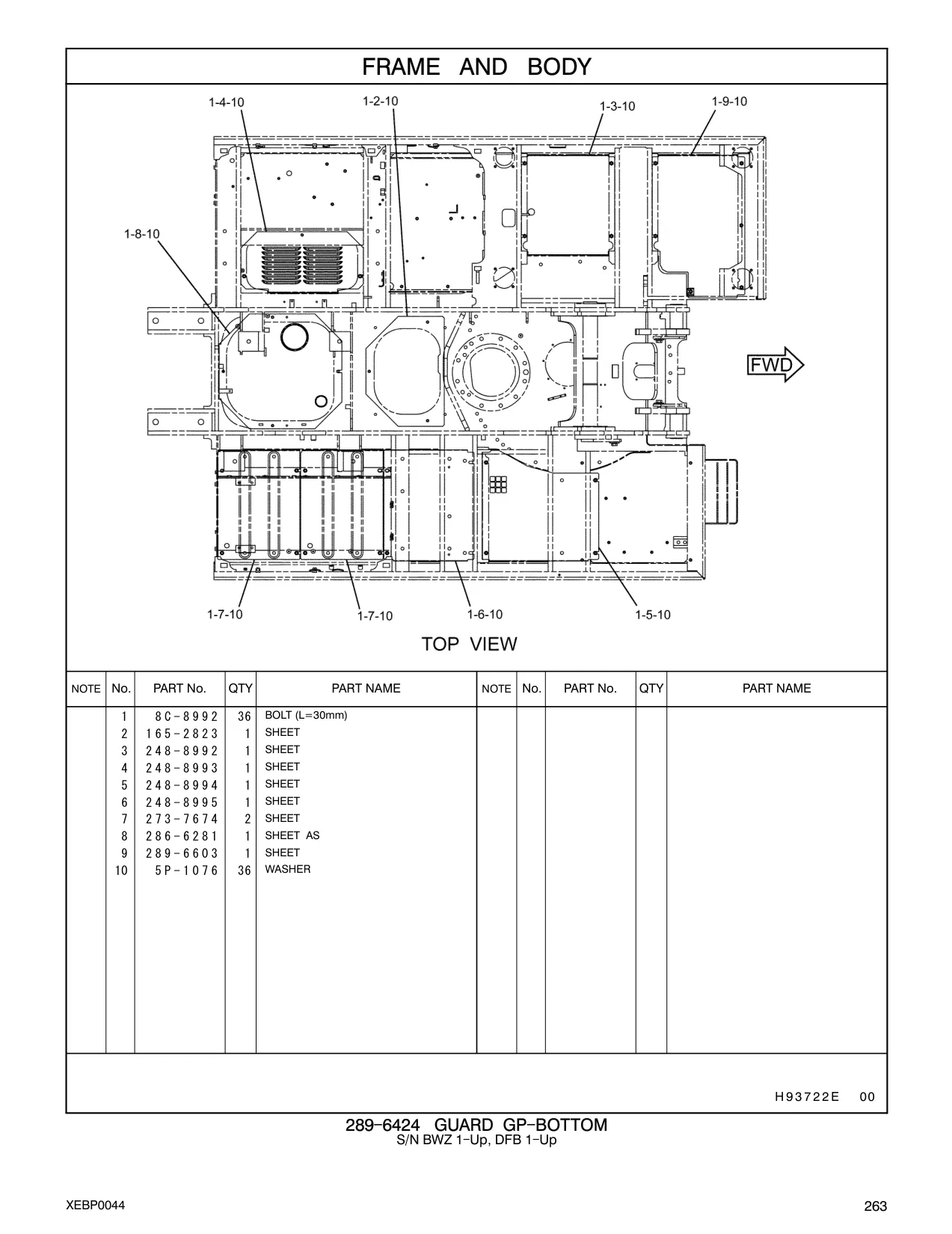

Installation Diagram

286-6281 - SHEET AS
※ Click image to zoom · Page 291 of official CAT 320D parts manual
×

Same Group Parts (289-6424) - 9 related

Part No. Name Qty Page
8C-8992
BOLT (L=30mm)
 36 291
165-2823
SHEET
 1 291
248-8992
SHEET
 1 291
248-8993
SHEET
 1 291
248-8994
SHEET
 1 291
248-8995
SHEET
 1 291
273-7674
SHEET
 2 291
289-6603
SHEET
 1 291
5P-1076
WASHER
 36 291
Need price and stock for 286-6281? WSTPARTS supplies genuine CAT parts globally with fast delivery.
Request Quote →
