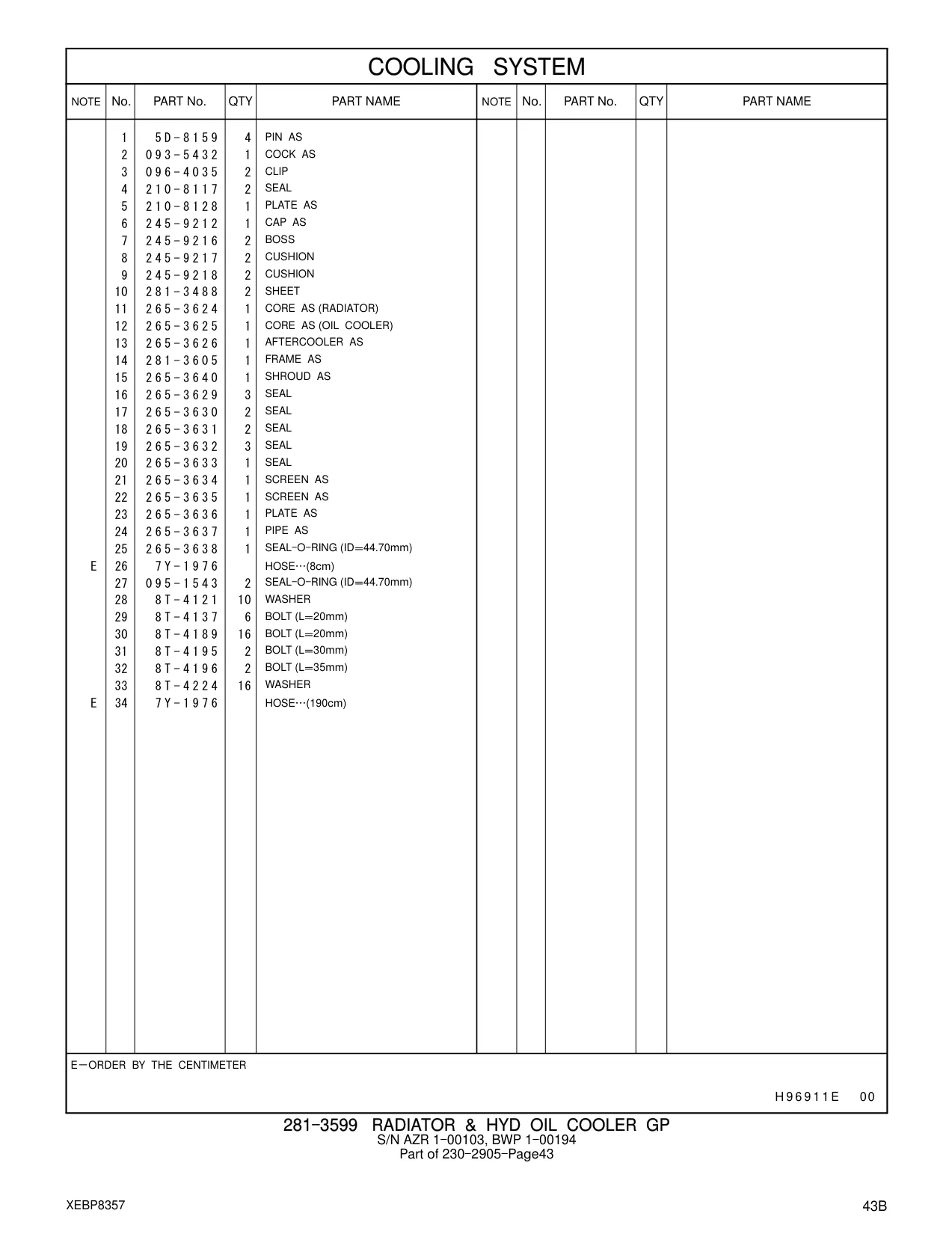

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 230-2905 |
230-2905
|
1 | 60 |
| 5D-8159 |
PIN AS
|
4 | 61 |
| 093-5432 |
COCK AS
|
1 | 61 |
| 096-4035 |
CLIP
|
2 | 61 |
| 210-8117 |
SEAL
|
2 | 61 |
| 210-8128 |
PLATE AS
|
1 | 61 |
| 245-9212 |
CAP AS
|
1 | 61 |
| 245-9216 |
BOSS
|
2 | 61 |
| 245-9217 |
CUSHION
|
2 | 61 |
| 245-9218 |
CUSHION
|
2 | 61 |
| 281-3488 |
SHEET
|
2 | 61 |
| 265-3624 |
CORE AS (RADIATOR)
|
1 | 61 |
| 265-3625 |
CORE AS (OIL COOLER)
|
1 | 61 |
| 265-3626 |
AFTERCOOLER AS
|
1 | 61 |
| 281-3605 |
FRAME AS
|
1 | 61 |
| 265-3629 |
SEAL
|
3 | 61 |
| 265-3630 |
SEAL
|
2 | 61 |
| 265-3631 |
SEAL
|
2 | 61 |
| 265-3632 |
SEAL
|
3 | 61 |
| 265-3633 |
SEAL
|
1 | 61 |
| 265-3634 |
SCREEN AS
|
1 | 61 |
| 265-3635 |
SCREEN AS
|
1 | 61 |
| 265-3636 |
PLATE AS
|
1 | 61 |
| 265-3637 |
PIPE AS
|
1 | 61 |
| 265-3638 |
SEAL - O - RING (ID=44.70mm)
|
1 | 61 |
| 7Y-1976 |
HOSE (8cm)
|
1 | 61 |
| 095-1543 |
SEAL - O - RING (ID=44.70mm)
|
2 | 61 |
| 8T-4121 |
WASHER
|
10 | 61 |
| 8T-4137 |
BOLT (L=20mm)
|
6 | 61 |
| 8T-4189 |
BOLT (L=20mm)
|
16 | 61 |
| 8T-4195 |
BOLT (L=30mm)
|
2 | 61 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 61 |
| 8T-4224 |
WASHER
|
16 | 61 |
| 7Y-1976 |
HOSE (190cm)
|
1 | 61 |
