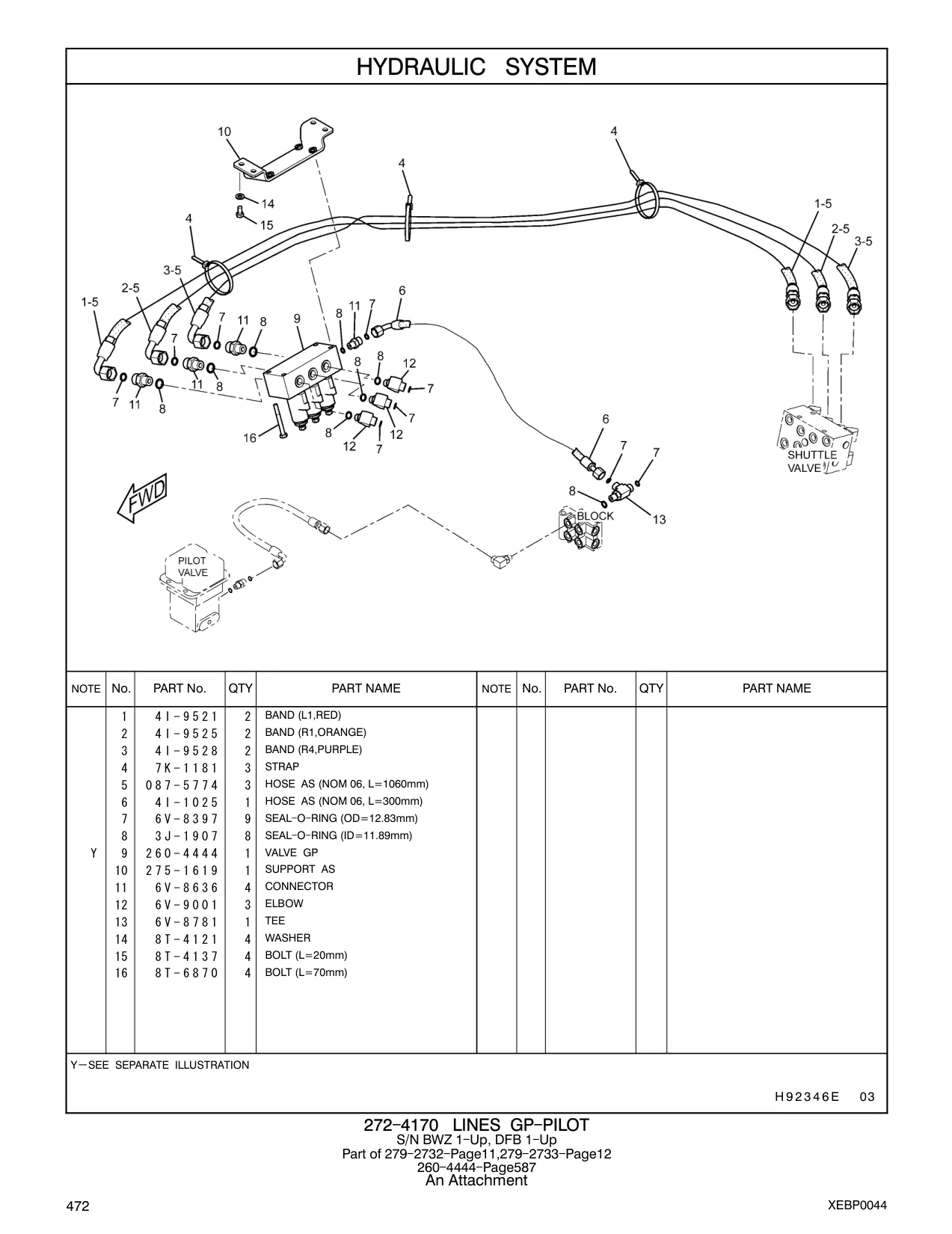

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 4I-9521 |
BAND (L1,RED)
|
2 | 514 |
| 4I-9525 |
BAND (R1,ORANGE)
|
2 | 514 |
| 4I-9528 |
BAND (R4,PURPLE)
|
2 | 514 |
| 7K-1181 |
STRAP
|
3 | 514 |
| 087-5774 |
HOSE AS (NOM 06, L=1060mm)
|
3 | 514 |
| 4I-1025 |
HOSE AS (NOM 06, L=300mm)
|
1 | 514 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
9 | 514 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
8 | 514 |
| 275-1619 |
SUPPORT AS
|
1 | 514 |
| 6V-8636 |
CONNECTOR
|
4 | 514 |
| 6V-9001 |
ELBOW
|
3 | 514 |
| 6V-8781 |
TEE
|
1 | 514 |
| 8T-4121 |
WASHER
|
4 | 514 |
| 8T-4137 |
BOLT (L=20mm)
|
4 | 514 |
| 8T-6870 |
BOLT (L=70mm)
|
4 | 514 |
| 4I-9521 |
BAND (L1,RED)
|
2 | 550 |
| 4I-9525 |
BAND (R1,ORANGE)
|
2 | 550 |
| 4I-9528 |
BAND (R4,PURPLE)
|
2 | 550 |
| 7K-1181 |
STRAP
|
3 | 550 |
| 087-5774 |
HOSE AS (NOM 06, L=1060mm)
|
3 | 550 |
| 4I-1025 |
HOSE AS (NOM 06, L=300mm)
|
1 | 550 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
9 | 550 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
8 | 550 |
| 275-1619 |
SUPPORT AS
|
1 | 550 |
| 6V-8636 |
CONNECTOR
|
4 | 550 |
| 6V-9001 |
ELBOW
|
3 | 550 |
| 6V-8781 |
TEE
|
1 | 550 |
| 8T-4121 |
WASHER
|
4 | 550 |
| 8T-4137 |
BOLT (L=20mm)
|
4 | 550 |
| 8T-6870 |
BOLT (L=70mm)
|
4 | 550 |
