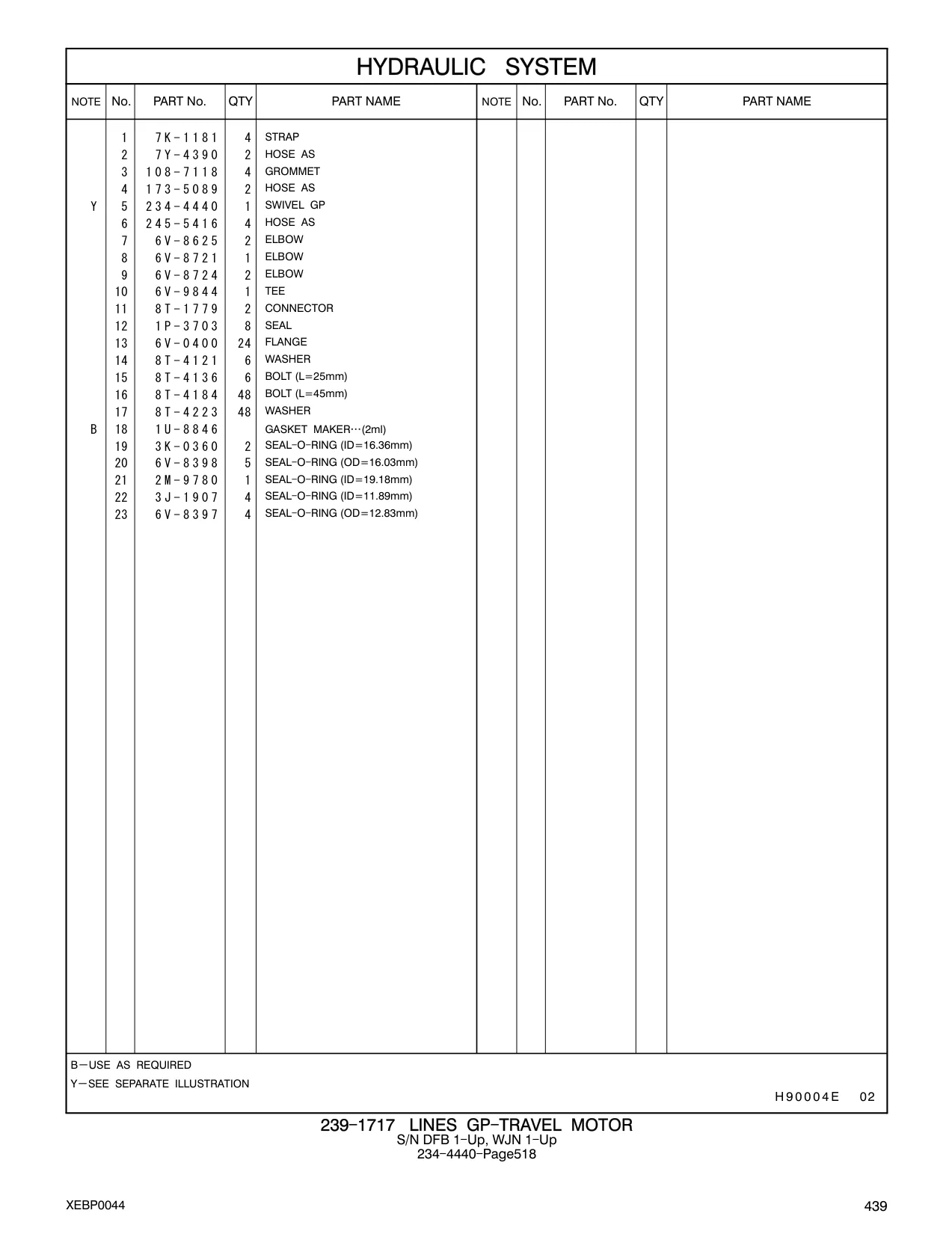

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 234-4440 |
234-4440
|
1 | 472 |
| 7K-1181 |
STRAP
|
4 | 473 |
| 7Y-4390 |
HOSE AS
|
2 | 473 |
| 108-7118 |
GROMMET
|
4 | 473 |
| 173-5089 |
HOSE AS
|
2 | 473 |
| 234-4440 |
SWIVEL GP
|
1 | 473 |
| 6V-8625 |
ELBOW
|
2 | 473 |
| 6V-8721 |
ELBOW
|
1 | 473 |
| 6V-8724 |
ELBOW
|
2 | 473 |
| 6V-9844 |
TEE
|
1 | 473 |
| 8T-1779 |
CONNECTOR
|
2 | 473 |
| 1P-3703 |
SEAL
|
8 | 473 |
| 6V-0400 |
FLANGE
|
24 | 473 |
| 8T-4121 |
WASHER
|
6 | 473 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 473 |
| 8T-4184 |
BOLT (L=45mm)
|
48 | 473 |
| 8T-4223 |
WASHER
|
48 | 473 |
| 1U-8846 |
GASKET MAKER (2ml)
|
1 | 473 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
2 | 473 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
5 | 473 |
| 2M-9780 |
SEAL - O - RING (ID=19.18mm)
|
1 | 473 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
4 | 473 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
4 | 473 |
| 234-4440 |
234-4440
|
1 | 522 |
| 7K-1181 |
STRAP
|
4 | 523 |
| 7Y-4390 |
HOSE AS
|
2 | 523 |
| 108-7118 |
GROMMET
|
4 | 523 |
| 173-5089 |
HOSE AS
|
2 | 523 |
| 234-4440 |
SWIVEL GP
|
1 | 523 |
| 6V-8625 |
ELBOW
|
2 | 523 |
| 6V-8721 |
ELBOW
|
1 | 523 |
| 6V-8724 |
ELBOW
|
2 | 523 |
| 6V-9844 |
TEE
|
1 | 523 |
| 8T-1779 |
CONNECTOR
|
2 | 523 |
| 1P-3703 |
SEAL
|
8 | 523 |
| 6V-0400 |
FLANGE
|
24 | 523 |
| 8T-4121 |
WASHER
|
6 | 523 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 523 |
| 8T-4184 |
BOLT (L=45mm)
|
48 | 523 |
| 8T-4223 |
WASHER
|
48 | 523 |
| 1U-8846 |
GASKET MAKER (2ml)
|
1 | 523 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
2 | 523 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
5 | 523 |
| 2M-9780 |
SEAL - O - RING (ID=19.18mm)
|
1 | 523 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
4 | 523 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
4 | 523 |
