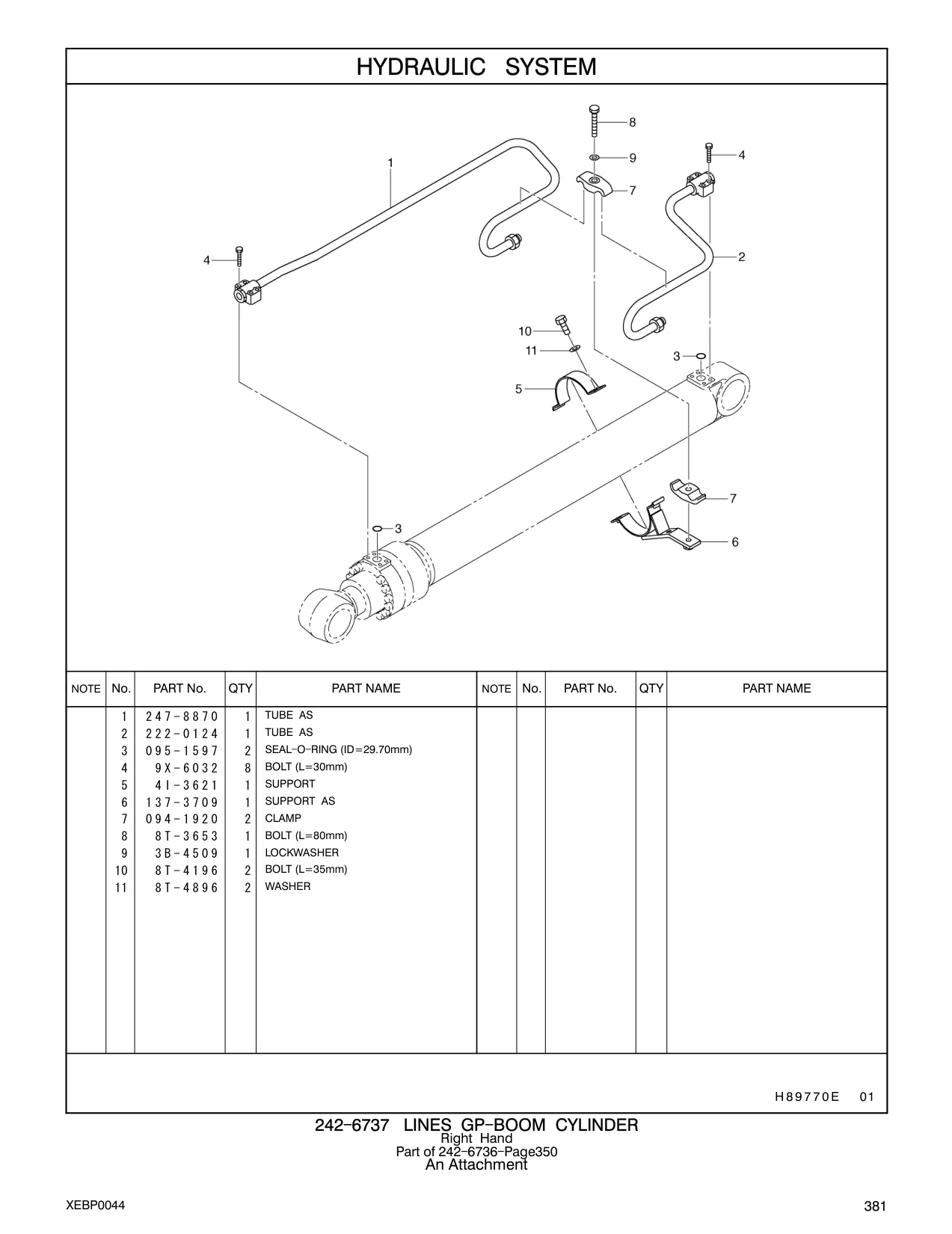

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 247-8870 |
TUBE AS
|
1 | 415 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 415 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 415 |
| 4I-3621 |
SUPPORT
|
1 | 415 |
| 137-3709 |
SUPPORT AS
|
1 | 415 |
| 094-1920 |
CLAMP
|
2 | 415 |
| 8T-3653 |
BOLT (L=80mm)
|
1 | 415 |
| 3B-4509 |
LOCKWASHER
|
1 | 415 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 415 |
| 8T-4896 |
WASHER
|
2 | 415 |
| 247-8870 |
TUBE AS
|
1 | 463 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 463 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 463 |
| 4I-3621 |
SUPPORT
|
1 | 463 |
| 137-3709 |
SUPPORT AS
|
1 | 463 |
| 094-1920 |
CLAMP
|
2 | 463 |
| 8T-3653 |
BOLT (L=80mm)
|
1 | 463 |
| 3B-4509 |
LOCKWASHER
|
1 | 463 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 463 |
| 8T-4896 |
WASHER
|
2 | 463 |
