CAT 320C 8E-9490 Parts Manual Diagram - ADAPTER H 8 8 7 9 9 E 06

Home › Parts Manual › CAT 320C › 8E-9490

Part No.

8E-9490

Name (EN)

ADAPTER H 8 8 7 9 9 E 06

Name (CN)

Qty

5 per assembly

Group

168-2969

System

IMPLEMENTS

Source

CAT Official Parts Manual

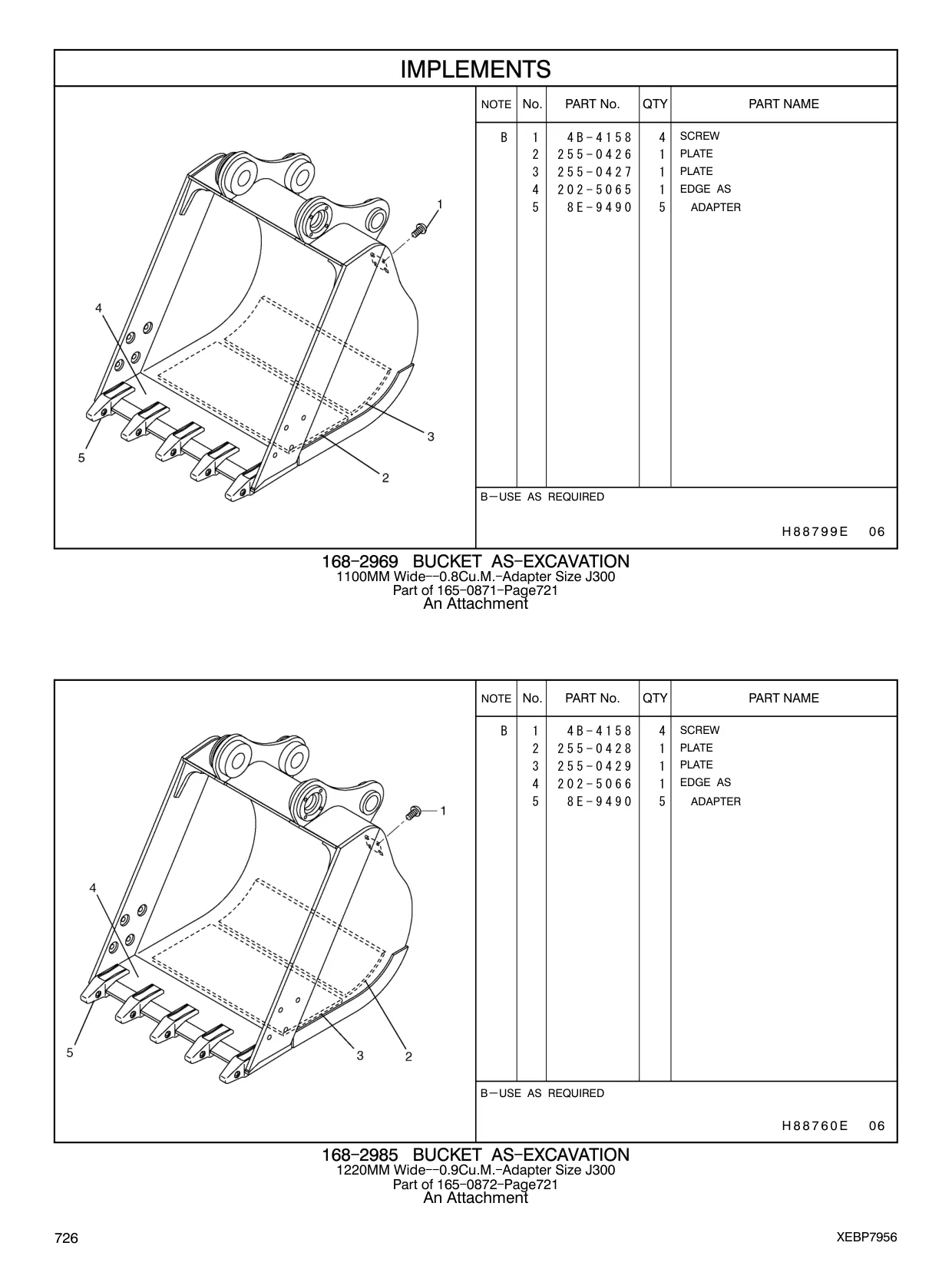

※ Click image to zoom · Page 1093 of official CAT 320C parts manual

Part No.	Name	Qty	Page
4B-4158	SCREW	4	1093
255-0426	PLATE	1	1093
255-0427	PLATE	1	1093
202-5065	EDGE AS	1	1093
4B-4158	SCREW	4	1093
255-0428	PLATE	1	1093
255-0429	PLATE	1	1093
202-5066	EDGE AS	1	1093
4B-4158	SCREW	4	988
216-5901	PLATE	1	988
216-5902	PLATE	1	988
202-5065	EDGE AS	1	988
168-3019	EDGE	1	988
093-9730	ADAPTER	5	988
168-2992	PLATE	1	988
168-2991	PLATE	1	988
4B-4158	SCREW H 8 6 6 2 9 E 00	4	988
4B-4158	SCREW	4	764
216-5901	PLATE	1	764
216-5902	PLATE	1	764
202-5065	EDGE AS	1	764
4B-4158	SCREW	4	764
168-2992	PLATE	1	764
168-2991	PLATE	1	764
202-5066	EDGE AS	1	764
4B-4158	SCREW	4	944
255-0426	PLATE	1	944
255-0427	PLATE	1	944
202-5065	EDGE AS	1	944
4B-4158	SCREW	4	944
255-0428	PLATE	1	944
255-0429	PLATE	1	944
202-5066	EDGE AS	1	944
