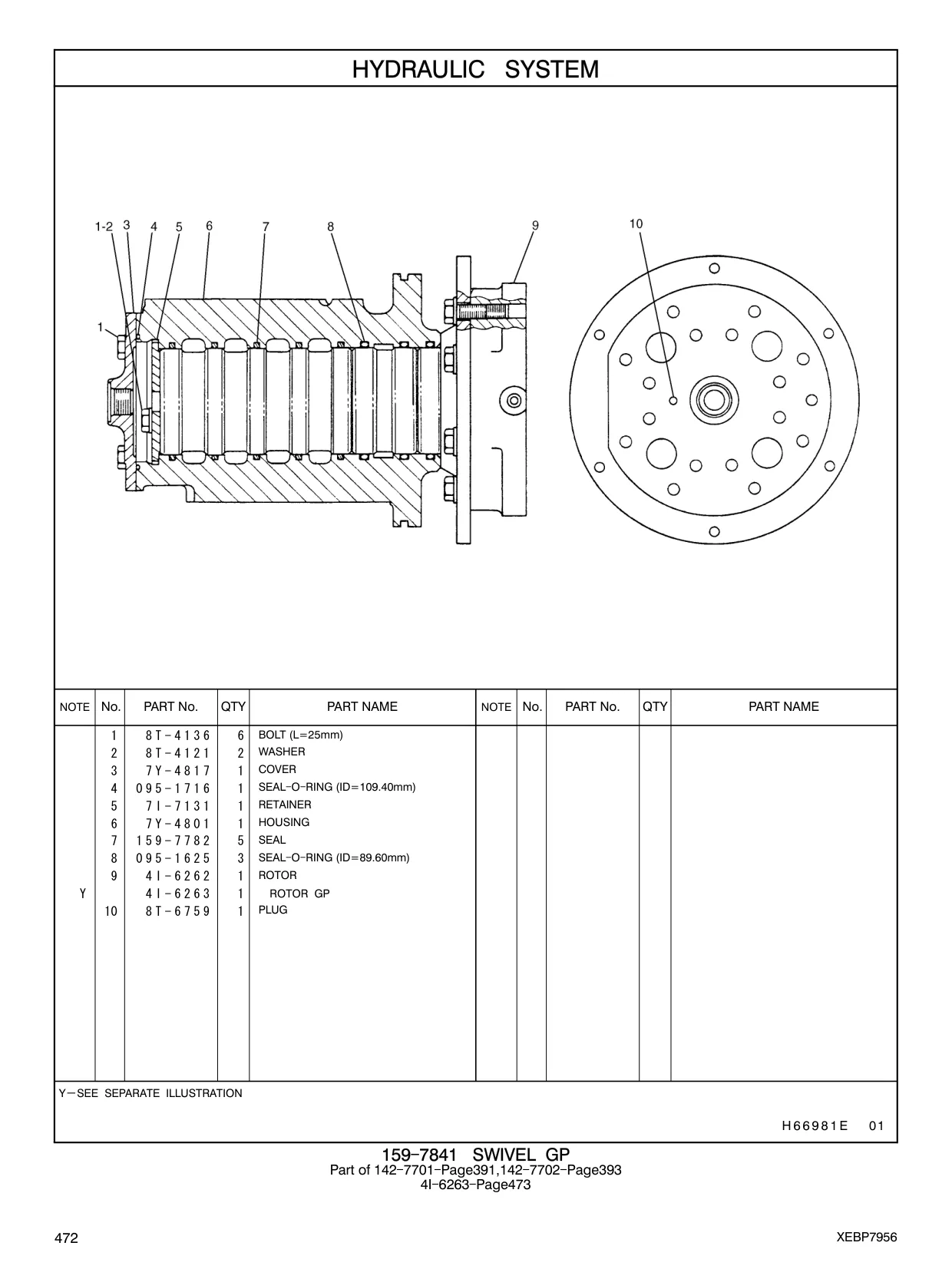

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 8T-4136 |
BOLT (L=25mm)
|
6 | 763 |
| 8T-4121 |
WASHER
|
2 | 763 |
| 7Y-4817 |
COVER
|
1 | 763 |
| 095-1716 |
SEAL - O - RING (ID=109.40mm)
|
1 | 763 |
| 7I-7131 |
RETAINER
|
1 | 763 |
| 159-7782 |
SEAL
|
5 | 763 |
| 095-1625 |
SEAL - O - RING (ID=89.60mm)
|
3 | 763 |
| 4I-6262 |
ROTOR
|
1 | 763 |
| 4I-6263 |
ROTOR GP
|
1 | 763 |
| 8T-6759 |
PLUG
|
1 | 763 |
| 8T-4139 |
BOLT (L=30mm)
|
5 | 764 |
| 8T-4223 |
WASHER
|
5 | 764 |
| 7Y-4804 |
PLATE
|
1 | 764 |
| 1U-8846 |
GASKET MAKER (2ml)
|
1 | 764 |
| 7Y-4803 |
ROTOR 4I - 6263 Part of 159
|
1 | 764 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 684 |
| 8T-4121 |
WASHER
|
2 | 684 |
| 7Y-4817 |
COVER
|
1 | 684 |
| 095-1716 |
SEAL - O - RING (ID=109.40mm)
|
1 | 684 |
| 7I-7131 |
RETAINER
|
1 | 684 |
| 159-7782 |
SEAL
|
5 | 684 |
| 095-1625 |
SEAL - O - RING (ID=89.60mm)
|
3 | 684 |
| 4I-6262 |
ROTOR
|
1 | 684 |
| 4I-6263 |
ROTOR GP
|
1 | 684 |
| 8T-6759 |
PLUG
|
1 | 684 |
| 8T-4139 |
BOLT (L=30mm)
|
5 | 685 |
| 8T-4223 |
WASHER
|
5 | 685 |
| 7Y-4804 |
PLATE
|
1 | 685 |
| 1U-8846 |
GASKET MAKER (2ml)
|
1 | 685 |
| 7Y-4803 |
ROTOR 4I - 6263 Part of 159
|
1 | 685 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 498 |
| 8T-4121 |
WASHER
|
2 | 498 |
| 7Y-4817 |
COVER
|
1 | 498 |
| 095-1716 |
SEAL - O - RING (ID=109.40mm)
|
1 | 498 |
| 7I-7131 |
RETAINER
|
1 | 498 |
| 159-7782 |
SEAL
|
5 | 498 |
| 095-1625 |
SEAL - O - RING (ID=89.60mm)
|
3 | 498 |
| 4I-6262 |
ROTOR
|
1 | 498 |
| 4I-6263 |
ROTOR GP
|
1 | 498 |
| 8T-6759 |
PLUG
|
1 | 498 |
| 8T-4139 |
BOLT (L=30mm)
|
5 | 499 |
| 8T-4223 |
WASHER
|
5 | 499 |
| 7Y-4804 |
PLATE
|
1 | 499 |
| 1U-8846 |
GASKET MAKER (2ml)
|
1 | 499 |
| 7Y-4803 |
ROTOR 4I - 6263 Part of
|
1 | 499 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 638 |
| 8T-4121 |
WASHER
|
2 | 638 |
| 7Y-4817 |
COVER
|
1 | 638 |
| 095-1716 |
SEAL - O - RING (ID=109.40mm)
|
1 | 638 |
| 7I-7131 |
RETAINER
|
1 | 638 |
